KL150B Сертификация CE для семейного использования электрическая биомасса древесные опилки гранулятор/машина производства гранул цыплят

Описание и отзывы

Характеристики

Small Pellet Mill
Make your own fuel pellets at home!



1. This series machine can be powered by both diesel engine and e-motor.

2 .We adopt the new design of direct connection of motor shaft and he main shaft that overcome the loose defect of belt connecting as long time using.

3. High accuracy gearbox and high output.

4. It is widely used in large,middle, small scale aquatic. food and feed processing

 factory, livestock farm, poultry farm, individual raisers, middle and small farm.

5. International advance steam fittings and imported pressure reduction valve.

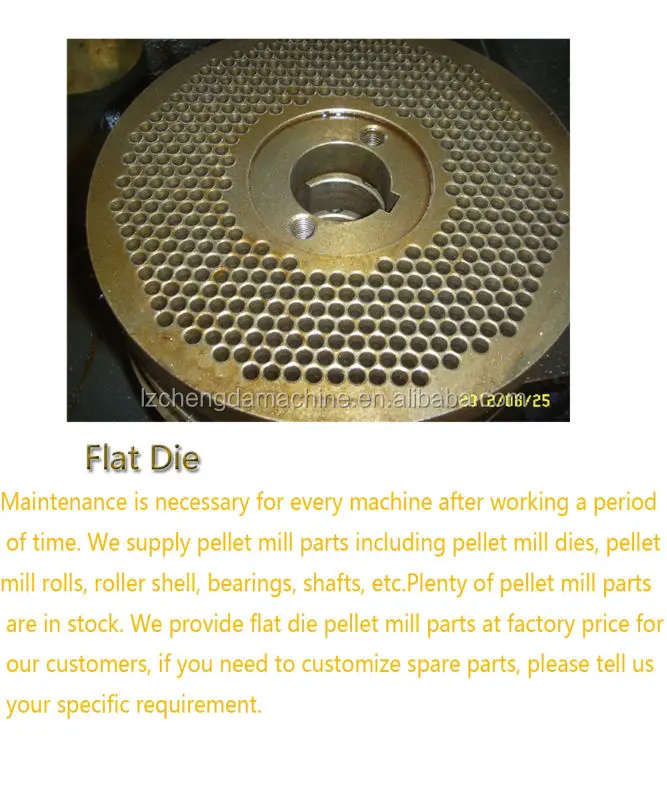

6. Flat die is made with international advanced equipment for long lifespan.

7. Drive with heavy duty gearbox, which can produce continuously in most

adverse condition.



Electric Flat Die Pellet Mill Features
1. Electric flat die pellet mill is driven by electric motor which makes it more energy-saving and environmentally friendly.

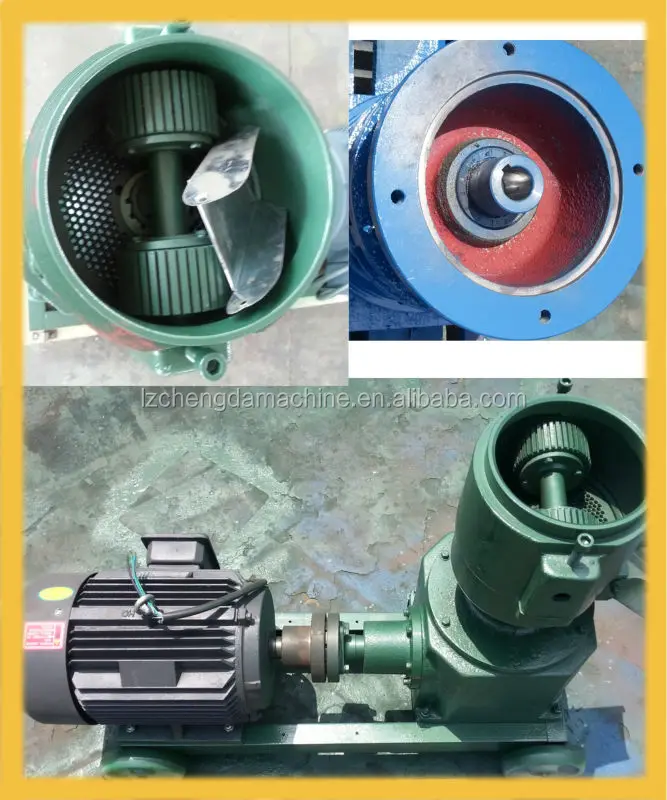

2. Roller and flat die are made from precise material of alloy metal which makes this core part wear-resistant and not easy to break, besides, both sides can use the flat die, thus having a long service life.
3. This pellet machine can also be customized with three rollers or two rollers.
4. Transmission gears are made of high quality alloy steel, surface adopts carburizing and quenching treatment, precision machining by grinding, smooth transmission, low noise, large carrying capacity, low temperature rise, long life etc.
5. Quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, able to change new die and rollers fast and conveniently according to your needs.





Model No.	Power(E-motor) 50HZ	Feed output	Wood output	N/G weight(kg)	Pellet diameter	Packing Size(cm)
KL120B	2.2kw220v 1phase	30-60	20-30	80/100	2.5-10mm	75*32*62
KL120B	3kw 380v 3phase	50-100	30-50	80/100	2.5-10mm	75*32*62
KL150B	4kw 380v 3phase	100-200	50-100	95/115	2.5-10mm	77*34*68
KL200B	7.5kw 380v 3phase	200-300	110-140	200/230	2.5-10mm	100*43*95
KL230B	11kw 380v 3phase	300-400	150-190	290/320	2.5-10mm	114*47*97
KL260B	15kw 380v 3phase	400-600	220-280	330/360	2.5-10mm	120*52*107
KL300B	22kw 380v 3phase	600-800	280-320	410/450	2.5-10mm	127*52*107



Model No.	Power(E-motor)	Feed output	Wood output	N/G weight(kg)	Pellet diameter	Packing Size(cm)

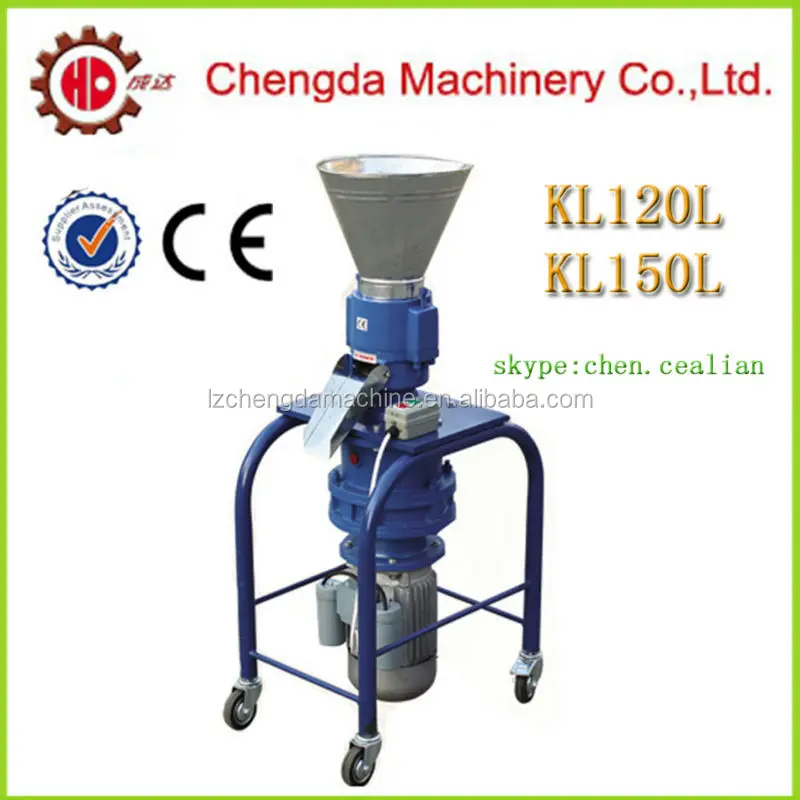

KL120L	3kw 380v 3phase	50-100	30-50	90/110	2.5-10mm	75*32*65
KL150L	4kw 380v 3phase	100-200	90-120	130/180	2.5-10mm	75*35*60







What is the terms of warranty and spare parts?

Our pellet mills are guaranteed with 1 year quality assurance from the date of goods shipment.



When we are talking about spare parts for a pellet mill, by and large, we are talking about die, roller and bearing. Practically, that how often you will need to renew spare parts is depending on what raw material you are making pellets from. Apparently, compared with making straw pellets, pellet mill that are making wood pellets requires a higher frequency for changing spare parts. We supply clients with high quality pellet mill dies, rollers, bearings and other parts. Clients are available to order at anytime. If you need spare parts, please contact me or test message.





Homemade Pellets Used as Stove Fuel

Home pellet stove is widely used in Europe and many other places in the world. It is an environment-friendly method to keep warm and cook. Pellet stove uses less natural resources as its fuel is generated from waste or recycled materials. The fuel it used can be made at home. Here are a few tips for you to spend less money making the stove fuel if you choose a pellet stove for heating.

You have to prepare raw materials along with a flat die pellet mill which is used to press the materials into the needed fuel for home. There are a wide variety of raw materials that you can use to make the fuel, such as fruit pits, different types of grass, corn cobs, barley star, shelled corn, wheat, paper, etc. Your choice of materials decides the heating or cooking effect, thus you need to look up the kind of stove to properly match the pellet fuel.

Do I have to go to your factory for atutorial of learing how to operate a pellet mill?







It's not necessary. As 7/24 email and phone call service is available, I am ready to answer your any specific questions regarding to our machinery and pellet mill in particular. In addition, we prepare the teaching videos in terms of installation, lubrication, trial running, parts replacements and so forth.
