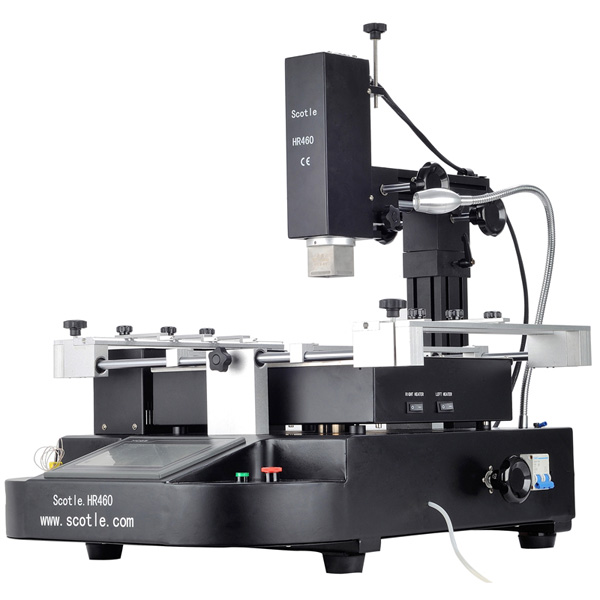

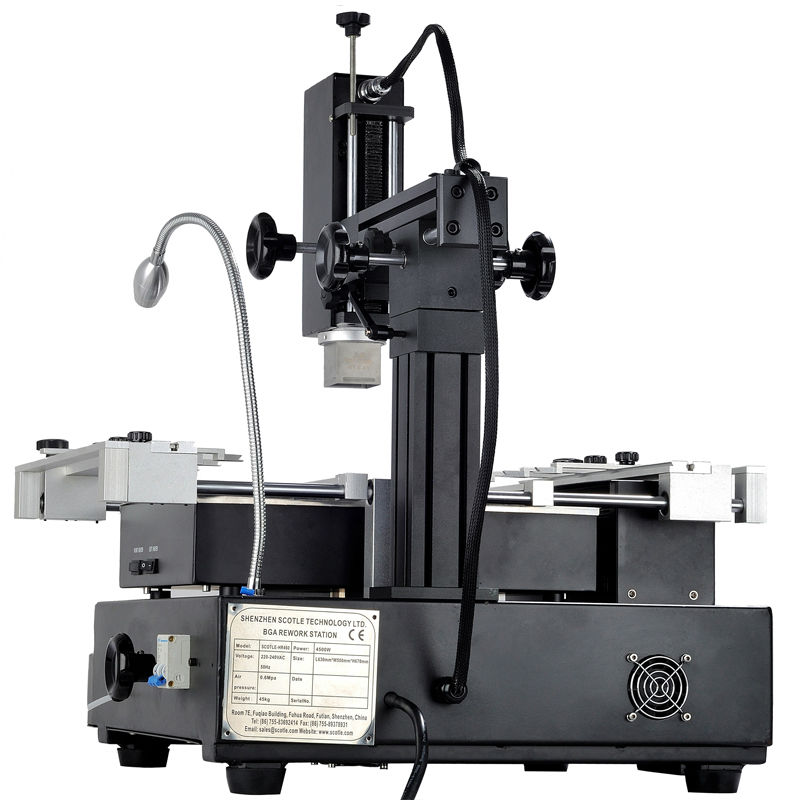

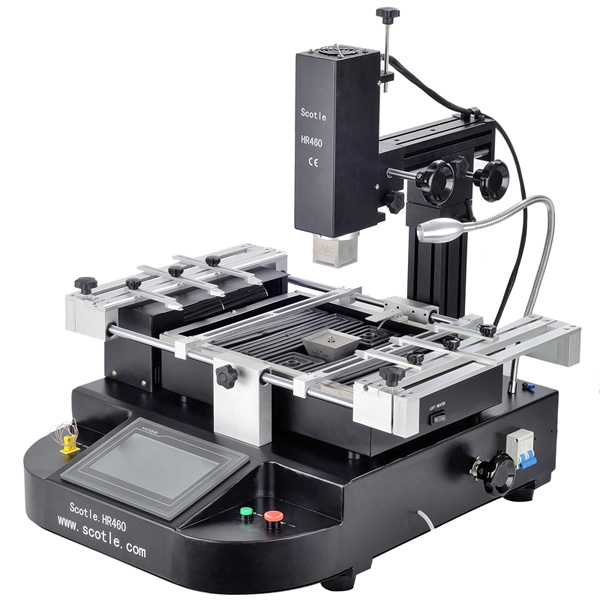

Scotle-hr 460 best led surface mount soldering station sales!
Scotle HR 460 hot air soldering station parameters:
| Total power | 4800W |
| Top heater | 800W |
| Bottom heater | 2nd heater 1200W,3rd IR heater 2700W |
| Voltage | AC 220V±10% 50/60Hz |
| Machine dimension | 635x600x560mm |
| Positioning | V-groove, PCB support can be adjusted in any direction with exernal universal fixture |
| Temperature control | K Type temperature Sensor and Closed loop |
| Temperature accuracy | ±2°C |
| PCB size | Max 500x400mm, Min 22x22mm |
| BGA chip | 2x2-80x80mm |
| Minimum chip | 0.15mm |
| Net weight | 42kg |
Highlights of Scotle hr460 hot air BGA rework station:
1) 3 temperature zones, more precise
2) It comes with 7" touch screen control panel, no need to connect it with a computer monitor.
3) Be installed with MCGS systerm, more convenient for setting parameters, operating and controlling the machine
4) It's strictly tested by Quality Inspection Institution and CE approved.
5) Original from scotle factory.
6) Sufficient stock in China /UK/Germany warehouse to gurantee fast delivery.
PS: Shipping from UK/Germany warehouse, free customs taxes&duties.
What can Scotle hr460 hot air BGA rework station be used for ?
1) For repairing Mobile phones
2) For repairing Notebooks/ Laptops/computers
3) For repairing game consoles, especially for XBOX360/PS3/WII
4) For repairing any other mainboards with size from 22x22mm to 500x400mm
5) For preheating chips or mainboards before soldering to improve rework efficiency.

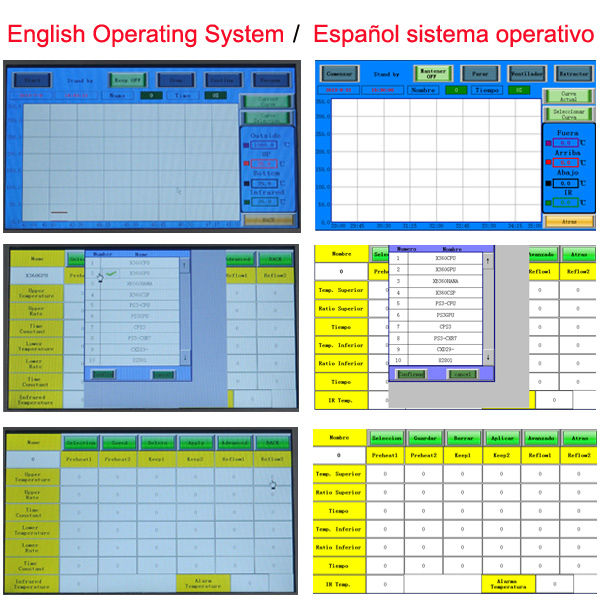

We have English And Spanish Operating Systerm Software For your Choices.
Packaging & Shipping
Packaging
Packaging material: wooden case
Packaging size and weight: 79x72x38cm/52kg
Shipping
A. 3-8 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK & Germany Warehouse to European union countries.No need to pay for customs duties and VAT.
C. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
Our Services
1.We provide you the friendly English User manual for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of this machine.
5.Videos of operating the machine are available.
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
Company Information
Scotle is located in Shenzhen, China.
Our factory owns 2 brands , scotle and achi.
We has 7 years experiences in manufacturing and exporting BGA rework stations.
Our BGA rework stations , such as scotle hr460, scotle ir 6000, scotle ir pro sc, scotle ir360 pro, scotle sv550c, achi ir 12000, achi ir pro sc, achi ir6500 are hot sale in the world, especially in these countries from North and South American,European and Asian.
Company And Our Customers Show
Certifications And Business Licences
Business opportunities are everywhere !
We want you to be our overseas distributors / agents !
