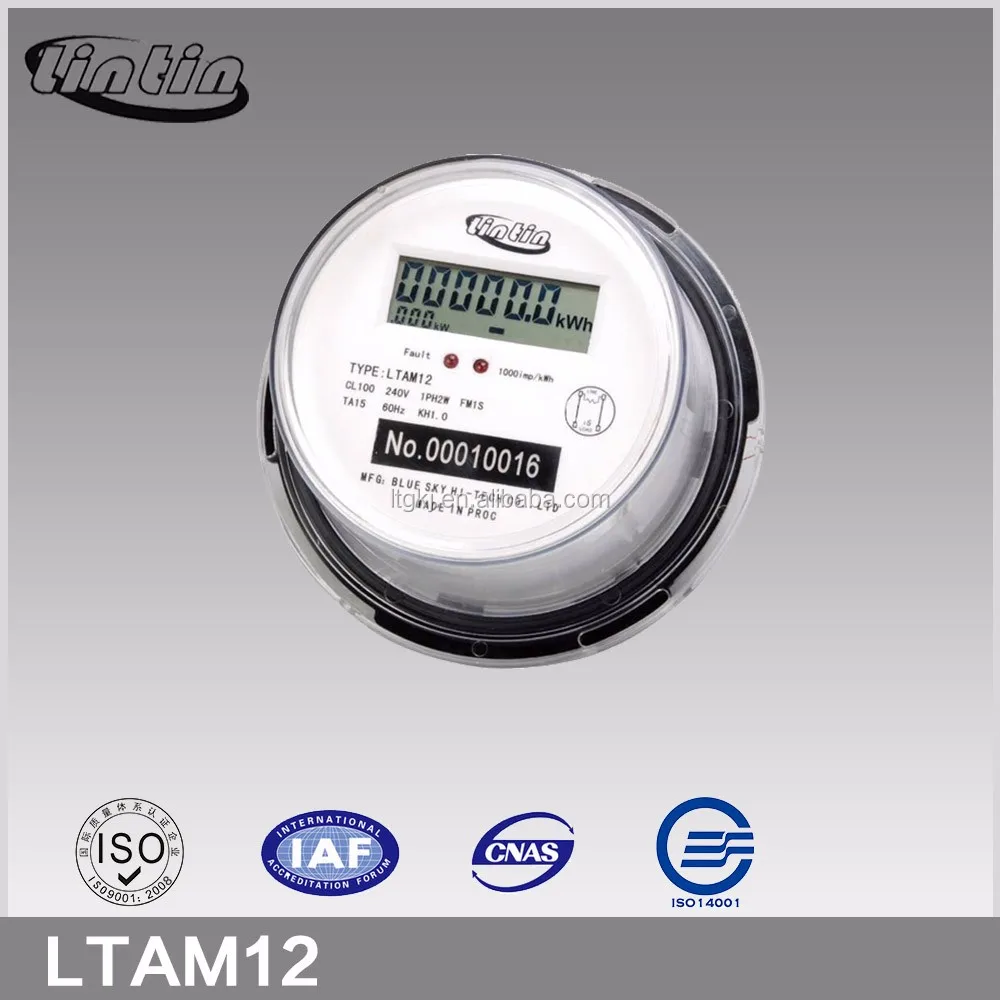

Single phase three wire ANSI 2S bi-directional PLC Communication energy meter /kWh meter



2.Profile& Installation Size:



3.Product Features:

* Single and Multi-rate options
* Optical IEC 1107 Flag Port (optional)
* Active Energy and Maximum Demand (optional) measurement
* Reverse Energy Register (separately record or add to forward register as

required)
* Fraud Protection
* Compact size and weight
*Display remains operative in the event of supply failure (optional)



a. Product Highlights
This meter can be supplied with a large digit LCD or a Cyclometer



Register.  The use of innovative metering technology provides high



security and ensures the meter maintains its accuracy over its full



operating range.
b. Meter Case
Meter cover is made of self-extinguishing recyclable polycarbonate.It has



double insulation and has IP53 protection against dust and water



penetration.  The meter base is made of high quality bakelite.
c. LED Indicator
A high light LED is mounted on the front of the meter, pulsing at a rate



proportional to the measured load. The pulse  is identified on the meter



cover. The pulse can be used for checking calibration of the meter.
d. Communication
The meter has an optical interface based upon IEC 1107 protocol. The user



can program meter parameters or download recording data through this optic



port. Optional built-in RS-485 or RS-232 port for accessing to AMR system.
e. Reverse Energy
Reverse Energy is detected if export energy greater than the meters



starting threshold is measured. If reverse energy is detected, the alarm



flag will display on the LCD.  The meter will register the reverse



enenergy. (Unidirectional meter measuring energy).



4.Technical Specifications:

a. Applied StandardsANSI C12.10, IEC 62053
b. Typical Accuracy 0.5; 1.0
c. Meter Form1S, 2S, 12S
d. Meter ClassClass 100, Class 200
e. Starting CurrentLess than 5 W
f. Nominal Voltage (Un)120, 120/240, 120/208 V
g. Voltage Range0.87Un to 1.2Un
h. Frequency50/60 Hz
i. Operating Temperature Range-25'C to +60'C
j. Storing Temperature Range-30'C to +70'C
k. Current Circuit burden<0.3 VA
l. Voltage Circuit burden<0.8 W / 3.5 VA
m. Dielectric Strength4 kV, 50 Hz, 1 min.
n. Impulse Voltage6 kV, 1.2 / 50 μs
o. Short-circuit Current30 I max
p. Burst Test 4 kV (IEC 801+4)



COMMUNICATION: It supports RS485,RS232, Far Infrared, PLC, RF, WIFI.



The above information is for your reference,we customize watt hour meter according to your requirements.

We Specialize in Making Energy Meter.



5.Hot sale ( Click it to get more information)

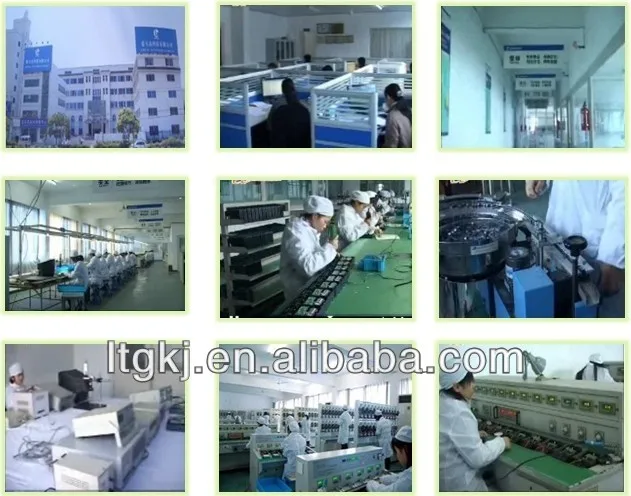

6.Company Profile:
