100 мм 10k линейный скользящий

Описание и отзывы

Характеристики

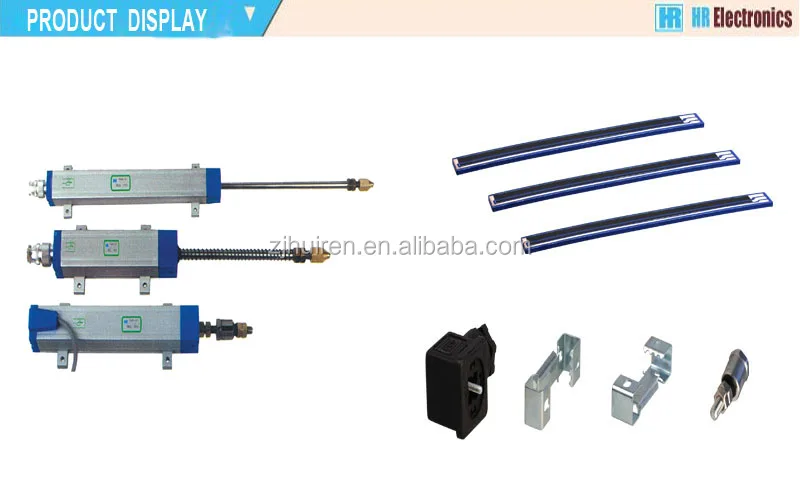

HR linear position sensors are designed for precise measurement of displacement and length. The Measuring range is up to 650mm with repeatability of ±0.01mm and linearity of  0.05% .Its structure is designed for simple installation and reliable work. Anodized aluminium housing can contribute to nice appearance and super corrosion resistance. By adopting conductive plastic track inside ,the product could run smoothly and have low-noise output signals.



Specification:



Electrical:
Standard Resistance	5K Ω  ,  10K Ω
Resistance Tolerance	±15%
Independent Linearity	0.1% , 0.2% , 0.3% , 0.5% , 1.0%
Electrical Travel	50mm-650mm
Power Rating	0.04W/cm (70°C)
Resist. Temperature Coefficient Of Wire	≤±0.04%/°C
Insulation Resistance	≥1000MΩ(500VD.C)
Dielectric Strength	1000V(AC.RMS)1min
Output Smoothness	≤±0.10%
Mechanical:

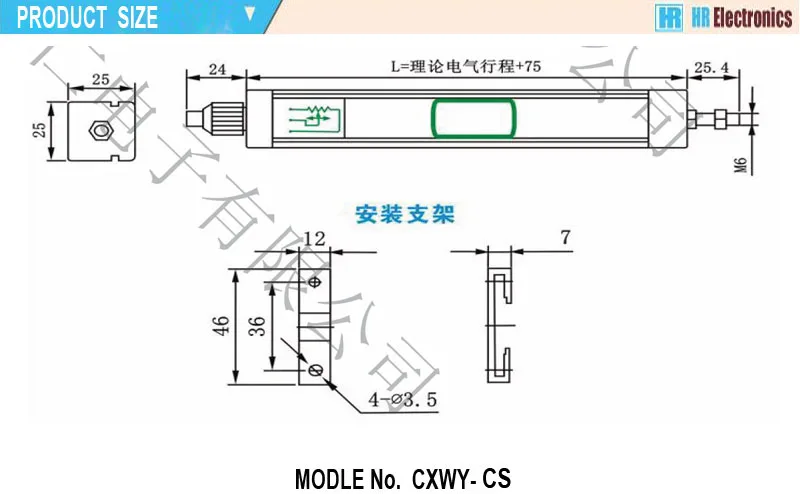

Mechanical Travel	Theoretical electrical stroke+8mm±2mm
Work Force	≤7.2N
Environmental:
Life Expectancy	20×10E6
Operating Temperature	-55°C~ +125°C
Vibration	15G 2000Hz
Shock	50G 11ms













...
