TEP1-Series Thermoelectric Power Generation Module

TEP1-Series  Thermoelectric Power Generation Module



>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>      The power module is designed and manufactured by our unique technology for converting heat source directly into electricity. The module is Bi-Te based thermoelectric module that can work at the temperature of as high as 330℃(626°F)heat source continuously and up to 400℃(752°F) intermittently. The thermoelectric module will generate DC electricity as long as there is a temperature difference across the module. The more power will be generated when the temperature difference across the module becomes larger, and the efficiency of converting heat energy into electricity will increase therefore. The module is stuck with the high thermal conductivity graphite sheet on its both sides of the ceramic plates to provide low contact thermal resistance, hence you do not need to apply thermal grease or other heat transfer compound when you install the module. The graphite sheet can work well in extremely high temperature .

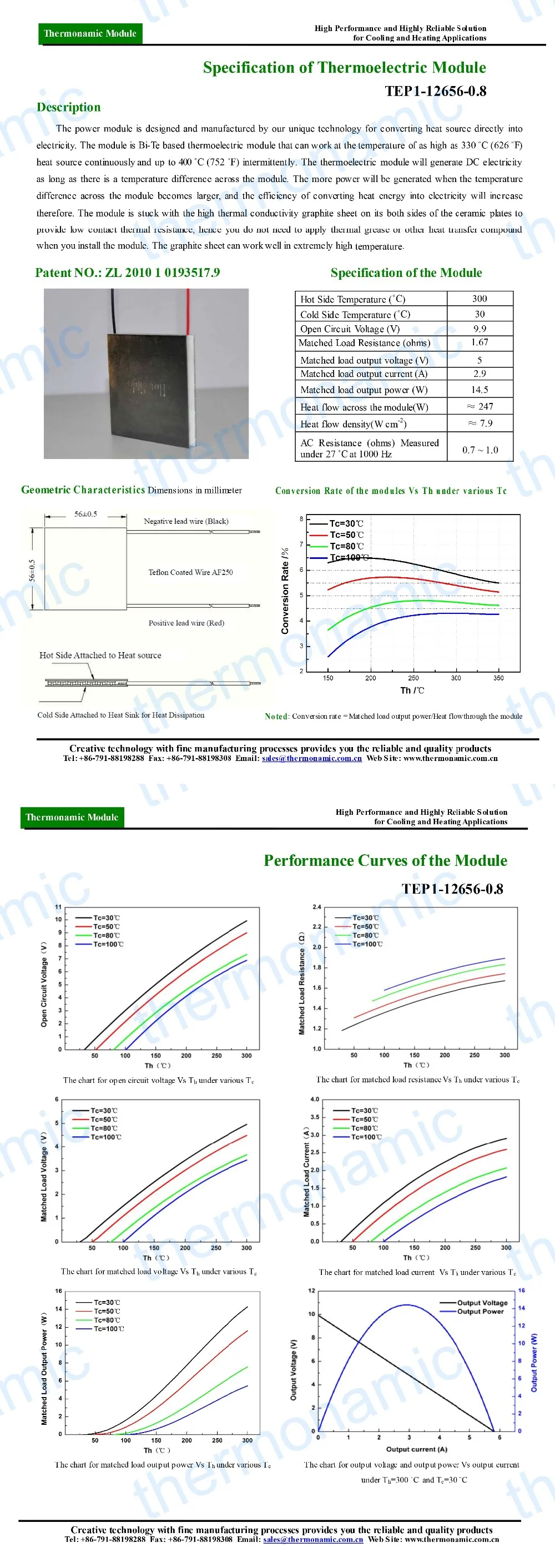

Performance Specification Sheet

Application

1.Living waste heat

2.Industrial waste heat

3.Aerospace industry

4.Oceanic thermal electricity conversionSolar power generation

5.Solar power generation

6.Exhaust gas of vehicles
