 | ♦Barrier-Free Lift Platform This product breaks throug the ransmission mode of the traditional lift and adopts more safe,more efficient and structure-compact screw transimission technology,making product performance better and structure more compact.Application of modeling installation structure design saves installation time greatly and makes maintenance easier. This product has passed CE Certificate and is very popular among customers at home and abroad. |
- Basic specification
Type | OTLF | |
load | 400kg | 250kg |
Rated speed | ≤0.15m/s | ≤0.15m/s |
Rise | 9m | 9m |
Max stops | 4 Stops | 4 Stops |
Rated load | 5 persons | 3 persons |
Hoistway size | 1500mm*1600mm | 1400mm*1450mm |
Door open size | 900mm*2000mm | 800mm*2000mm |
Platform size | 900mm*1420mm | 800mm*1270mm |
Main control panel | CPM2B | CPM2B |
Driving device | Inverter | |
Traction machine | Three-phase asynchronous machine | |
Power supply | 220v/2 phase/20Hz (different voltage can use transformer) | |
Door open type | Single open door/automatic one is optional | |
Door type | Manual open door/ automatic one is optional | |
- Advantages compared with tractional lift
1. Cost is 20%~40% lower than that of traditional lift
2. It takes one week for installation.
3. It is unnecessary for hoist way construction
4. Hoist way space is 1.5*1.6, unnecessary for hoist way and machine room.
5. Aluminum alloy glass hoist way ,with the effect of sightseeing lift
6. Its screw and nut have self-locking function
7. It is widely used in drawing without reserved pit, hoist way and
machine room. It is more suitable for the installed drawing withoutd
reserved pit, hoist way and machine room ,drawing with reserved hoist way
itself may also be installed.
8. Pit is only 50mm, uncessary to dig for pit

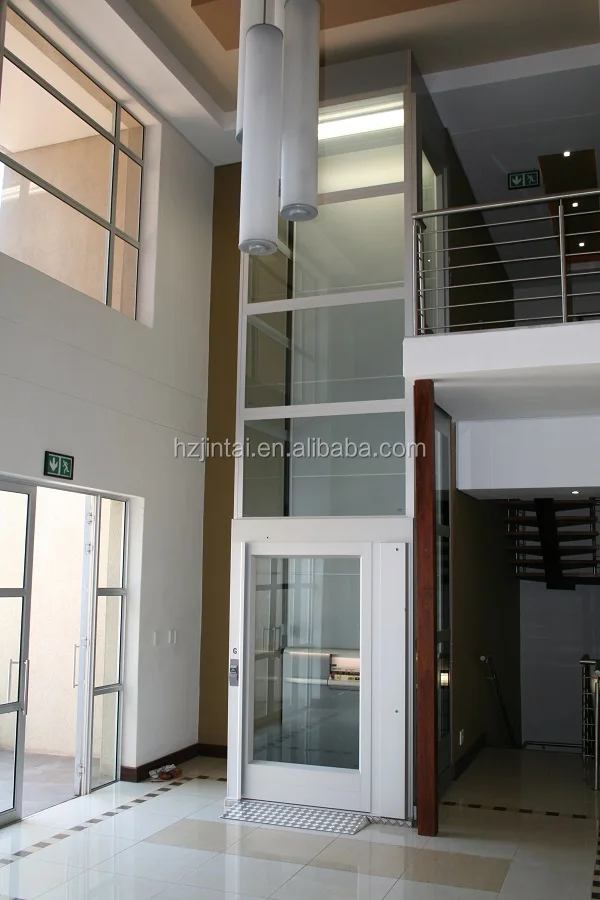

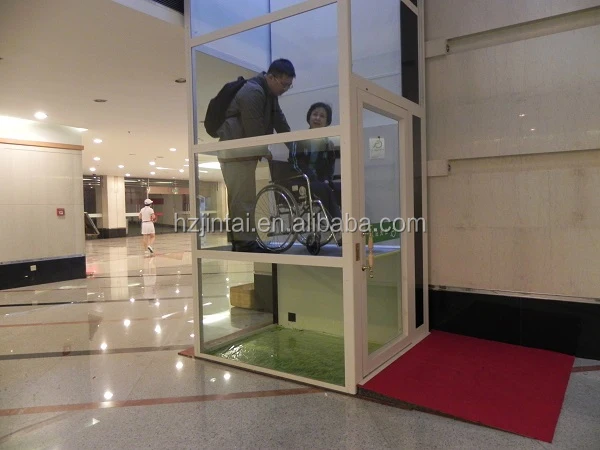

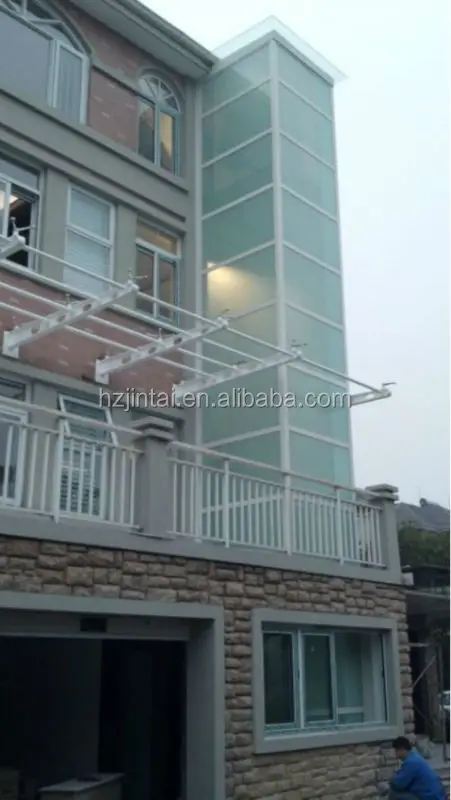

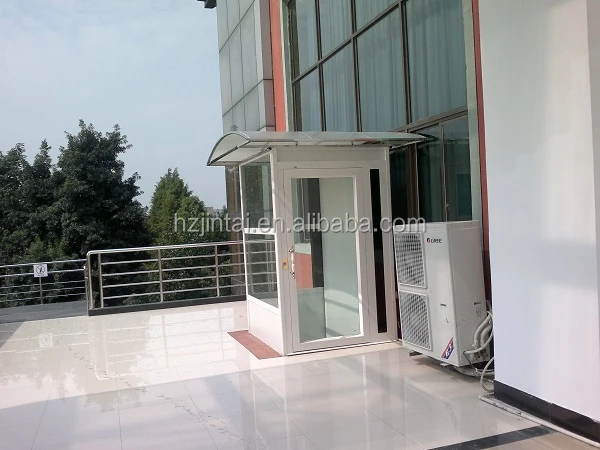

- Photos of screw elevator and project case
- Certification
Any need,feel free to contact me
