Модуль термоэлектрического поколения серии TEP для источника тепла

Описание и отзывы

Характеристики

Description:



TEP Series is the Bismuth Telluride based thermoelectric modules for converting heat into electricity. It is designed to optimize its performance for around 200C heat source.



The power module is designed and manufactured by our patented technology for converting heat source directly into electricity. The module is Bi-Te based thermoelectric module that can work at the temperature of as high as 330 °C (626 ℉) heat source continuously, and up to 400°C(752℉)intermittently. The thermoelectric module will generate DC electricity as long as there is a temperature difference across the module. The more power will be generated when the temperature difference across the module becomes larger, and the efficiency of converting heat energy into electricity will increase therefore. The module is stuck with the high thermal conductivity graphite sheet on its both sides of the ceramic plates to provide low contact thermal resistance, hence you do not need to apply thermal grease or other heat transfer compound when you install the module. The graphite sheet can work well in extremely high temperature.

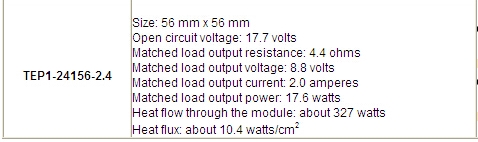

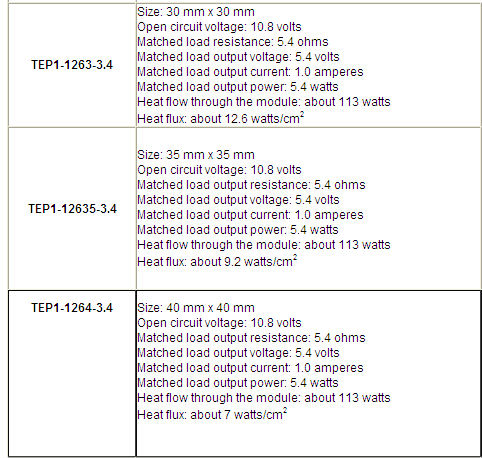

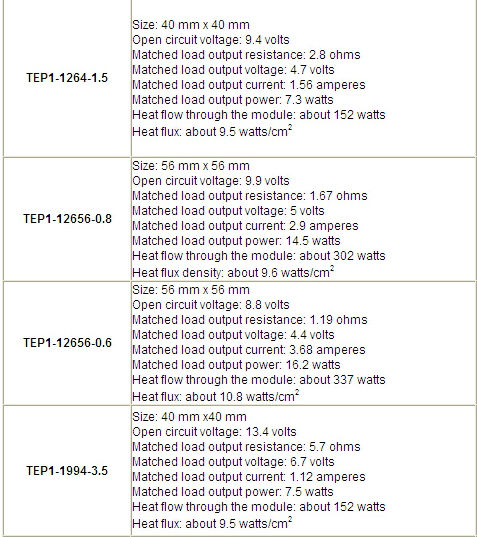

For the specification sheets and performance curve of modules, please refer to our web site: http://www.thermonamic.com//pro_view.asp?id=802
