Высокоскоростная машина для наполнения и запечатывания ампул AGL8 1 мл 2 5 10 15 20 различных

Описание и отзывы

Характеристики

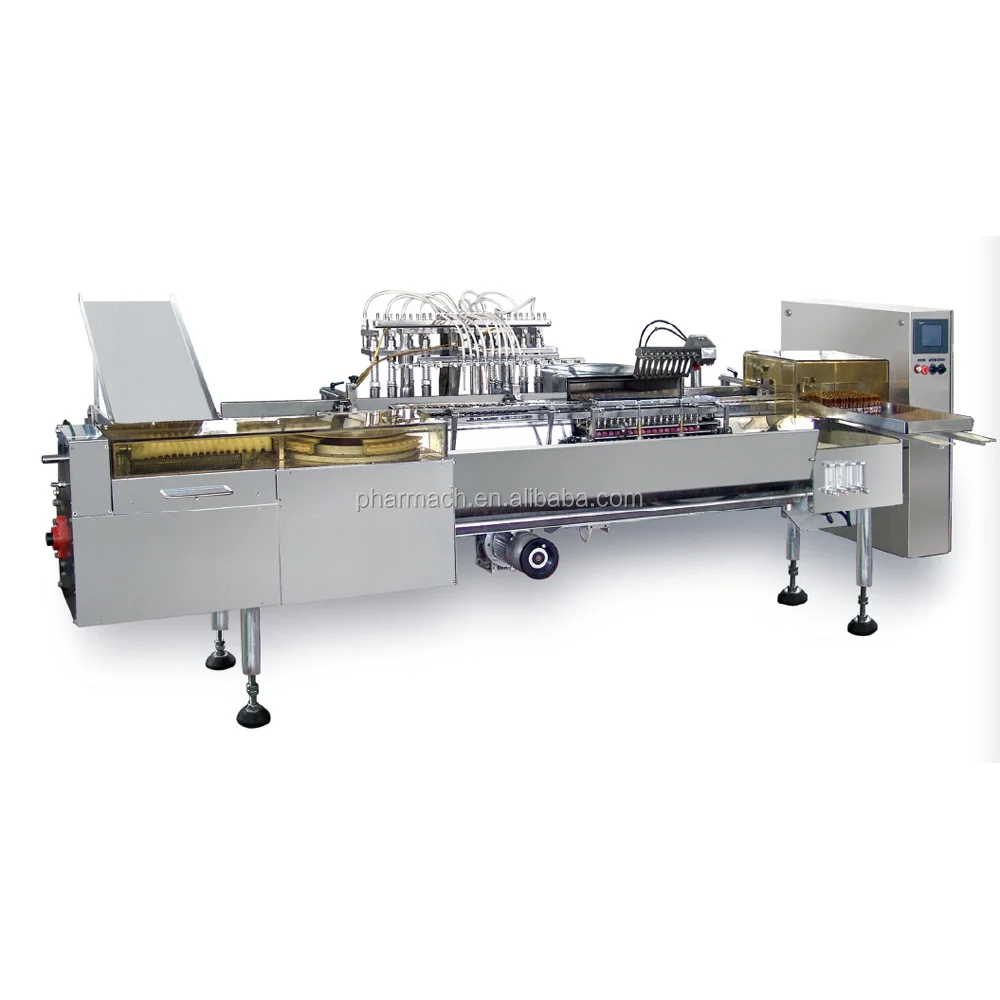

AGFA8 Ampoule Filling and Sealing Machine





1. Main technical specifications

Model number		AGFA8
number		8

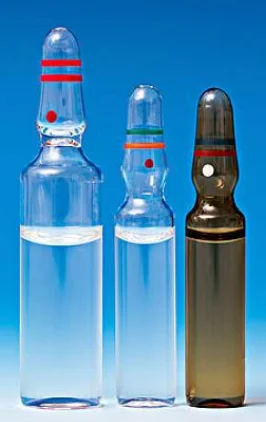

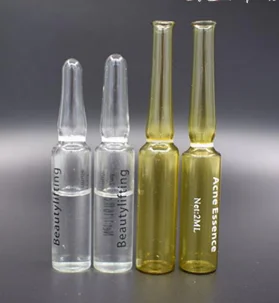

Ampoule
Production capability	1,2ml	24000 pcs/h
	5ml	18000 pcs/h
	10ml	12000 pcs/h
	20ml	7000 pcs/h
rated production capability		above production capability
loading accuracy		± 2%
percent of pass		≥ 98%
Power consumption		2.4kw;(Ac 380V/50Hz)
Nitrogen consumption		2 m3/h
Fuel gas	City gas	2 m3/h
Consumption	LPG	0.4 m3/h
Oxygen	Use City gas	1.2 m3/h
Consumption	Use LPG	1.7 m3/h
Suction requirement		0.6m/s
Number of operators		2people
External dimension: L×W×H(mm)		3600×2100×2450
Net weight (kg)		2500



2. Introduction :

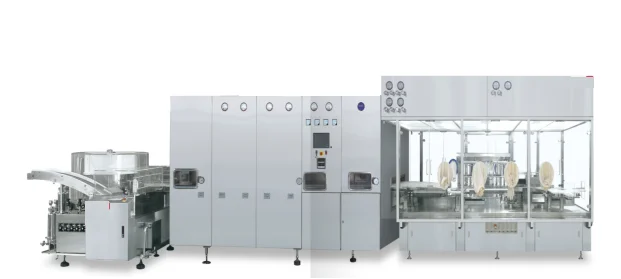

This linked production line uses ultrasonic wave washing, water and air spray washing alternately, hot air laminar dry and sterilize, multiple needle filling, multiple head adding stopper advanced technologies. The whole machine is under PLC control, it can be linked controlled, and it can be operated with single machine. The working state of each position can be automatically supervised, and it is displayed by light pole, or by man-machine interface. In the clean room, detector may be mounted for site supervision, and automation control level is high. This machine has PC automatic checking function, once the machine is failed, it can shutdown the machine immediately and display the failure position and dis-play trouble shooting for easy repair. The vertical ultrasonic wave washing machine is designed with over-load protection device, once the main shaft is over-load, it will shut down the machine immediately. On the washing control cabinet, there are lights feedback the working states of the filling machine and visual talking, or man-machine interface display and control. The operator can know the working state in the cleaning room at any time. The table of the filling machine is step type for easy washing, it has optional peristaltic pump, glass pump and ceramic piston pump for customer to choose. The application of the servo motor driving, PLC,frequency converting speed regulation and the technology coordinating each functional mold with servo motor makes the control system reach the world advanced level. The control operation can also provide visual talking device according to customer requirement. The global qualified rate can reach to above 98%.





Machine structure
