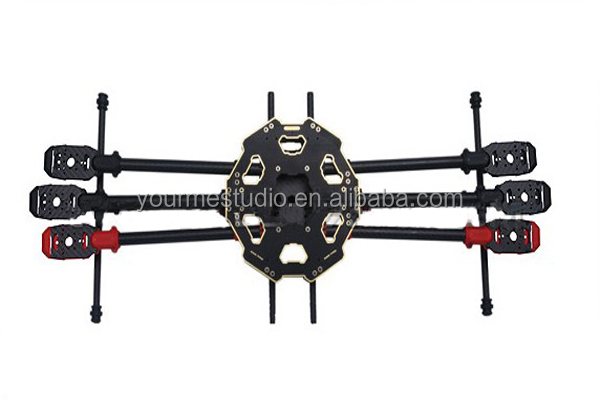

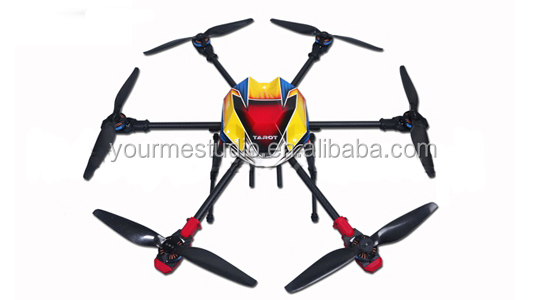

TAROT 680PRO Foldable Hexacopter Frame Kit TL68P00 Six-axis Aircraft Frame Kit FPV ,tarot frame kit



























Product Description:

TAROT 680PRO six-axle vehicle chassis 680 series rack replacement, TAROT innovation designed by the company, with a number of patented technologies. TAROT 680PRO has a folding convenient, lower center of gravity, more stable large installation space optimization design, exterior design has a strong impact perspective.

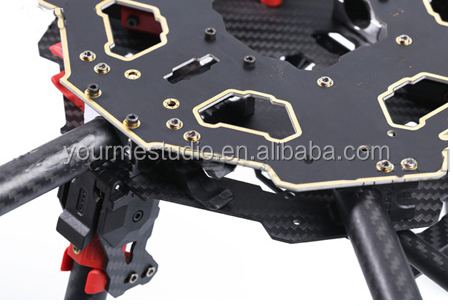

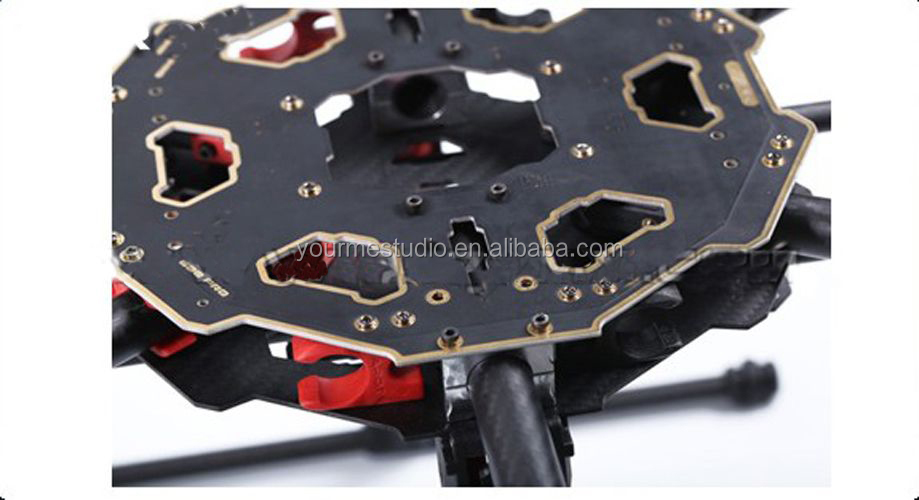

     High-strength body with matte gold craft complex PCB circuit board to connect the power supply PCB integrated, more efficient power transfer and other connections, security, provide adequate space for the installation of various flight control systems. 3K uses Toray carbon fiber hollow tubes of pure carbon fiber (non-3K glassy carbon tubes) full CNC machining. Design standards higher than similar products. The new carbon nanotube folding seat widened 16MM 3-point support, to prevent cracking break affect the use, increase the contact surface and the carbon plate, new non-slip design better locking carbon nanotubes.
     The new carbon nanotube fixed sets of imported nylon and fiber reinforced materials, and down the ladder using M2.5 screws tightened its M3.2 diameter contact surface allows the PCB and arm securely connected. The new self-designed folding tripod overall safety locking device to prevent the impact caused by contraction of the tripod, causing damage to the aircraft as a whole. New motor Brushless ESC installed new seat position, harness protection card, clip-on design for easy adjustment motor base level. Overall design eye-catching two-tone color has a strong impact on the effect of perspective, provide good visual direction for the body in the air.
     TAROT 680PRO six-axle vehicle chassis for portable users require high design, particularly suited to do surveillance, remote sensing, mapping, airborne reconnaissance, fire observation, life exploration, cable transmission line, the farm monitoring, and other high performance requirements for mobile, equipment load and requires little longer endurance of application areas blank.

Products found:
GO carries PTZ, wireless image transmission, such as load, total weight 2.76KG, hover actual flight time 14.5MIN.
"Read detailed specifications Accessories Help"
Configuration specifications:
Wheelbase diameter 695MM
Rotor size :12-13 inch carbon fiber propeller TL2829
Brushless motor: 4S/620KV4006 brushless motor TL68P02
Battery: 14.8V 4000-5000MHA
:20-30A Brushless ESC

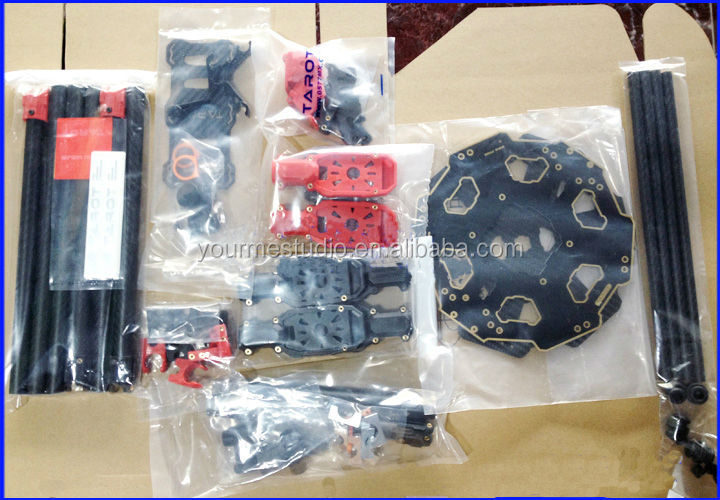

Accessories Reference Number:
500 dedicated field bag / black - Enhanced TL2647
T Series 1355 high-end carbon fiber paddle TL2829 pros
680PRO six-axis folding center plate group TL68P01
4006/620KV multi-axis brushless motor TL68P02
680PRO hanging under the battery holder TL68P03
Φ16MM 3K matte pattern of pure carbon tube (275MM) TL68P04
Φ16MM 3K folding machine arm pure carbon tube (262MM) TL68P05
Φ16MM 3K folding tripod pure carbon tube (185MM) TL68P06
680PRO carbon fiber pattern hood TL2851
680PRO Symphony paragraph hood TL2853
680PRO flag shall hood TL2852

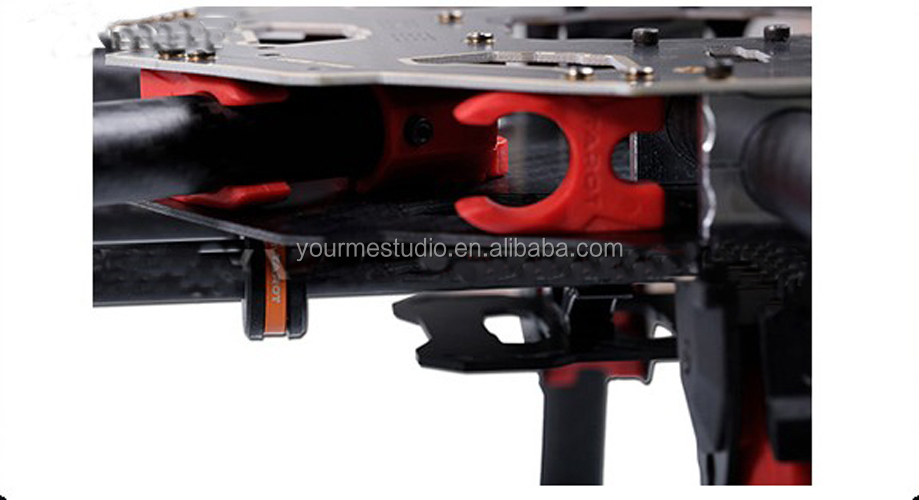

16MM carbon tube folding seat positioning group / red TL68B28
16MM carbon tube folding seat positioning group / Black TL68B27

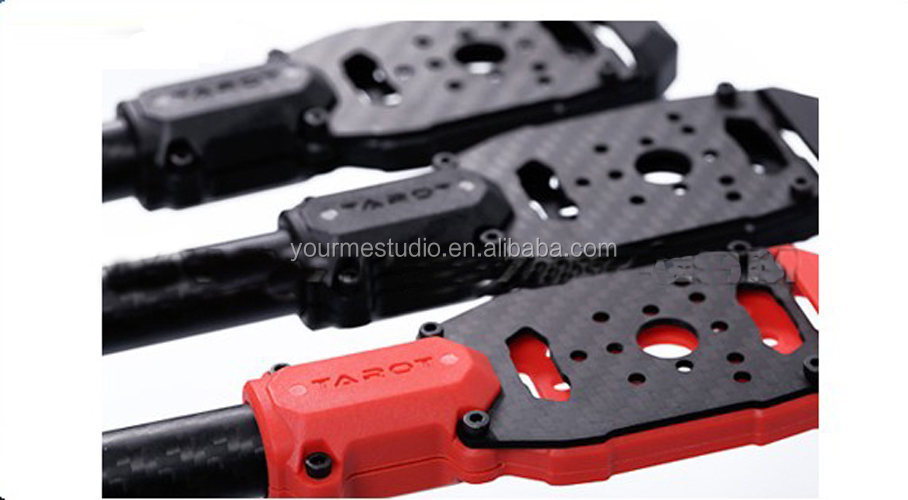

Φ16MM clamp-type motor mount / red TL68B26
Φ16MM clamp-type motor mount / Black TL68B25
685PRO tripod folding seat / red TL68B23
685PRO tripod folding seat / black TL68B24
Φ10MM 3K matte pattern of pure carbon tube (280MM) TL68B22
Φ16 folding tripod T-Block TL68B16
Φ16MM Carbon GPS mounts TL68B13
16MM carbon seat tube clamp metal group TL68B05
M10 metal silicone damping Seat TL68B10
M2.5 screws TL2778-01 ladder
GPS folding bracket TL15T08
NW: 0.81KG
Total weight: 1.05KG
