Mini track loader, crawler mini loader

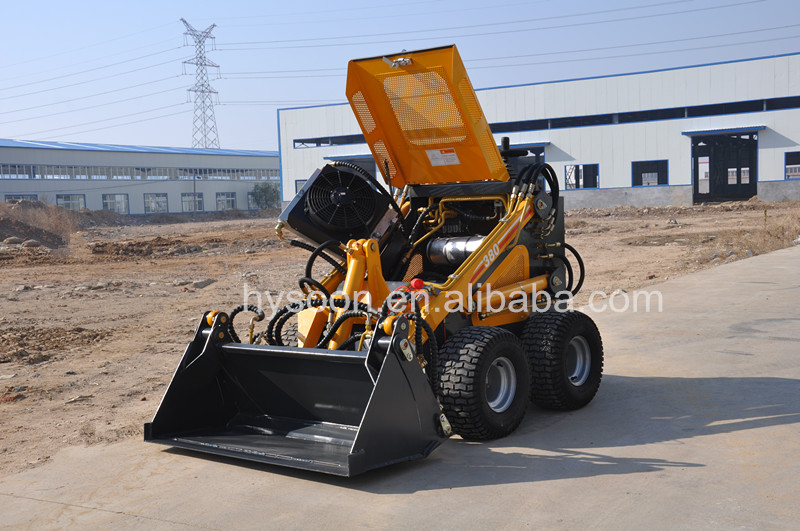

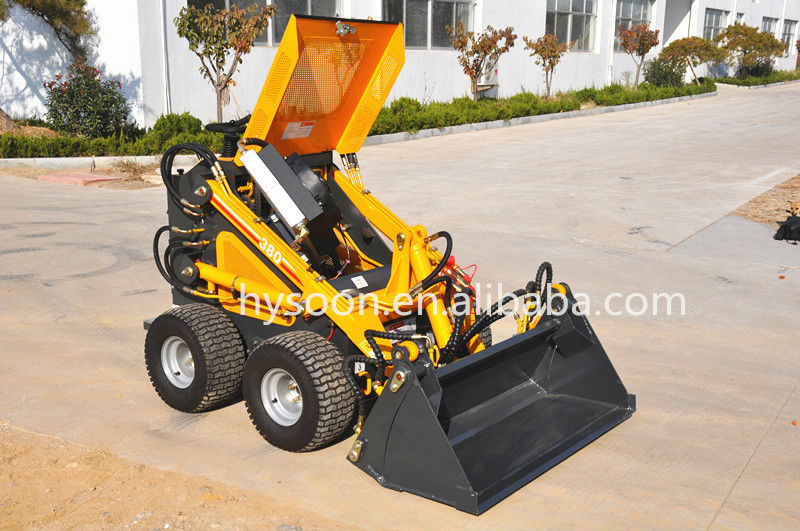

Mini skid steer loader is a versatile construction and garden machine, compact body, easy to handle, they can link with different attachments for a variety of job need, widely used in gardens, manufacturing, construction sites, recycling, garden, other industries roads, buildings, farms and so on. Mini wheeled loader and mini track loader for optional.

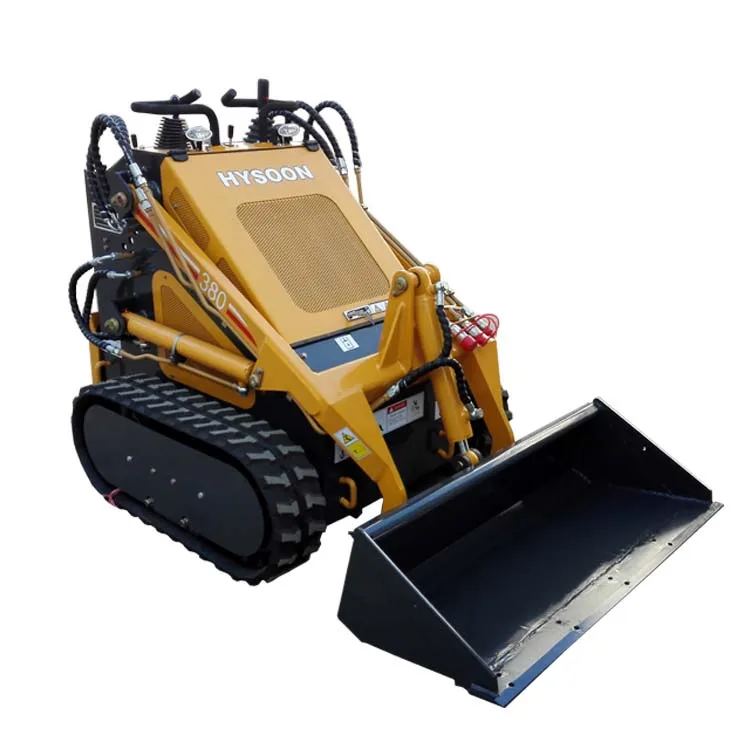

Items	Hysoon Mini track skid steer loader HY380
	Track type
	Metric	U.S

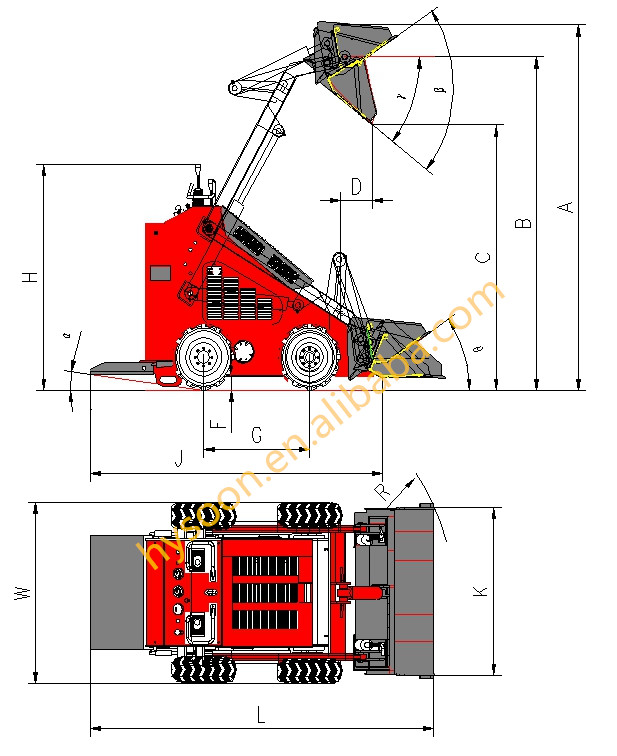

Max Pin Height(B)	1869mm	83.8nch
Max Working Height(A)	2128mm	73.6inch
Max Dump Height(C)	1473mm	58.0inch
Max Dump Distance(D)	399mm	15.7inch
Total Height(H)	1218mm	48.0inch
Overall Length (L)	2206mm	86.9inch
Overall Length without bucket(J)	1752mm	69.0inch
Bucket Width(K)	1150mm	45.28inch
Total Width(W)	1060mm	41.76inch
Ground Clearance(F)	105mm	4.1inch
Wheel Base(G)	612mm	24.1inch
Departure Angle(α)	10°	10°
Max Dumping Angle (γ)	30°	30°
Rollback of bucket on ground(θ)	25°	25°
Turn Radius forward turning(R)	1317	51.9inch
Engine
Rated Power (KW)	17.1KW
Rotating Speed	3600rpm
Noise(Dd)	≤95
Hydraulic System
Pressure	17Mpa
Working Time(s)
Raise	4.27
Dump	1.34
Lower	3.31
Operating Load	200kg	441Lb
Bucket Capacity	0.15m³	5.33ft³
Max Lifting Force	375kg	827Lb
Travel Speed	0-5.5km/h	0-3.4 mile/h
Operating Weight	890kg	1958lb

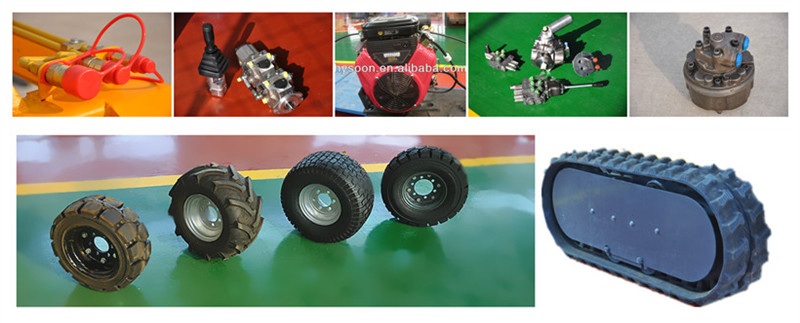

Parts: Gear pump and imported Italy multi-way valve. Piston motor, steady.

Tires: Engineer tires. For optional: solid tires, grass tires, crawler

Optional configuration: Italian piston pump.(joystick)

2. Operation:

Two handles to achieve operation of working, lifting and dumping.

4 wheels drive, suitable for various environment.

Safe pedal, stand operating way.

360° steering. Flexible and operating easily.

Compact design can for any small space working.

Quick hitch system makes fastening attachments quickly and eaily.

A loader serves several functions. HY380 mini track skid steer loader can with various attachment for different working need.
Compare with same kind of products, HY380 mini track skid steer loaders for sale are with higher lifting height.

3. Easy maintenance

Easy to put oil and replace Air filter, filter, spark plug, etc.

Back shrouds can be took easily, parts can be checked by opening  upper canopy.

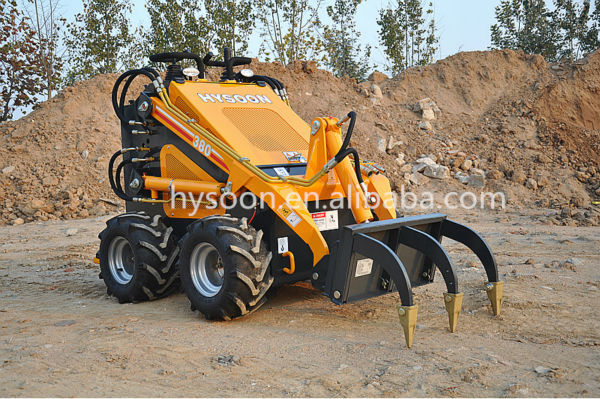

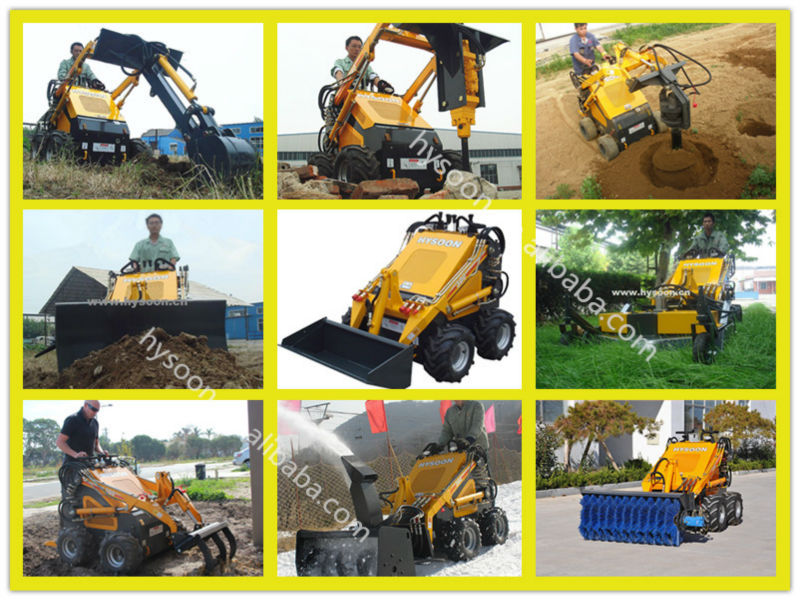

A loader serves several purposes.With a quick hitch system, the HY380 mini track skid steer loader for sale can change various attachments for different function quickly and easily. Attachments: backhoe, digger, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker, 4 in 1 bucket,snow blower, leveler, lawn aerator, trench filler, trencher, grapple, auger, stone bucket, anger levers, standard bucket, trailer system, and so on.




Taian Hysoon Machinery Co.,Ltd





1	Chinese professional skid steer loader manufacturer.
2	Direct factory price. Offer you the product with the high cost performance.
3	Good quality: Original products and OEM services, with all needed certifications.
4	Independent of the design team, professional production team, 15 technical patents. Acce
5	Responsible, in good faith. To guarantee Delivery.
6	Four series of products: MIni skid steer loader, skid steer loader, mini wheel loader and mini dumper
