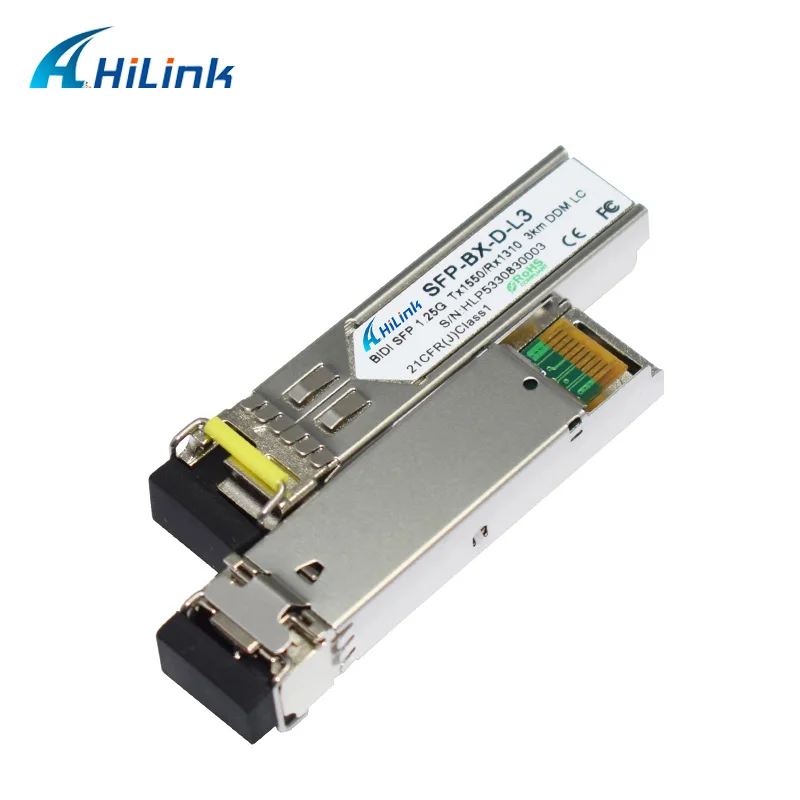

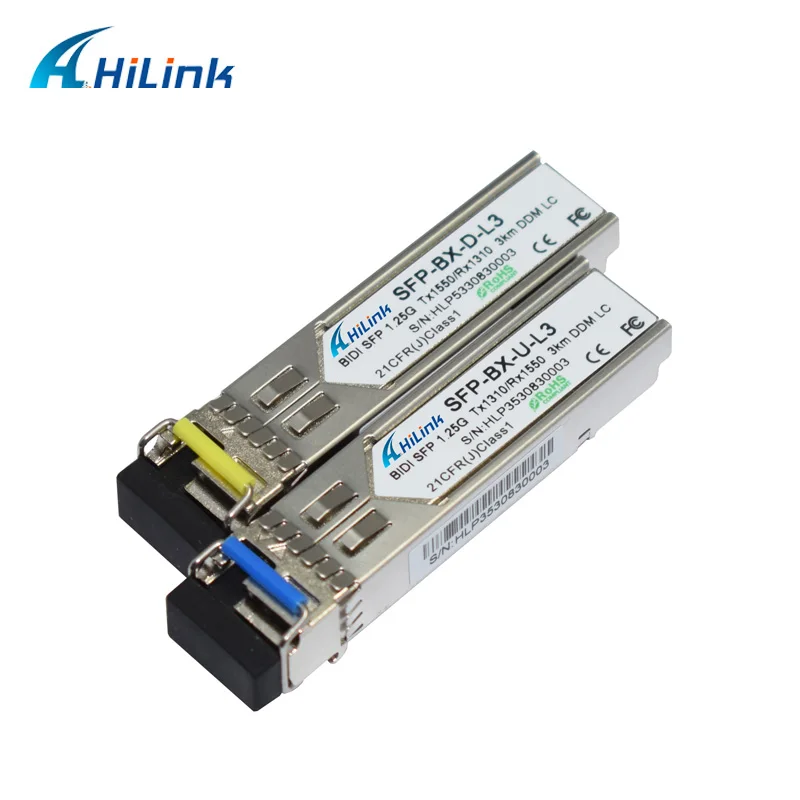

Mini GBIC SFP 1.25G BIDI 3KM Conector LC



Features

Data rate: From 155Mbps, 622Mbps, 1.25Gb/s, 2.5Gb/s, 4.25Gb/s and 10Gb/s
Distance up to 120km
Simplex SC or LC optical  acceptable

A Type: Tx1310nm /Rx1490nm and Tx1490nm /Rx1310nm
B.Type: Tx1310nm /Rx1550nm and Tx1550nm /Rx1310nm
C.Type: Tx1490nm /Rx1550nm and Tx1550nm /Rx1490nm
D.Type: Tx1510nm /Rx1570nm and Tx1570nm /Rx1510nm

E.Type: Tx1270nm/Rx1330nm and Tx1330nm/Rx1270nm



Product Features:

1. Single LC or SC receptacle optical interface compliant

2. Hot-pluggable SFP footprint

3. 1310nm FP laser transmitter; 1550nm DFB laser transmitter

4. RoHS compliant and Lead Free

5. Up to 20km on 9/125um SMF

6. Metal enclosure for lower EMI

7. Single 3.3V power supply

8. Low power dissipation <600mW

9. Commercial operating temperature range: 0°C to 70°C

10. Digital Diagnostic Monitoring optional



Applications:
Gigabit Ethernet
Fiber Channel
WDM Application



BiDi(WDM) Transceivers



155M/622M BiDi SFP LC/SC	155M BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
4/2/1G BIDI SFP LC/SC	4/2/1G BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
10G SFP BiDi	SFP+ BiDi 1270 20km	SFP+ BiDi 20km Tx1270nm/Rx1330nm LC
	SFP+ BiDi 1330 20km	SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
	SFP+ BiDi 1270 40km	SFP+ BiDi 40km Tx1270nm/Rx1330nm LC
	SFP+ BiDi 1330 40km	SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
10G XFP BiDi	XFP BiDi 1270 20km	XFP BiDi 20km Tx1270nm/Rx1330nm LC
	XFP BiDi 1330 20km	XFP BiDi 20km Tx1330nm/Rx1270nm LC
	XFP BiDi 1270 40km	XFP BiDi 40km Tx1270nm/Rx1330nm LC
	XFP BiDi 1330 40km	XFP BiDi 40km Tx1330nm/Rx1270nm LC





OEM and ODM



OEM/ODM order is available



Shipment



International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.



Guarantee
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
