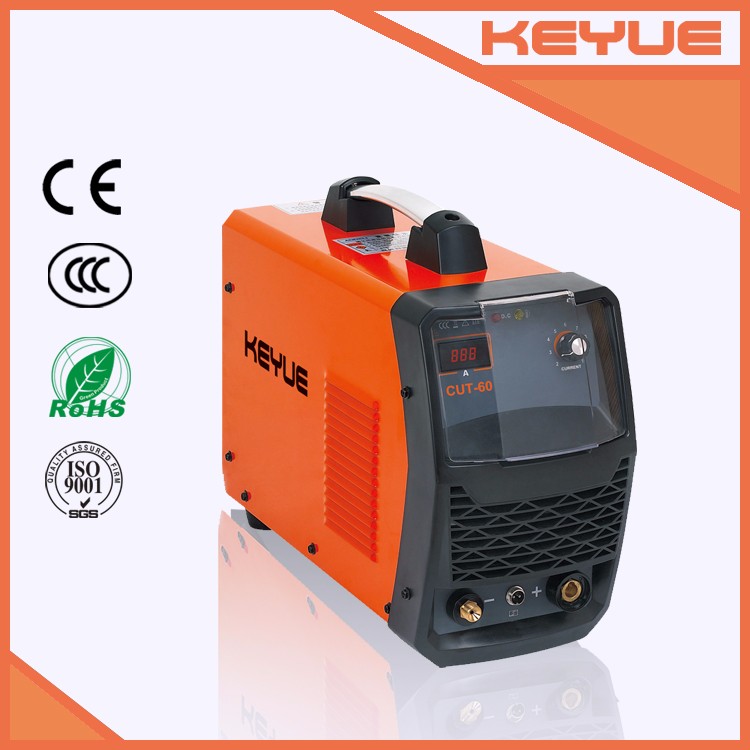

Мини машина для плазменной резки с ЧПУ воздушно-плазменный резак
- Категории: Machine Tool Equipment >>>
- Поставщик: Keyue,Welding,Equipment,Co.,Ltd.Keyue,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product description
Product feature
- Contact start without pilot arc
- Maximum cutting: 20mm
- Protection: over heat, over voltage and under voltage
- Material: mild steel, brass, stainless steel, copper, aluminum
| Model | CUT-60 |
| Input voltage(V) | 3PH AC380V±15% |
| Input power(KVA) | 9.2 |
| Input current (A) | 14 |
| Rated output | 104V/60A |
| Output current(A) | 20-60 |
| No-load voltage (V) | 256±10 |
| Duty Cycle% (40℃ 10min) | 60A 60% |
| 46A 100% | |
| Efficiency (%) | 60 |
| Protection grade | IP21 |
| Insulation grade | F |
| Method of arc start | contact |
| Net weight (KG) | 14.7 |
| Gross weight (KG) | 18.1 |
| Dimension of machine (mm) | 535*210*380 |
| Dimension of package (mm) | 570*260*440 |

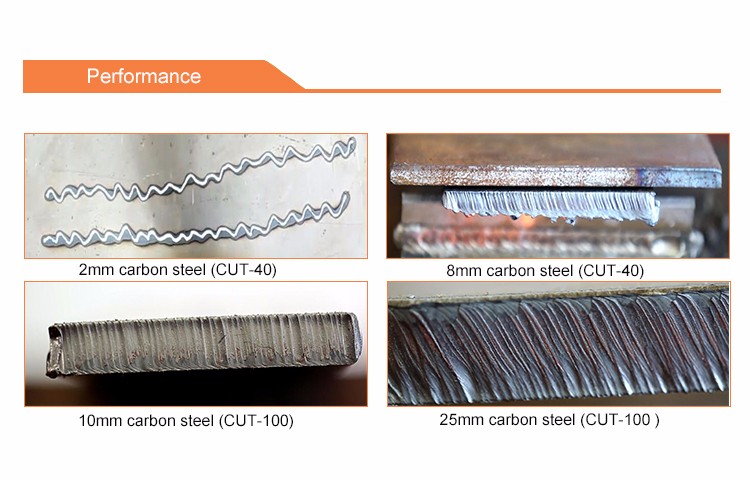

Performance
Material | Sheet thickness (mm) | Arc start | Current range(A) | Model |
Carbon steel, stainless steel, low alloy steel | 0.3-16.0 | Contact | 20-40A | CUT-40 |
| 1.0-25.0 | Contact | 20-60A | CUT-60 | |
| 1.0-30.0 | Uncontact | 20-100A | CUT-100 | |
| 1.0-35.0 | Uncontact | 20-120A | CUT-120 | |
| 1.0-40.0 | Uncontact | 20-160A | CUT-160 | |
| 1.0-50.0 | Uncontact | 20-200A | CUT-200 | |
| Copper, Copper alloy, Aluminum, Aluminum-alloy | 0.3-8.0 | Contact | 20-40A | CUT-40 |
| 1.0-13.0 | Contact | 20-60A | CUT-60 | |
| 1.0-15.0 | Uncontact | 20-100A | CUT-100 | |
| 1.0-18.0 | Uncontact | 20-120A | CUT-120 | |
| 1.0-20.0 | Uncontact | 20-160A | CUT-160 | |
| 1.0-25.0 | Uncontact | 20-200A | CUT-200 |

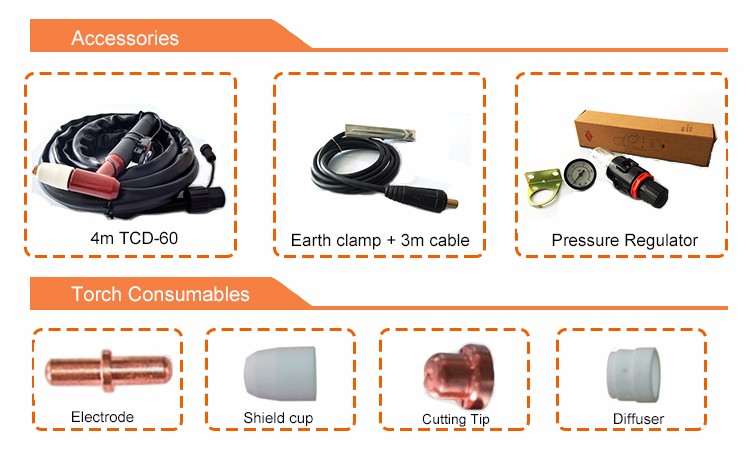

Accessories

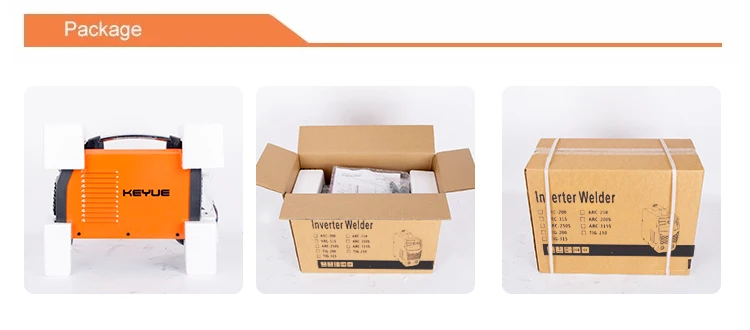

Package
Company info
Workshop
Certificate
