China Used Cold Truck With Refrigerator Unit,Insulated Box For Refrigeration, thermo king refrigerator truck



 2-5t mini freezer truck, small refrigerated truck now is the best Refrigerated Truck Body Material

and the materials is become more and more popular in the Refrigerated Truck Body market.

All-close panel, adhesive structure with the type of building block, Freon-free polyurethane

vesicant material is our innovation, which are very different from traditional open sandwich

panel with connecting by metals, injected polyurethane at site with Freon.

Product details :

Item	unit	Parameter
Vehicle model		Refrigerator Truck
Horse Power	ps	69
Overall dimensions	mm	4380×1580×2390
GVW	kg	2170
Rated loading capacity		1000
Mass in working order		1170
Body dimensions	mm	2550×1410×1490
Wheel base		2750
F/R track base		1280/1290
Approach/departure angle	°	58/20
Exhaust/hp	ml/kw	1012/50.7
Max speed	km/h	90
Tire specification	165/70R13LT	Engine type	JL466Q1
Traction system	4*2	transmission	5-speed with over drive
Number of axles	2	Electric system	24v
Operation control system	Electrically hydraulic control	Allowable passengers in cab	2

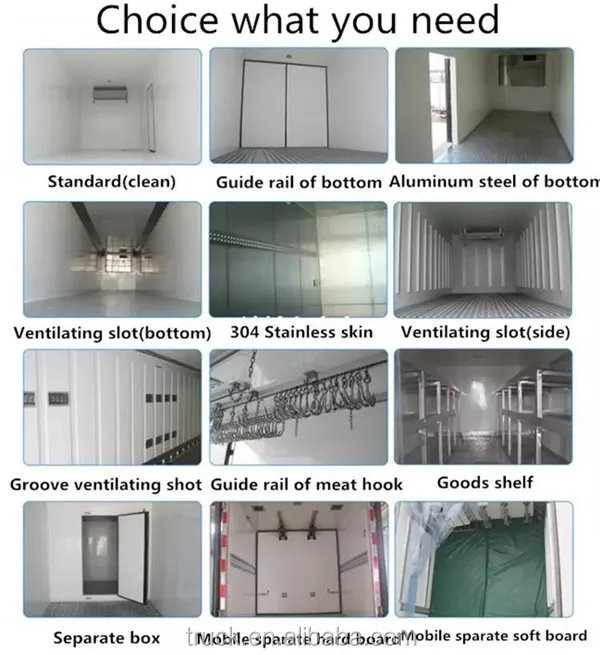

Equipment	Material: color steel or FRP Temperature: multi-zone temperature, the lowest is -15°C~-20°C Thickness: 8cm Flat van, maintenance-free maintenance Car back door hardware is stainless steel products, luxurious appearance.
Engine	JL466Q1, gasoline engine
Product introduction	Our company’s refrigerated trucks, the body of van is all-plastic composite closed the whole structure of the combination plate, both within and outside the skin for the glass plate in the middle for laminated polyurethane foam insulation, four high-strength side with the glass plates with plastic polyurethane Foam bonding together to form a closed section, and assembled into the van used high-strength glue binding together and buried in high-strength screw for fastening, the selection of refrigeration units in the United States ,cold king, France Kelly Japan Mitsubishi and other international brands.
Production cycle	7-10 days
Warranty	12 months

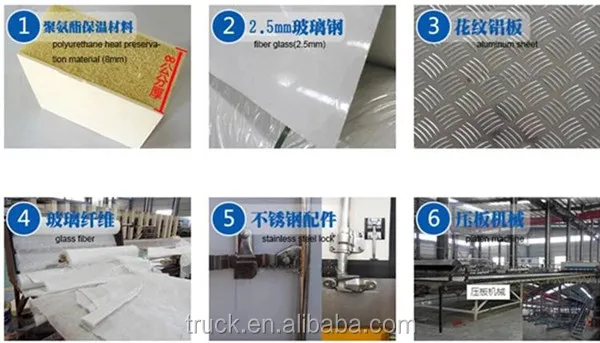

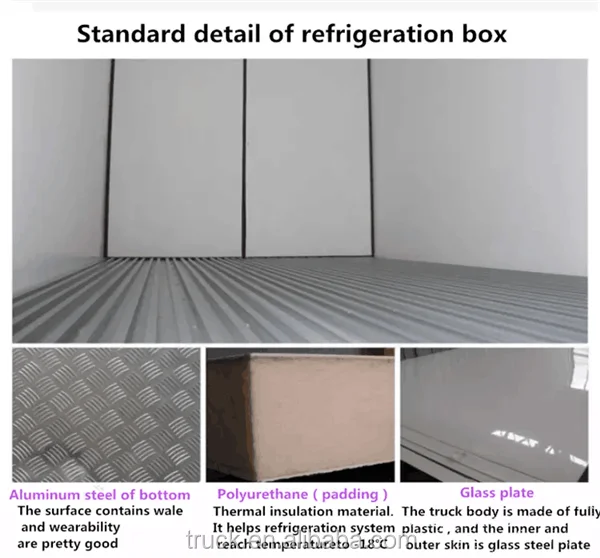

1)Outer/inner skin is FRP panel

2)polyurethane insulated ,PU foam density 42-45kg/m3

3)304 stainless steel locks ,hinges,door frame, wrap angle

4) aluminium alloy Edge Protector

5)EPDM rubber door seal

6)thickness: 62mm ,82mm,102mm or other special demands, body size as you demanded

7)side door is optional

8)Light in weight: 40% lighter than metal body.

9) Better insulation:  K value less than 0.3w/m2k..

10)High in strength and long life: 5 times longer than metal body.

11)Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.

12)Easy to be assembled and repaired at site.

Our products can be shipped in CBU (completely built up) and CKD (completely knock down) type

Temperature range,-18°C--0°C

 The Thickness

1)Front wall panel:85mm

2)Rear wall panel:85mm

3)Side wall panel:85mm

4)Roof wall panel:105mm

5)Floor wall panel:105mm

6)With the dimensions, the truck body can be the best Refrigeration Effect. But we also can change the       Thickness by your requirements. And the thickness range is from 25mm to 150mm

Product application :

1. Drive model:4*2,6*2,6*4,8*4; Chassis Brand : Dongfeng, FAW, Auman, Shacman, Sinotruck, North Benz( Bei Ben), etc.

     2. At present Our Truck with Euro 2 and Euro 3 Emission Standard; Engine model: Dongfeng Cummins(140HP-340HP),Yuchai(120HP-310HP),Foton(96HP-260HP),etc.

     3. Cab: Flat-head/High-head with one sleeper(optional), comfortable design, rated passengers:3, with air condition; Steering control: Left hand drive /Right hand drive optional;

     4. Length of Cargo body: 10-40inch; Capacity of Cargo body:10-70CBM. The material of the cargo body is opptional according of which kinds of goods the truck transport, with perfect heat preservation, Open model: Read double-open or Side-open.

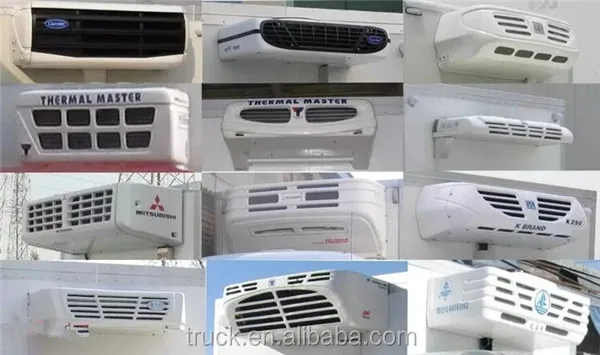

     5. Equip with the international famous brand such as USA” Carrier”, Korea “ Hanya” un-independent refrigeration units , The temperature of the cargo body inside could be -18°C--25°C, the refrigeration effect is very good.

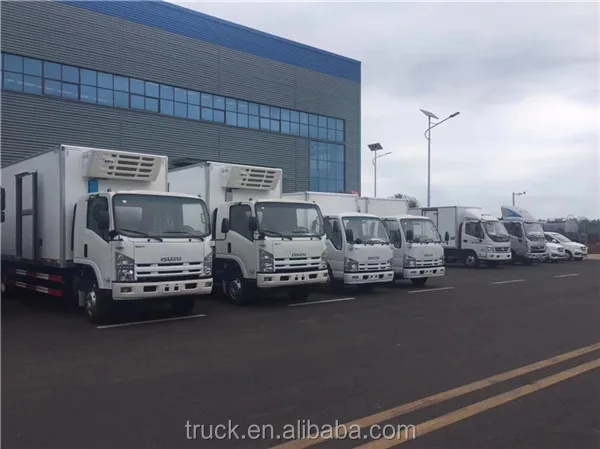

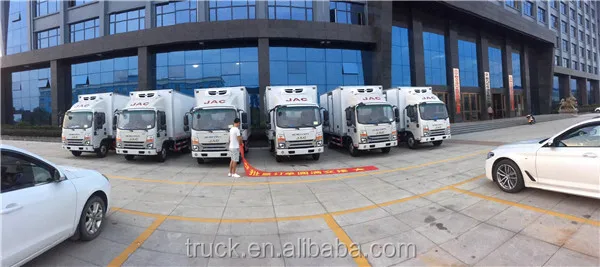

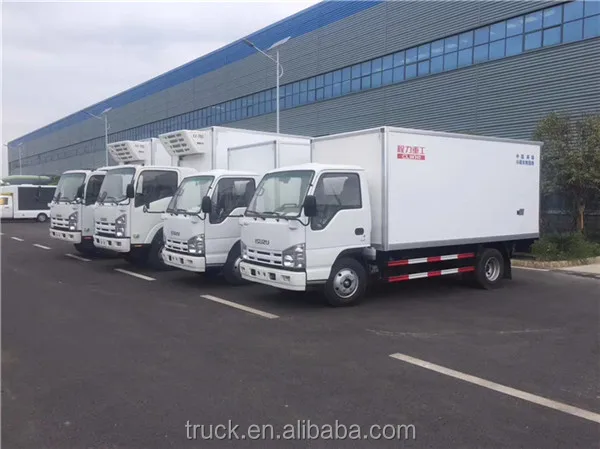

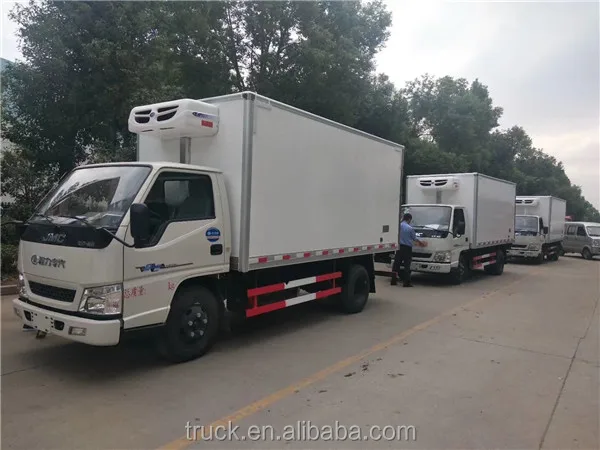

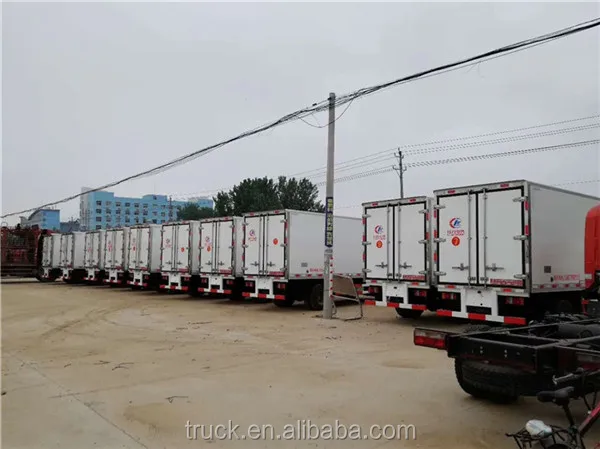

Details of Refrigerator truck show :

Company Scane





Company certification

ompany pass  the 3 c certification, BV certification, iso9000 quality system certification, environmental quality certification, SGS certification, and products.At the same time the company has also issued by the national government contract and credit enterprise certification, as well as issued by the bank credit enterprise, credit enterprise and user vote through the network.

Other problem

No.1 Payment

    We only Accept T/T  or Western Union;(30%as deposite, after Inspectiing at our factory ,pay the

blance 70%,If you don't accepet, We sincerely welcome you to our factory for inspecting or discussing

No.2 Packing

Nude, Covered with max, small type can be put into 20"GP,or 40GP,40HQ,big type can be carried by

bulk ship or RO-ROshipping or according to your requirement

No.3.Delivery Time

We have lots of truck in stock, delivery time is 7-15days as long

Remarks :

 The above Infomation is just for your reference.We can manufacure the truck as eachyour request.

Any questiones, pls feel free to reach me ,It would be great pleasure to be on your service.
