Product Description



Centrifugal cyclone for sludge separation



1.Description of centrifugal cyclone:

The hydrocyclone is pulp grading equipment which uses centrifugal force. Hydrocyclones is mainly used for grading, separation, enrichment, and desliming in mineral processing industry. Hydrocyclones used for grading equipment is mainly used with the ball mill form a grinding - grading system.



1). Classification for section I closed circuit grinding

2). Classification for section II closed circuit grinding

3). Regrinding for fine mine classification

4). Mud-removing before selection and after selection

5). Dam and backfill for gangue

Hydrocyclone 8.jpg



In closed circuit grinding system, it features high classification efficiency and fine overfall fineness under high mine concentration.

Classification efficiency is higher for 5-10% than common screw grader.  It benefits for  enhancing grader utilizing coefficient.

Note:We can produce based on customer's requirement with PU, steel hull lining PU, steel hull lining TG-NM wearable material, steel hull lining high Aluminum porcelain in cyclone.





2.Working principle of centrifugal cyclone:

Ore-mud can enter the drum with the help of a certain pressure (usually 0.5 to 2.5 kg/cm) and velocity (about 5 to 12 m / sec) that caused by slurry pump, and the ore-mud will rotate with the surface of drum, and cause quite strong centrifugal force, heavy particles will be moved downwards with the centrifugal force and gravity. Then discharged from the underside of the cone, the light granules will be discharged from the overflow pipe.



Working Principle of mining machinery Hydrocyclone.jpg



3. Features of centrifugal cyclone:

  • Simple structure, light and flexible, no moving parts;
  • low equipment cost, easy disassembly, maintenance, less the cost of infrastructure
  • Large handling capacity, Can handle the small particle size to about 10μm
  • High efficient classification.
  • Slurry in the cyclone retention volume and time very small, easy to deal with when the machine stops.
  • Long service life, large disposal capability, small land covering, no driving power consumption.

  • High efficient grading & de-sliming equipment of fine -particle material.

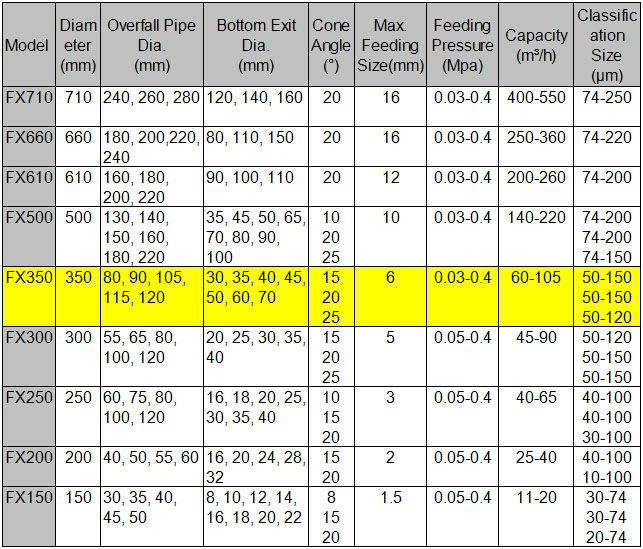

4.Technical Specification of centrifugal cyclone:

FX350 Hydrocyclone



5.Applications of centrifugal cyclone:

Centrifugal cyclone is mainly applied to the process of second paragraph grinding, coarse or concentrate re-grinding and the closed-circuit composed by mechanical grading machine, its grading operation is according to the particle size.

It is widely used in concentrator of nonferrous and ferrous, chemical, pharmaceutical, ceramics and other industries.

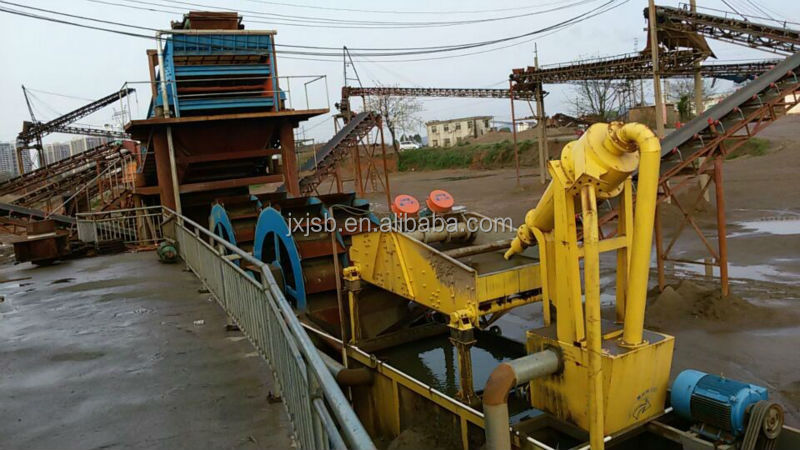

cyclone 5.jpgHydrocyclone application.jpg

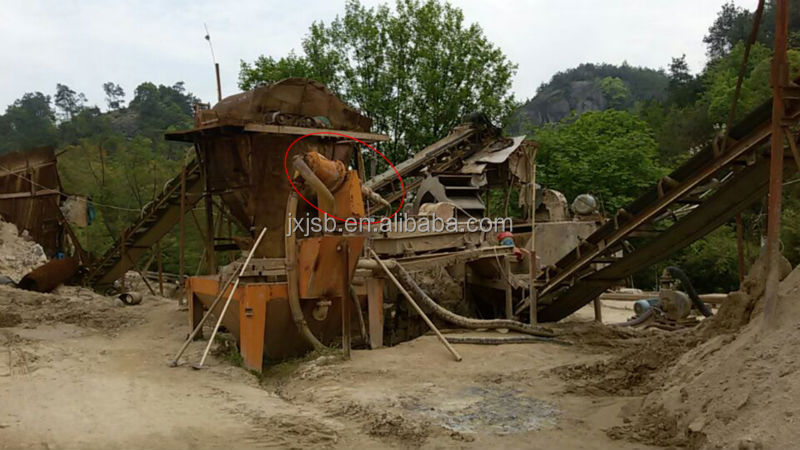

6. Centrifugal cyclone used in closed grinding circuit:

schematic diagram of hydrocyclone.jpg





Packaging & Shipping



7.Packing of centrifugal cyclone:

LCL: Centrifugal cyclone packed in steel frame inside and polywood box outside.

FCL: Centrifugal cyclone fixed in the container directly; the spare parts will be packed in wooden box.

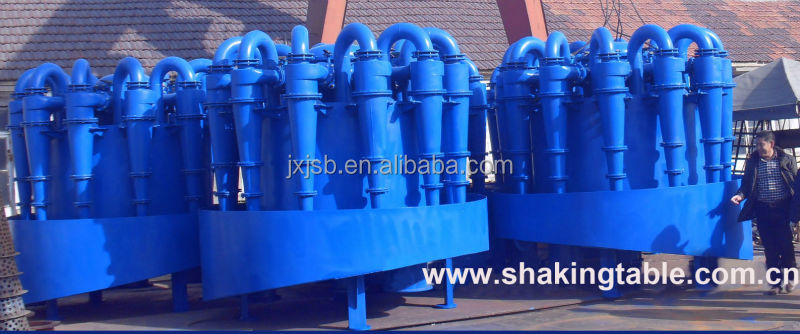

Packing of Mining Machinery Hydrocyclone Separator.jpg





8.Trade terms of centrifugal cyclone:

Trade terms of Mining Machinery Hydrocyclone.jpg
