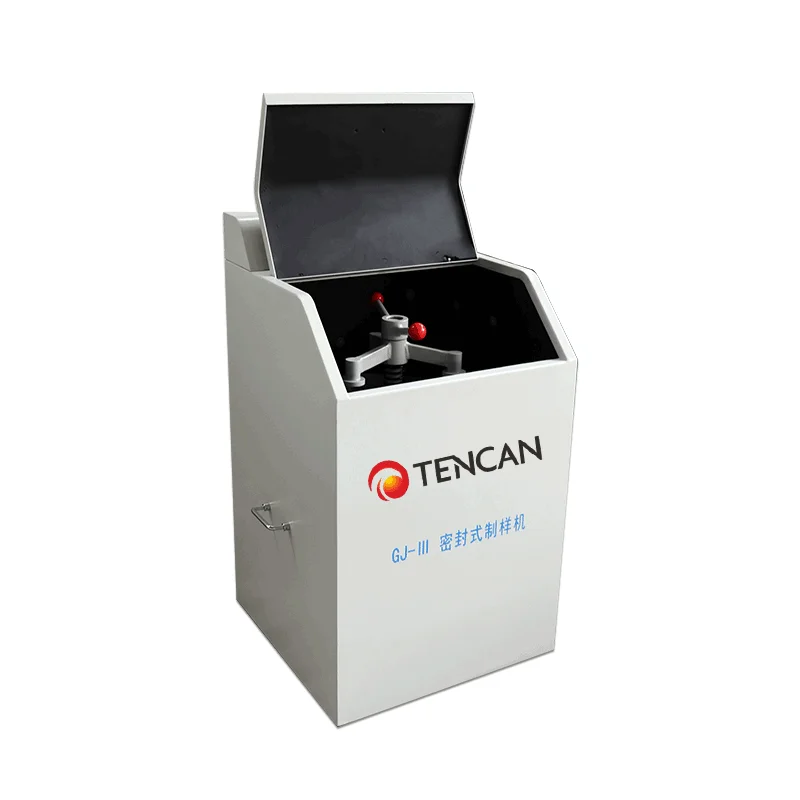

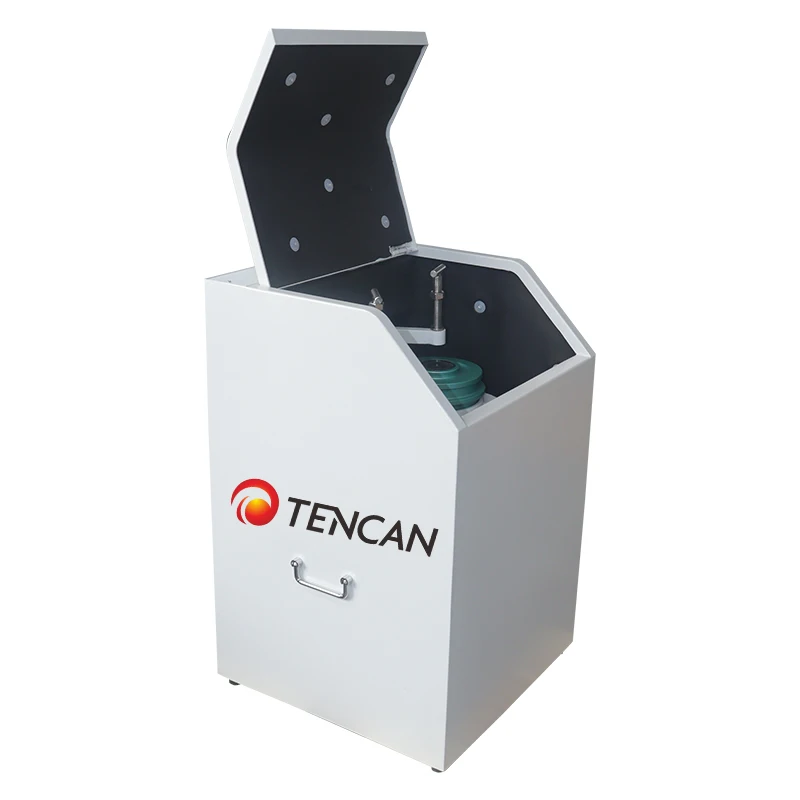

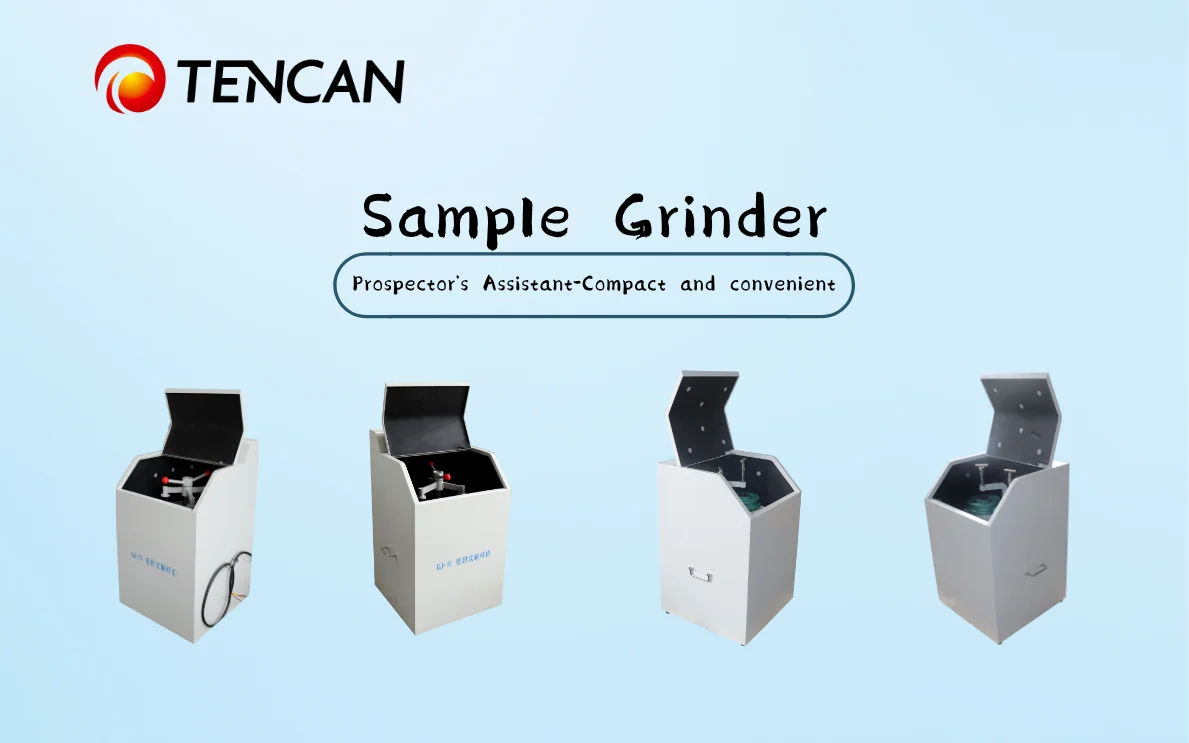

China Tencan GJ-3 Quick Grinding Lab Vibratory Sampling Machine, Lab Bowl Grinder
Product Brief Introduction
Lab Vibratory Sampling machine works by way of vibration grinding. There are breaking rings and breaking hammer in the feeder bowl where materials are put. When the bowl makes rotation at high speed which causes strong vibration and
friction, materials inside it are ground and crushed by breaking rings and hammer. Materials can be rapidly ground into powder sample of 80-200mu within 2-6 minutes that can be directly used for test.
Feeder bowl is made of different materials such as common steel, manganese steel, wear proof alloy, tungsten carbide and so on. According to the different materials of the bowl, the mineral hardness is also different.
Product Features
1.Uniform sampling granularity, fast, reliable, high grinding efficiency.
2.Grinding material can be use directly without screening, fewer process, high production efficiency.
3.Reasonable design: the whole sealed design, no dust pollution, conform to environmental compliance.
4.Stable operation, low noise, reaches the safety requirements.
5.Compact structure, easy maintenance and handle.
6.One to three samples can be ground at the same time.
7.Grinding pot is made of especial anti-wear material and sealed well without any loss samples.
8.Timer is optional for equipment.
2.Grinding material can be use directly without screening, fewer process, high production efficiency.
3.Reasonable design: the whole sealed design, no dust pollution, conform to environmental compliance.
4.Stable operation, low noise, reaches the safety requirements.
5.Compact structure, easy maintenance and handle.
6.One to three samples can be ground at the same time.
7.Grinding pot is made of especial anti-wear material and sealed well without any loss samples.
8.Timer is optional for equipment.
Product Details
Stable operation,low noise
Timer is operational for equipment.
Uniform sampling granulaity, fast, reliable, high grinding efficiency
Main parameter
Model | Inlet Size (mm) | Feed Size (mm) | Fineness(mesh） | Capacity (g) | Voltage/Power | Dimensions (mm) | Net Weight (KG) |
GJ-1 | 130*1 | ≤13 | 80-200 | 100 | 1.1KW-380V | 480*480*730 | 110 |
GJ-2 | 130*2 | ≤13 | 80-200 | 200 | 1.1KW-380V | 480*480*730 | 115 |
GJ-3 | 130*3 | ≤13 | 80-200 | 300 | 1.1KW-380V | 530*530*920 | 130 |
Company Profile
Changsha Tencan Powder Technology Co., Ltd
Changsha Tencan Powder Technology Co.,ltd is founded in 2006. It is located in Xingsha Town, Changsha City of Hunan Province, China. Our factory is a supplier of manufacturing planetary ball mill, roll ball mil, stirring machine, mixer machine, vibratio ball mill, vacuum glove box, mill tank, ball media.. Harvard University, Peking University, Tsingha University, Foxconn, BYD, CASC,etc. are our regular customers, giving high praise for our machines for their long using life with less mechanical failure. With the sustained business conception of "credit is the basis, quality is the first", we gain the high trust from customers. A first-class enterprises goal ----- brand, do first-class enterprises, and take Group operations, to the international development.
Certifications
Communication with Customers
FAQ
1. Are you manufacturer or trade company?
We are one of leading manufacturers in China, which focuses on designing, manufacturing and selling all kinds of powder grinding equipment including planetary ball mills, roll ball mills, stir ball mills, crushers, mixers and sieve shakers as well as accessories matched with machines.
2. What is your delivery time if I place an order?
We often have a great deal of regular machine models and accessories in stock available. If you want to order our regular items, it takes about 1-3 working days to finish packing and inspection, Generally speaking we can make shipment of regular order from our warehouse within 3-7 working days after payment is received.
3. What questions about requirements are required to provide to us if you inquiry about ball mills?
Answers:
* What material is needed to be grind? By wet or dry method?
* How many liters of material are required to be ground per batch?
* What is feed size (mm) of starting materials?
* What final particle size (μm or nm or meshes) is required by grinding?
* Is material allowed with metal impurity contamination while grinding?
4. Can you provide testing service of grinding experiment before we place an order?
Yes. sample grinding experiment is available for any customer who is willing to send materials to us, and grinding experiment of sample is always free of charge.
Delivery address of material sample:
Changsha Tianchuang Powder Technology Co., Ltd
Room 804, 2nd Building, No.68 Luositang Road, Changsha Economic and Technological Development Zone, Changsha, Hunan, China 410100
Contact Name: Aivin Ai Mobile Phone: +86 13548659522
5. What’s your warranty?
One-year warranty period is provided. If any problem while you are using the machine, you can send Email to: service@lab-mills.com for after-sale services.
6. What is MOQ (Minimum Order Quantity) of one order?
One set of machine or one piece of accessories (like ball mill jar and balls) are acceptable.
We are one of leading manufacturers in China, which focuses on designing, manufacturing and selling all kinds of powder grinding equipment including planetary ball mills, roll ball mills, stir ball mills, crushers, mixers and sieve shakers as well as accessories matched with machines.
2. What is your delivery time if I place an order?
We often have a great deal of regular machine models and accessories in stock available. If you want to order our regular items, it takes about 1-3 working days to finish packing and inspection, Generally speaking we can make shipment of regular order from our warehouse within 3-7 working days after payment is received.
3. What questions about requirements are required to provide to us if you inquiry about ball mills?
Answers:
* What material is needed to be grind? By wet or dry method?
* How many liters of material are required to be ground per batch?
* What is feed size (mm) of starting materials?
* What final particle size (μm or nm or meshes) is required by grinding?
* Is material allowed with metal impurity contamination while grinding?
4. Can you provide testing service of grinding experiment before we place an order?
Yes. sample grinding experiment is available for any customer who is willing to send materials to us, and grinding experiment of sample is always free of charge.
Delivery address of material sample:
Changsha Tianchuang Powder Technology Co., Ltd
Room 804, 2nd Building, No.68 Luositang Road, Changsha Economic and Technological Development Zone, Changsha, Hunan, China 410100
Contact Name: Aivin Ai Mobile Phone: +86 13548659522
5. What’s your warranty?
One-year warranty period is provided. If any problem while you are using the machine, you can send Email to: service@lab-mills.com for after-sale services.
6. What is MOQ (Minimum Order Quantity) of one order?
One set of machine or one piece of accessories (like ball mill jar and balls) are acceptable.
