Горячая шайба используемая в линии переработки
- Категории: Другие машины утилизации резины >>>
- Поставщик: Baoding,Haorui,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Hot Washer
Usage：heat and wash the PET flakes
1. Heating mode: By gas
2. Motor power: 5kW
3. Water temperature: Around 90℃
4. Cylinder size (× H): 1.8 m×3m
5. Raw material: carbon steel
6. Plate thickness：4mm
7. Double layers with insulation
8. Equipped with operation platform
9. Consist of a water tank to collect floating plastic materials, such as PE label,etc. The treated water could be recycled.
1. Heating mode: By gas
2. Motor power: 5kW
3. Water temperature: Around 90℃
4. Cylinder size (× H): 1.8 m×3m
5. Raw material: carbon steel
6. Plate thickness：4mm
7. Double layers with insulation
8. Equipped with operation platform
9. Consist of a water tank to collect floating plastic materials, such as PE label,etc. The treated water could be recycled.
Product Description

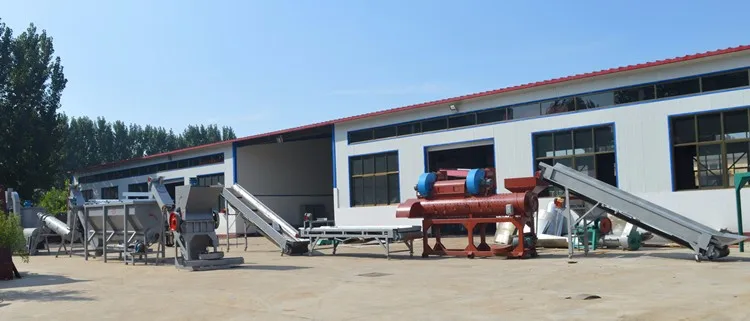

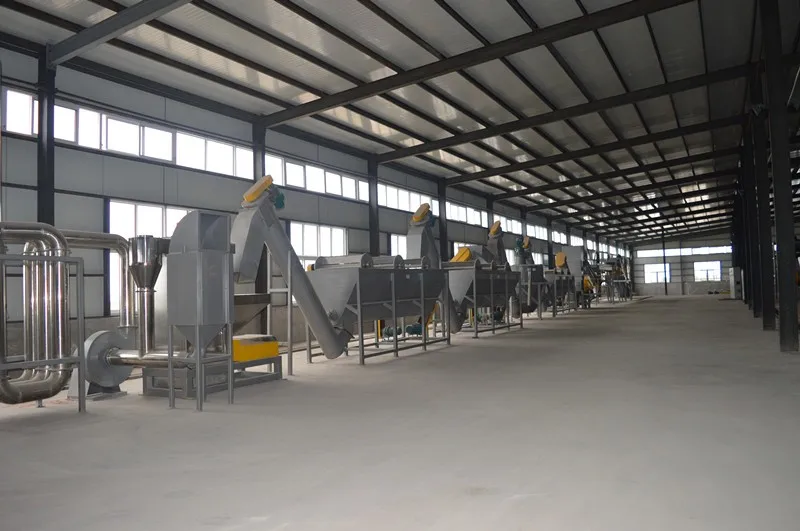

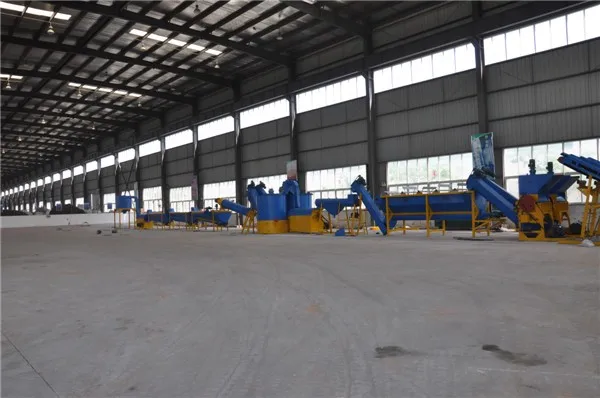

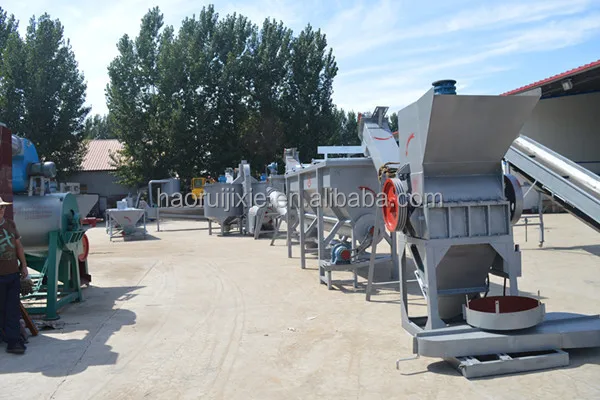

PET plastic water bottles recycling line
This line is used for the plastic water bottles recycling.
Crush and wash the water bottles, finally get cleaned and dried plastic flakes.
These plastic flakes could be directly sold to chemical fibre factory to further process them into chemical fibre for clothes making use.
Product Description
PET plastic water bottles recycling line
It is suitable for crushing, washing and drying of PET plastic such as water bottle, juicy bottle, cola bottle, etc. We can make it in carbon steel or stainless steel, also we can design machines according to different waste plastic and requirements of clients. This PET bottles recycling line includes:
SPECIFICATIONS FOR PET RECYCLING WASHING LINE | ||||||
NO. | ITEM | DESCRIPTION | ||||
1. | Bale Breaker | Break up the compressed bottle bale | ||||
2. | Conveyor Belt | Transport bottles to label remover | ||||
3. | Label Remover | Remove the labels on the bottle (label removing cleanliness higher than 98%) | ||||
4. | Manual Sorting Platform | According to workers' height, supply a suitable plate to pick out the left labels or some other impurities | ||||
5. | Conveyor Belt | Transport the bottles into crusher | ||||
6. | Crusher | Crush the bottles with water | ||||

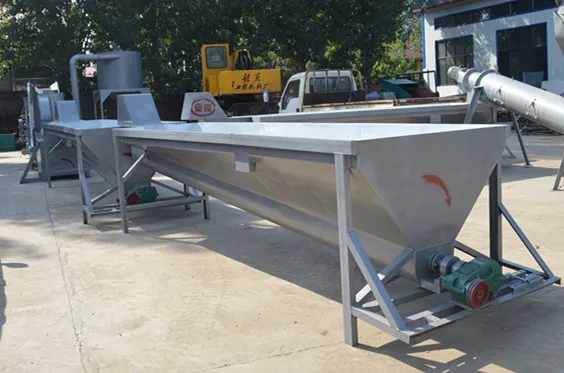

7. | Screw Loader | Conveying the flakes into floating washing tank | ||||
8. | Floating Rinsing Washing Tank | Remove paper scraps, sand, labels out of flakes owing to different buoyancy in water | ||||
9. | Screw Loader | Conveying the flakes into hot washer | ||||
10. | Hot Washer | High temperature stirring washing with caustic soda. Water can be heated by steam or electric or coal around 90 degress | ||||
11. | Screw Loader | Conveying the flakes into friction cleaner | ||||
12. | Friction Cleaner | Scrubbing the flakes at hgih speed with water | ||||
13. | Screw Loader | Conveying the flakes into floating washing tank | ||||
14. | Floating Rinsing Washing Tank | Remove paper scraps, sand, labels out of flakes owing to different buoyancy in water | ||||
15. | Screw Loader | Conveying the flakes into floating dewatering machine | ||||
16. | Dewatering Machine | High speed centrifugal drying. Horizontal or Vertical dewatering machine | ||||
17. | Wind Drier | Electric heating wind drying. | ||||
18. | Label Flakes Separator | The last left impurities will be separated out of flakes by the blower fan | ||||
19. | Storage Silo | Store the final material | ||||
20. | Electrical Control Cabinet | Control the whole line | ||||
Main Features
1) This PET plastic recycling line can deal with PET water bottles, cola bottles, beverage bottles, etc.
2) High efficiency and low power consumption
3) Easily operated
Included Machines

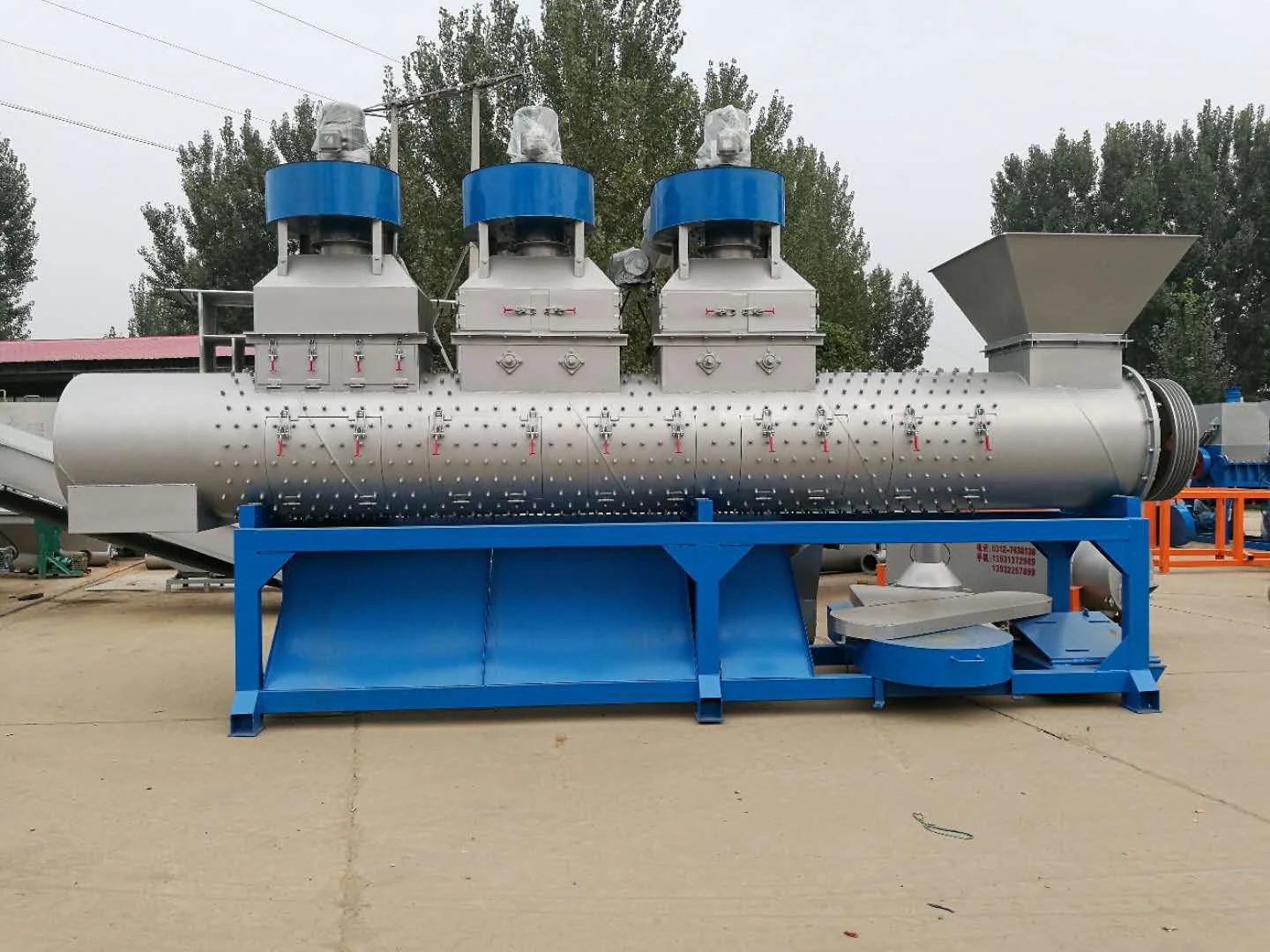

Labels Remover
Usage：remove labels of the PET bottles
1. Motor Power: 37Kw/level 6
2. Raw material of blades：cemented carbide
3. Labels suction motor：5.5kw×1& 7.5kw×2
4. The length of shaft:6000mm
5. 5. The Dia.of shaft:900mm
6. The thickness of internal wall: 10mm
7. Labels scraping motor：1.5kw
1. Motor Power: 37Kw/level 6
2. Raw material of blades：cemented carbide
3. Labels suction motor：5.5kw×1& 7.5kw×2
4. The length of shaft:6000mm
5. 5. The Dia.of shaft:900mm
6. The thickness of internal wall: 10mm
7. Labels scraping motor：1.5kw

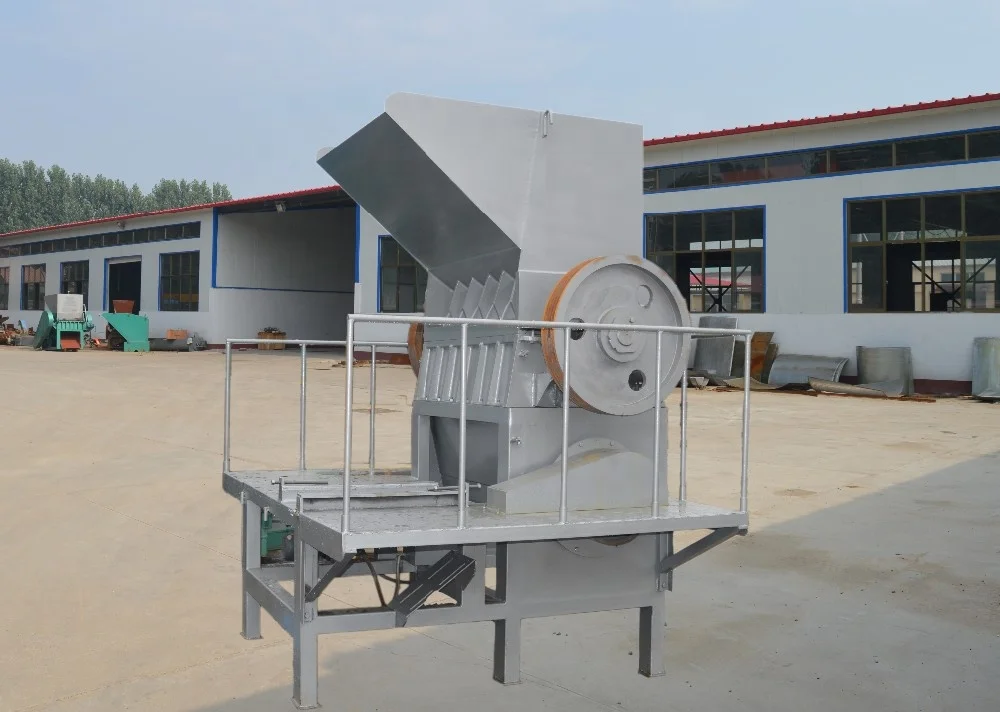

Plastic Crusher
Usage：crush plastic materials into flakes
1. Crush the plastic materials with water feeding to reduce wear
2. Motor power： 55KW
3. The cover opening method：Driven by motor
4. The number of rotating blades：6pcs
5. The number of fixed blades： 4pcs
6. The rotation speed of rotating blades：630RPM
7. The cover opening motor：5KW
8. Screw strength：12.9
9. Bearing：HRB bearing
10.Equipped with forced feeding devices
1. Crush the plastic materials with water feeding to reduce wear
2. Motor power： 55KW
3. The cover opening method：Driven by motor
4. The number of rotating blades：6pcs
5. The number of fixed blades： 4pcs
6. The rotation speed of rotating blades：630RPM
7. The cover opening motor：5KW
8. Screw strength：12.9
9. Bearing：HRB bearing
10.Equipped with forced feeding devices
Forced Feeding Devices：
1. Pressing rotors：2sets of rotors of vertical design
2. Motor power：2kw
3. Rotors design：Spiral shape
4. Raw material of rotors：carbon steel
1. Pressing rotors：2sets of rotors of vertical design
2. Motor power：2kw
3. Rotors design：Spiral shape
4. Raw material of rotors：carbon steel

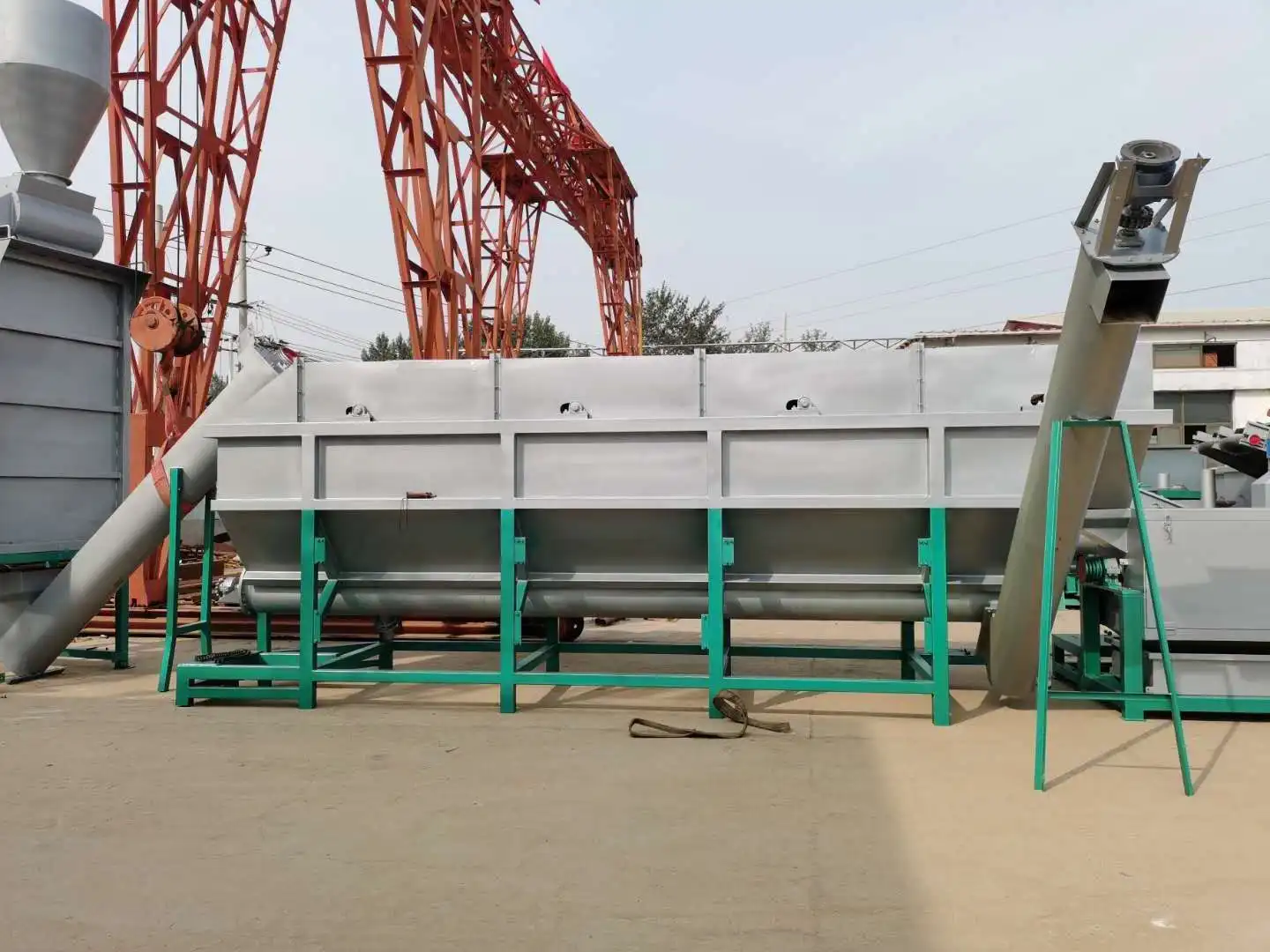

Floating Rinsing Washing Tank
Usage: Rinse PP\\PE\\PET flakes, automatically separate bottles caps and other floating debris, effectively separately varieties of
silt and paper scraps.
1. Motor Power: 4KW
2. Roller wheel motor power: 2.2kw
3. The number of roller wheels:4 pcs
4. The number of bottle worm shaft: 1pc
5. Effective dimension:6m(L)*1.4m(W)*2m(H)
6. The thickness of steel plate:4mm
7. The Dia. of bottom worm shaft：450mm
8. The thickness of bottom helical blades：5mm
9. Equipped with operation platform, with bottles caps collecting box
silt and paper scraps.
1. Motor Power: 4KW
2. Roller wheel motor power: 2.2kw
3. The number of roller wheels:4 pcs
4. The number of bottle worm shaft: 1pc
5. Effective dimension:6m(L)*1.4m(W)*2m(H)
6. The thickness of steel plate:4mm
7. The Dia. of bottom worm shaft：450mm
8. The thickness of bottom helical blades：5mm
9. Equipped with operation platform, with bottles caps collecting box

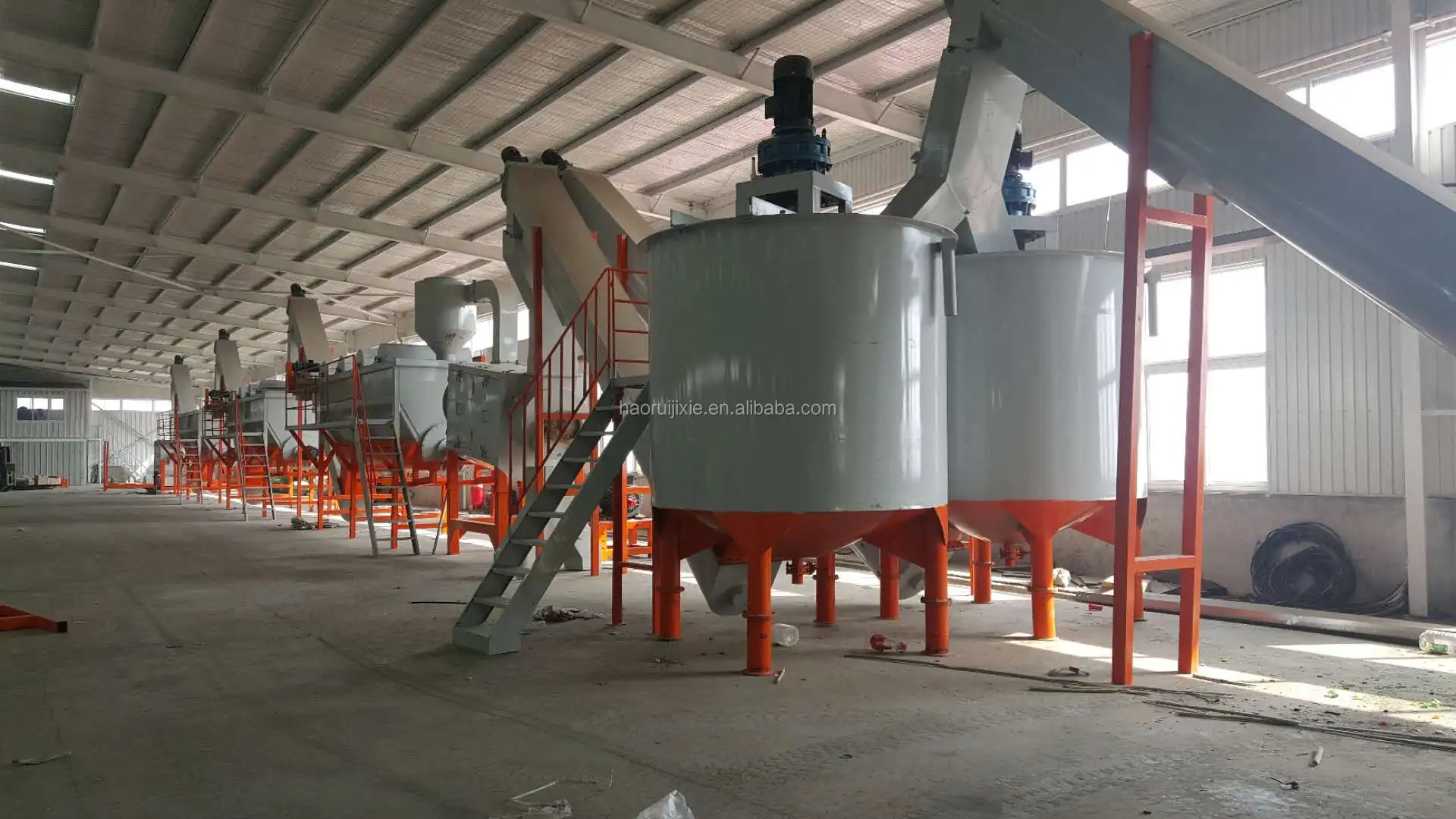

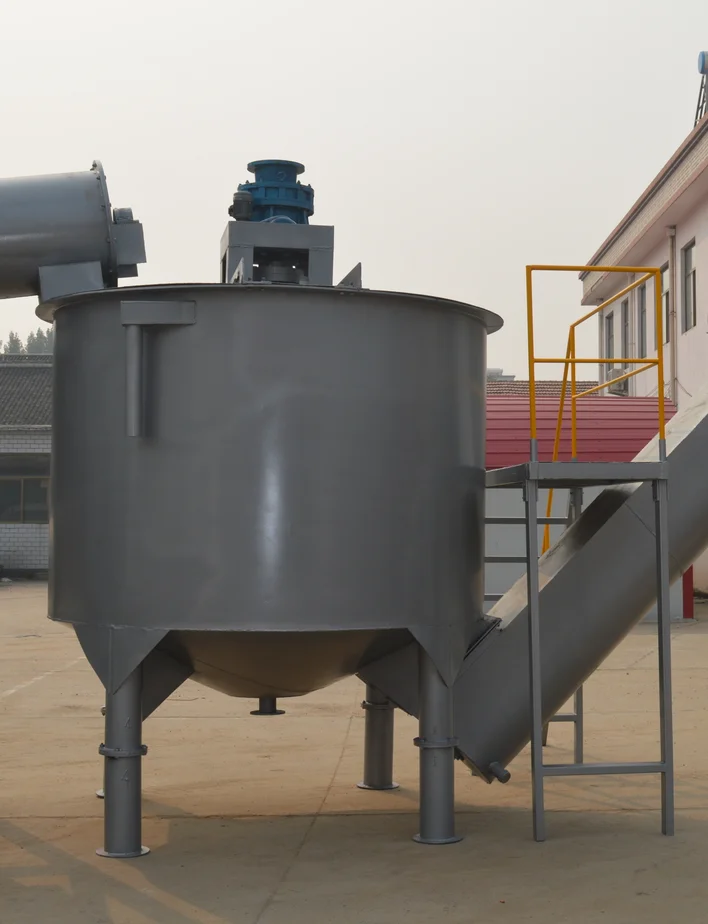

Hot Washer
Usage：heat and wash the PET flakes
1. Heating mode: By gas
2. Motor power: 5kW
3. Water temperature: Around 90℃
4. Cylinder size (× H): 1.8 m×3m
5. Raw material: carbon steel
6. Plate thickness：4mm
7. Double layers with insulation
8. Equipped with operation platform
9. Consist of a water tank to collect floating plastic materials, such as PE label,etc. The treated water could be recycled.
1. Heating mode: By gas
2. Motor power: 5kW
3. Water temperature: Around 90℃
4. Cylinder size (× H): 1.8 m×3m
5. Raw material: carbon steel
6. Plate thickness：4mm
7. Double layers with insulation
8. Equipped with operation platform
9. Consist of a water tank to collect floating plastic materials, such as PE label,etc. The treated water could be recycled.
High-speed friction cleaner
Usage：Quick and efficient kneading, cleaning and separation
1. Motor Power:15KW
2. Rotation speed: 1440rpm
3. Length：3000mm
4. The raw material of : carbon steel
5. The raw material of mesh：stainless steel
6. Bearing：UCF bearing
7. The thickness of plate：4mm
1. Motor Power:15KW
2. Rotation speed: 1440rpm
3. Length：3000mm
4. The raw material of : carbon steel
5. The raw material of mesh：stainless steel
6. Bearing：UCF bearing
7. The thickness of plate：4mm
Dewatering Machine
Usage：dry flakes through centrifugally spinning，automatic feeding and automatic discharging
1.Motor power: 22KW
2. Motor speed: 1440rpm
3. The Dia.of mesh: 1.8mm
4. The thickness of mesh: 2mm
5. Discharge plastic flakes from side, drain water from bottom
6. Raw material of mesh:stainless steel
7. Raw material of helical blades:carbon steel
8. Bearing：ZWZ bearing
9. Length: 2000mm
1.Motor power: 22KW
2. Motor speed: 1440rpm
3. The Dia.of mesh: 1.8mm
4. The thickness of mesh: 2mm
5. Discharge plastic flakes from side, drain water from bottom
6. Raw material of mesh:stainless steel
7. Raw material of helical blades:carbon steel
8. Bearing：ZWZ bearing
9. Length: 2000mm

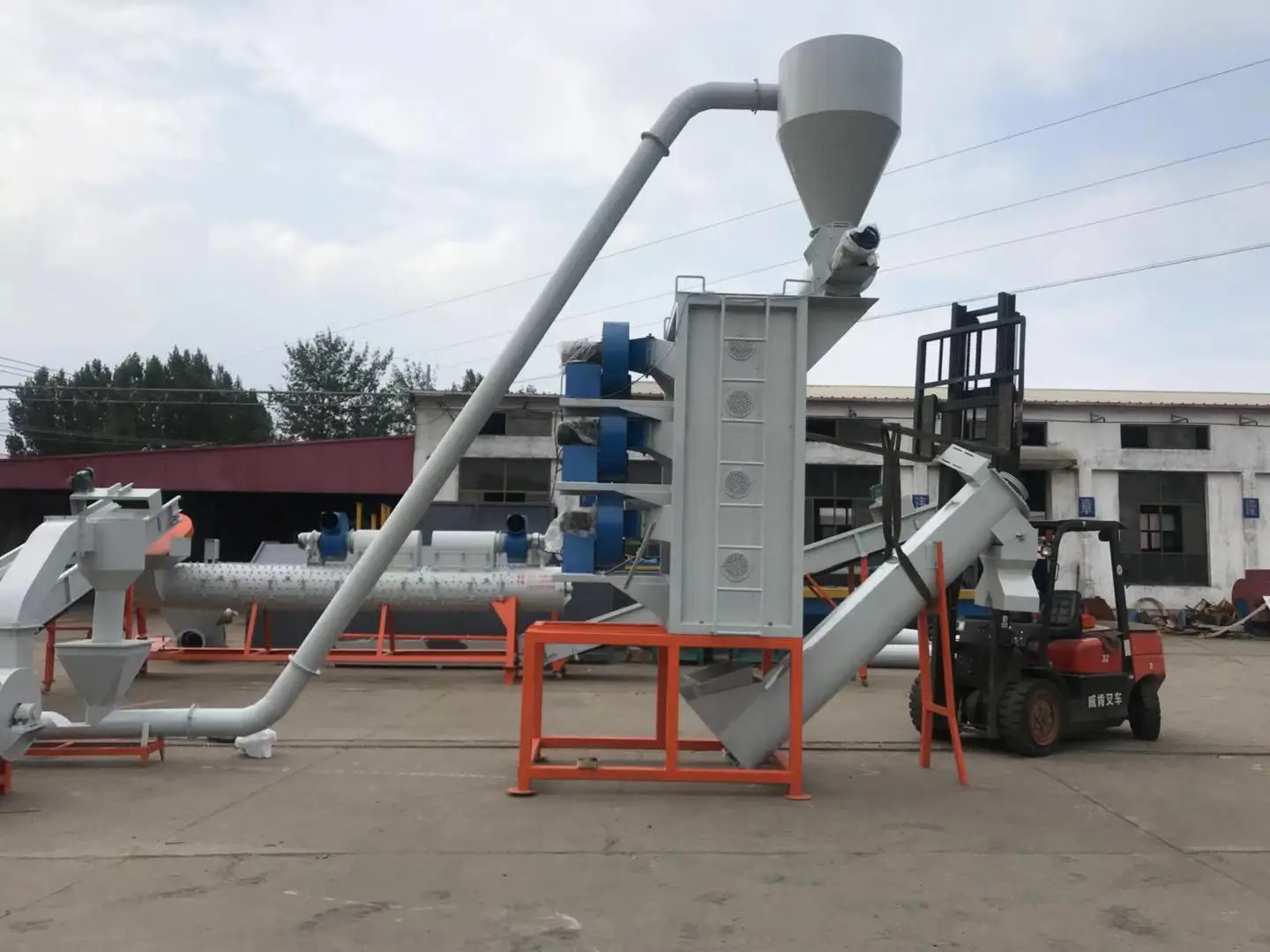

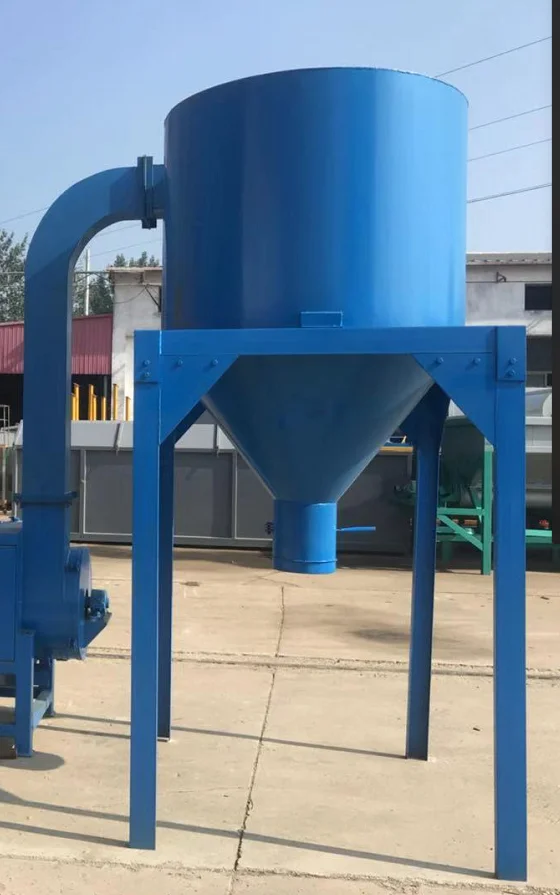

Labels Separator
Usage：Separate materials with different weights to remove those impurities out of PET flakes
1. Automatic butterfly valve power:1.5kw
Blower power: 2.2kw
3.Blower speed: Frequency controlled
4. The number of blower: 3pcs
1. Automatic butterfly valve power:1.5kw
Blower power: 2.2kw
3.Blower speed: Frequency controlled
4. The number of blower: 3pcs
Storage Silo
Used to collect those cleaned and dried plastic flakes in bags for convenient transportation.
Lots of Clients Come Visit Haorui Factory and Place Orders

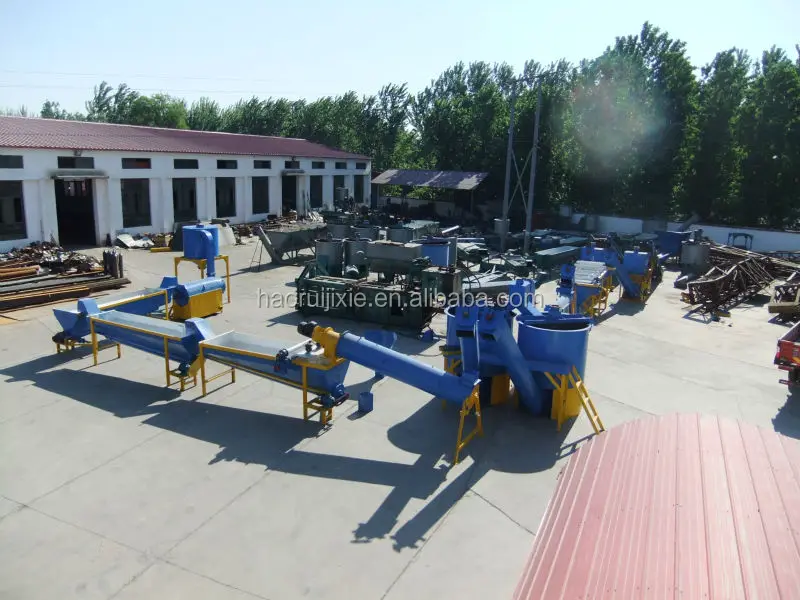

Factory Photos

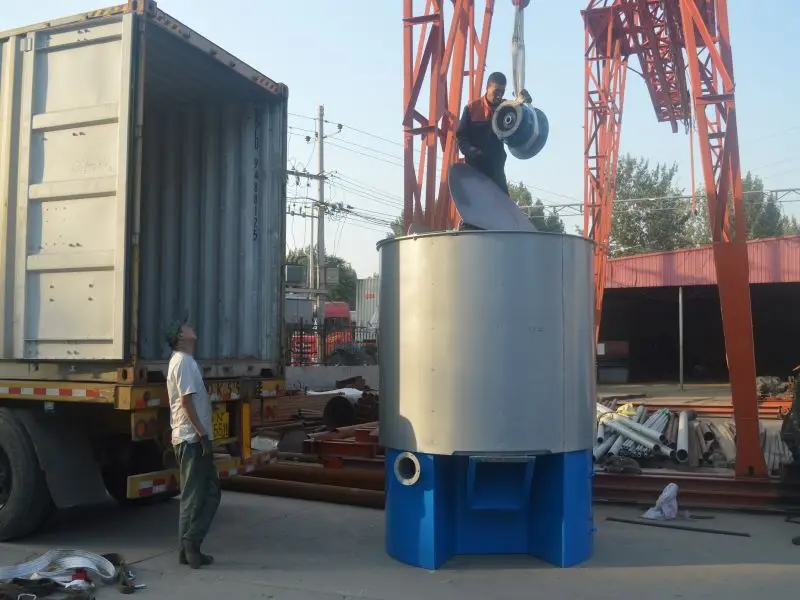

Packing & Loading Photos
