1. Product Descriptions:













  working principle

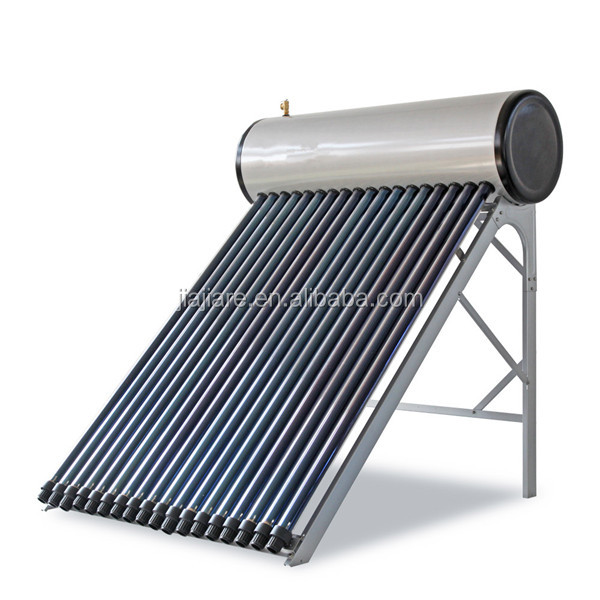

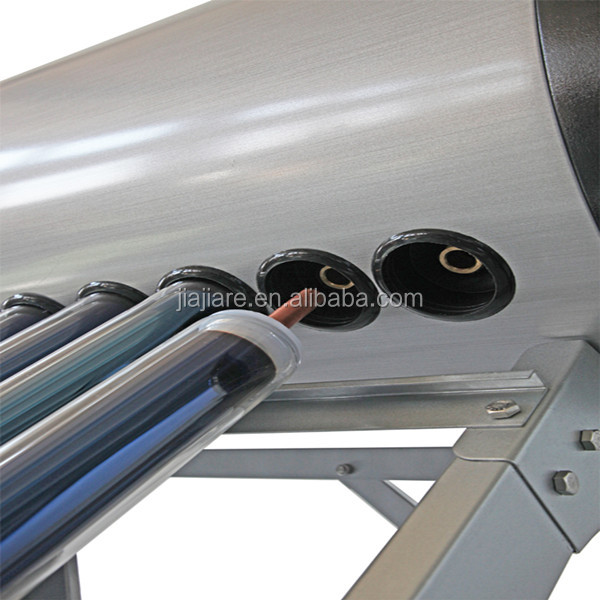

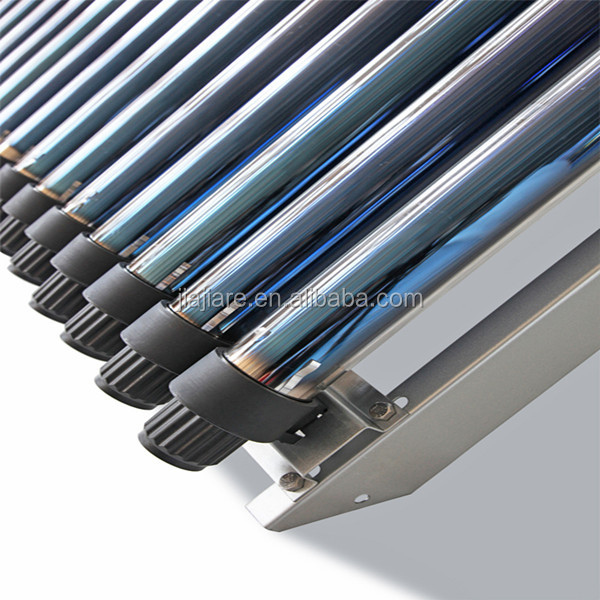

            Jiajiare high pressure compact solar water heater adopts advanced heat pipe and all glass vacuum tube technology.  Highly efficient vacuum tube absorbs heat from sunlight and heat pipe transfers heat to the condenser end of itself. Condenser indirectly contacts with water through a copper cap and it boils water by releasing heat gained from vacuum tube. The available size of the tank ranges from 100L to 500L



   Features:

•  Flexible can be positioned vertically or horizontally.


• Suitable for domestic, large commercial or industrial applications


• Can endure 6 bar pressure


• Integrated with solar collector and tank


• 50 MM high density polyurethane foaming


• Hot water can be preserved for more than 72 hours


• The anode bar to prevent furring

  Detail specifications:



Model	JJR-SS	Heat pipe condenser size	14mm; 20mm; 24mm
Inner tank material	1.2mm SUS3042B/316L	Inner tank welding	argon arc welding
Outer tank material	0.4mm color steel	Test pressure	0.6MPa
Outer tank diameter	460mm/470mm/480mm	Hail resistance	25mm
Insulation layer	50mm/55mm/60mm	Coating material	ALN-SUS-CU
Frame	1.5mm galvanized steel	Heat preservation	72 hours
Frame angle	27/30/ 45 degrees	Popular areas	Europe, Asia, South America

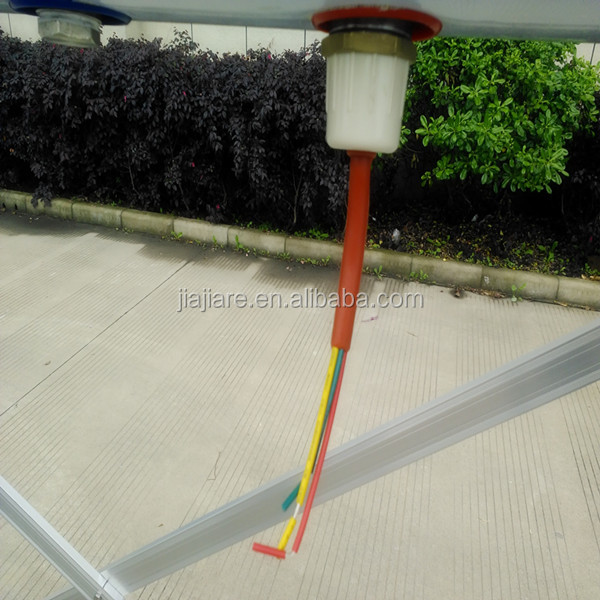

Needed accessories	Magnesium bar; pressure relief valve, air vent	Optional accessories	Electric heater, controller
Lowast working temperature	-35 degrees	OEM offered	YES

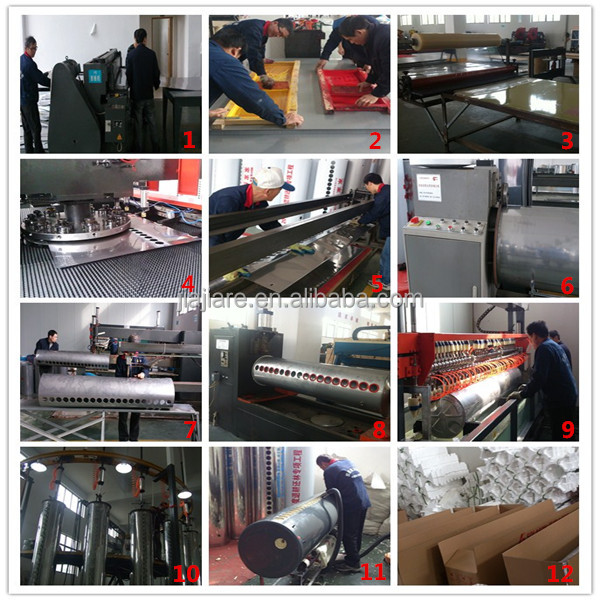

Making process and packing( original pictures taken from factory)

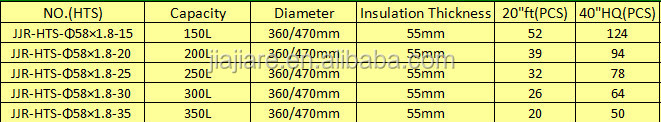

  Loading Details:









 Attention to installation

•  Clearance of remains and sundries in water tank should be done ahead of installation in the purpose of avoiding walling up in or out vents, which may make water tank split up or deflated.


• Do not load water when it is suuny. Better to load water at night or early in the morning expecially for the new unit. As the temperature of vacuum tube can reach 270°C at the highest. When water flowing at this time, vacuum tubes will be broken.


•  When loading water at a high water level, do not turn on the inlet valve openly but let water flow slowly to the tank, or the inner tank will be broken due to the expansion of high pressure.


•  It is inappropriate to load water at a low water level, which will result in hot water in the tank reflowing to water pipe


• Before having a bath, it is necessary to avoid scalding with hand to testing the temperature of water.


•  If electrical heater is installed, it should be cut off when you shower.



  Jiajiare Service and certifications



• We offer customers 5 years for whole solar systems;


• Carton design for customs is free offered when goods sent by container


• When you have any questions regarding our products, feel free to contact us. We will be very glad to service for you.


• 1% extra vacuum tubes, slicone rings will be sent for free.


• It's hoped that our solar system can save you more money as well as protect our environment.
