Вращающийся стол API 7K (ZP175-ZP375) для буровой
- Категории: Oilfield Drilling Rig >>>
- Поставщик: Dongying,Jintan,Petroleum,Technology,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

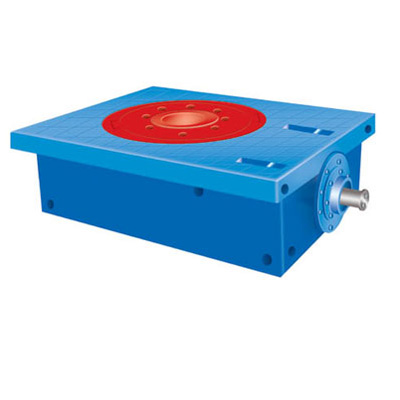

API 7K ROTARY TABLE FOR DRILLING RIG
FAQ
FAQ: Do you do OEM?
Answer: Yes,we offer OEM service,actually we are the manufacturer for some American
and chinese state-owned companies.
FAQ: What's your payment term?
Answer: We accept serveral payment terms,such as Letter of Credit,Telegraphic Transfer
or L/C & T/T. Our payment terms are negotiable.
FAQ:What's your delievry time?
Answer:Depend your quantity
Product Description

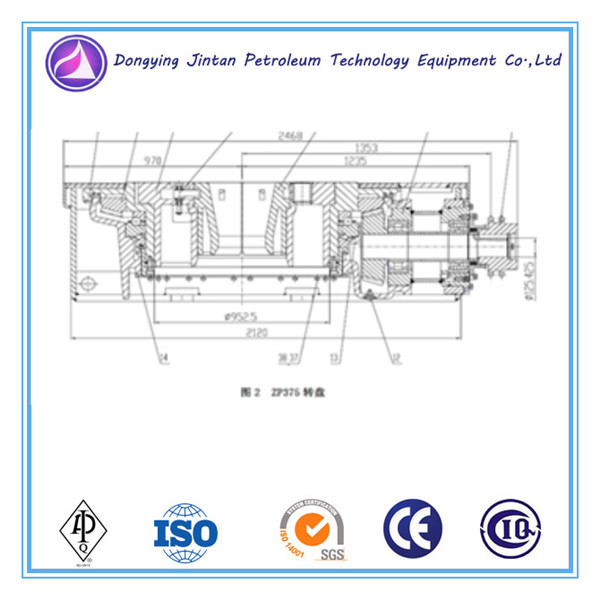

The detailed information for 17 1/2" ROTARY TABLE
Model | ZP135 | ZP175 | ZP205 | ZP205 I | ZP205 II | ZP275 | ZP375 | ZP495 |
Opening Dia.(mm) | 342.9 13 1/2” | 444.5 17 1/2” | 520.7 20 1/2” | 520.7 20 1/2” | 520.7 20 1/2” | 698.5 27 1/2” | 952.5 37 1/2” | 1257.3 49 1/2” |
Max static load (KN) | 1350 | 2700 | 1960 | 3150 | 3150 | 4540 | 5850 | 7250 |
Center distance(mm) | 1118 44” | 1118 44” | 1353 53 1/4” | 1353 53 1/4” | 1118 44” | 1353 53 1/4” | 1353 53 1/4” | 1651 65” |
Max working torque(N.M) | 24000 | 13729 |
| 22555 | 22555 | 27459 | 32362 | 37000 |
Max speed(r/min) | 300 | 350 | 300 | 300 | 300 | 300 | 300 | 300 |
Gear ratio | 3.5 | 3.75 | 3.22 | 3.79 | 3.79 | 3.67 | 3.56 | 3.93 |
Overall Dimension L*W*H(mm) | 1720*960 *375 | 1974*1365 *560 | 2333*1440 *705 | 2204*1410 *610 | 1969*1410 *610 | 2390*1670 *685 | 2468*1810 *718 | 2940*2184 *813 |
WEIGHT (KG) | 1240 | 3666.5 | 4500 | 5542 | 5450 | 6122 | 7970 | 11626 |
Packaging & Shipping
Packaging: Intertational Standard Packing With wooden carton package.
Shipping: By sea or by land (for CIS and some nearby countries).
Our Services
The best professional give you the best professional service
24 Hours online,Any orders Please contact me directly!! Thanks!!
