We Offer One-Stop-All-Round Services, Welcoming Customization!
Product Description
40W/21V monocrystalline solar panel (415x495x25mm),

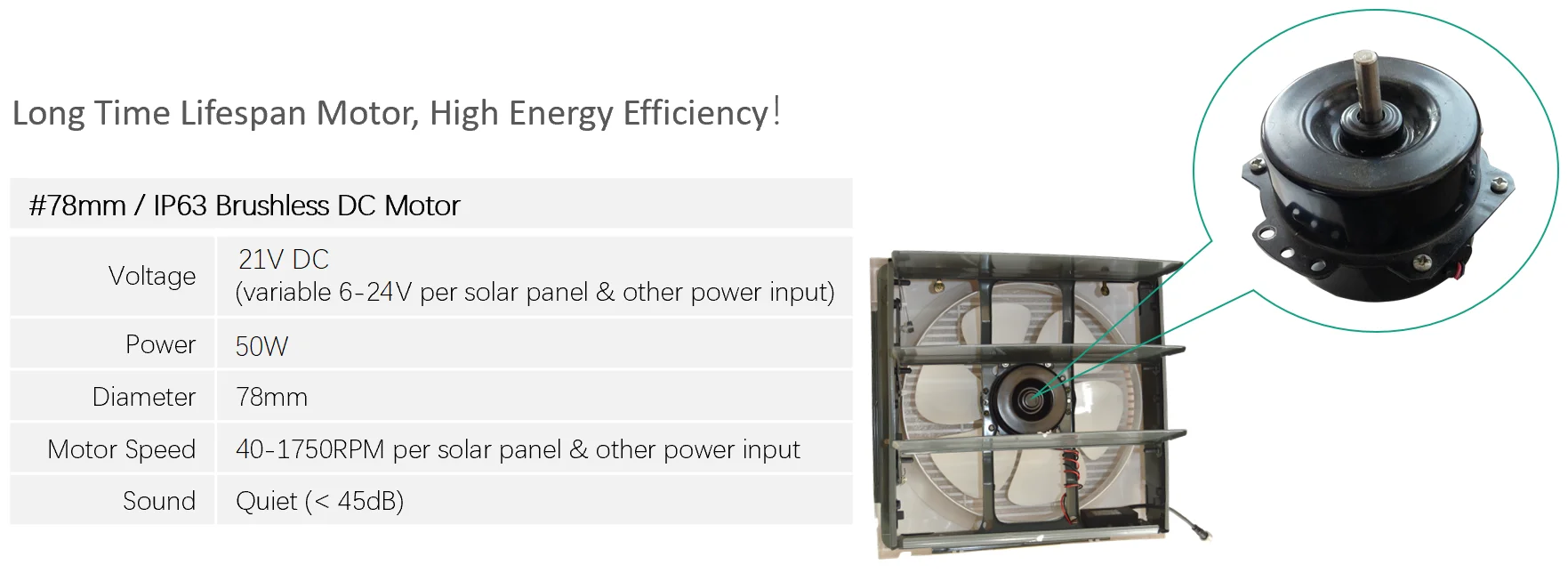

IP63 brushless DC motor,
12" ABS plastic fan blades,
front side ABS plastic louver, rear side anti-corrosive galvanization steel shutter,
fan host: 387x387x142mm (opening size: 343x343mm),
10m cable to connect fan host & solar panel,
include 18V*1.5A AC/DC Adapter, wire: 3m, to support the solar fan nonstop running even at night,
an inbuilt Smart Controller is included to take care of the power switching between solar panel & AC/DC adapter
This solar wall fan (eco solar vent / DC ventilation fan / solar power ventilation HVAC vent / solar air conditioner industrial tools HVAC system fan / ventilation fan bathroom HVAC axial fan / HVAC tools ventilation fan wall / basement ventilation fan / DC motor wall fan / attic ventilation fan / turbine ventilation fan / wall extract fan, etc.) is a developed version from its basic day-working system (SN2015009) into a Day-Night-Nonstop working system. If grid electricity is available in your location, and you need the fan to continuously always ventilate the house, please take and install this system; or, another system that contains battery to realize nonstop running at night while totally free from energy charges: SN2016024!

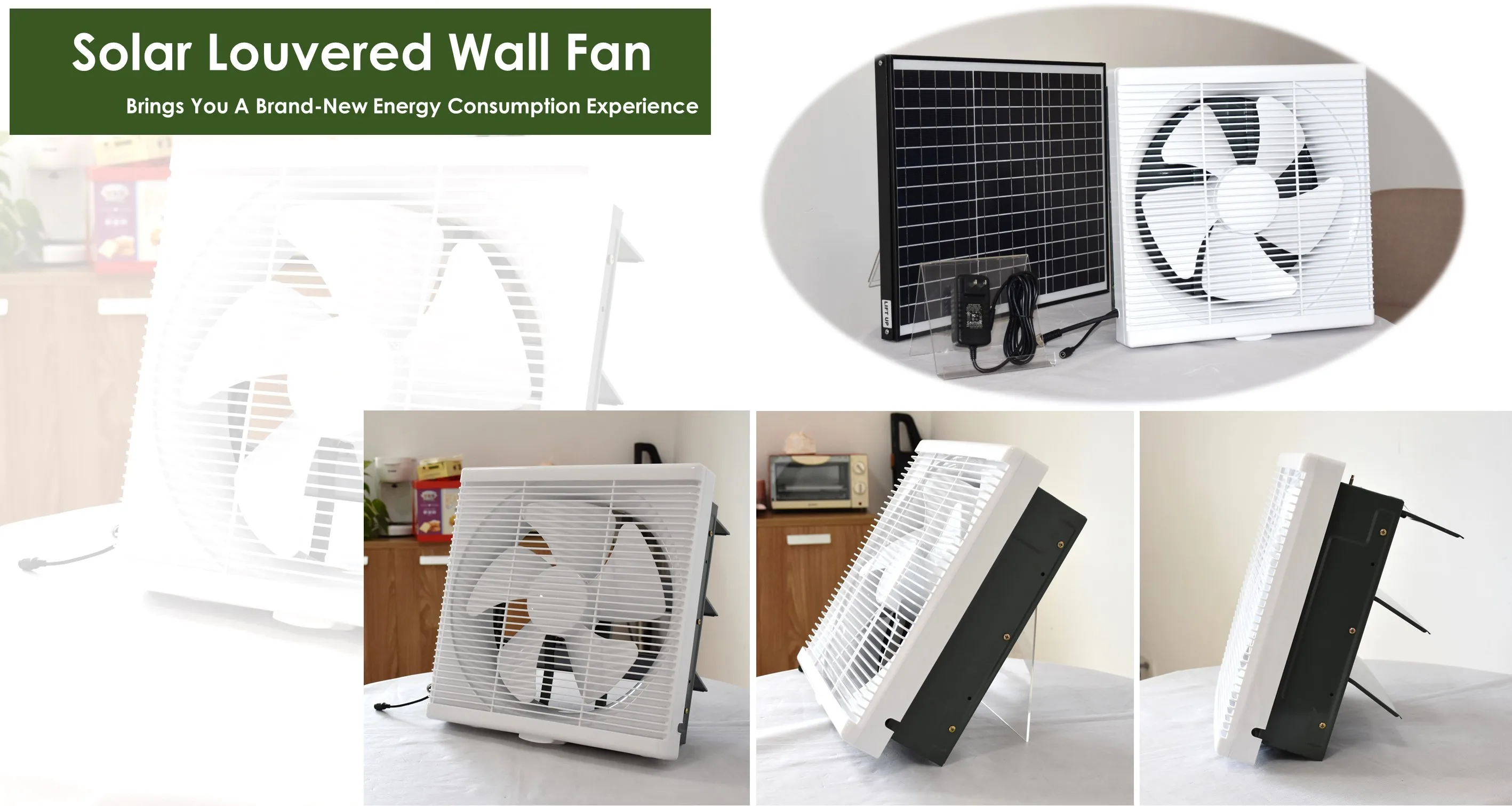

Fan Part (12 inch solar powered axial window fan with square louvers):
* ABS front covers & fan blade + galvanized steeling fan shutter body
* 2 wires with connnectors, for plug-and-play easy operations: one is to connect with its solar panel, another is to connect with its AC/DC adapter
* 2 wires with connnectors, for plug-and-play easy operations: one is to connect with its solar panel, another is to connect with its AC/DC adapter

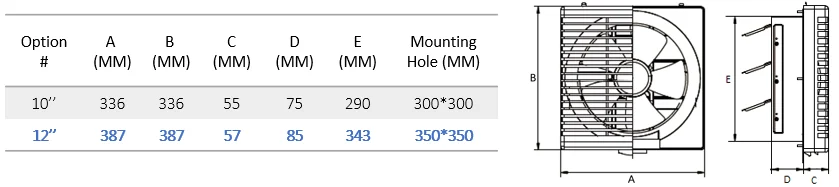

Dimension / Size Details

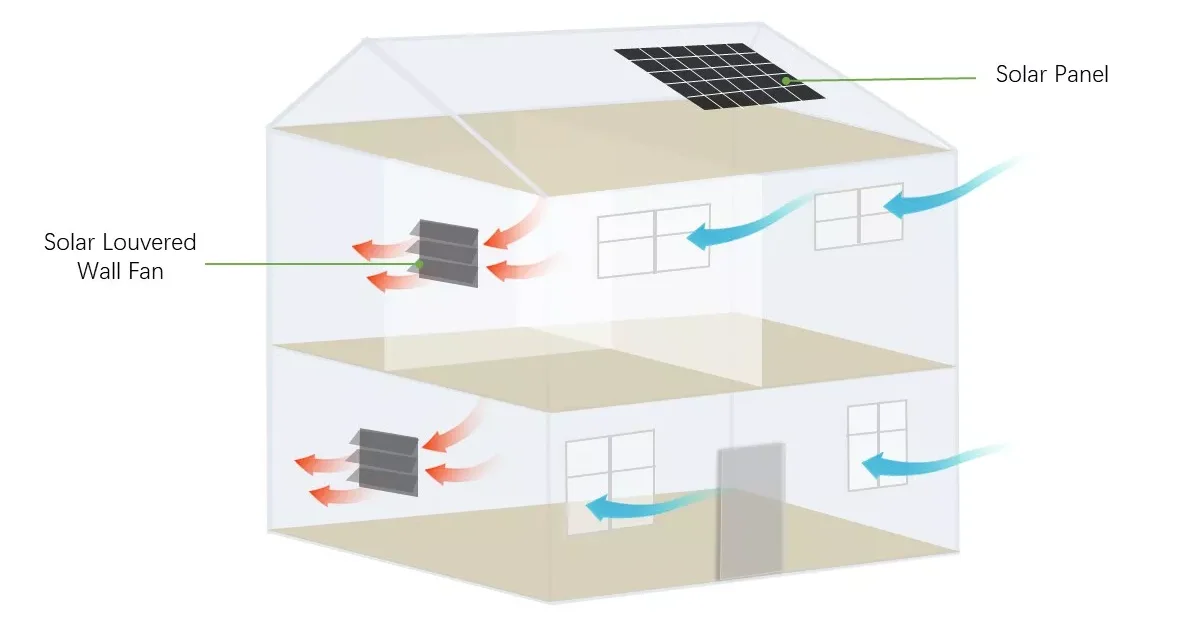

Installation & Application
3 quick steps of installing the fan:
1) take off the ABS fan covers carefully
2) fix the galvanized steeling shutter body into the wall hole by fitting its 2 screws
3) put back the fan housing covers
* You may also put an outdoor hood to prevent water leakage from rainy days!
1) take off the ABS fan covers carefully
2) fix the galvanized steeling shutter body into the wall hole by fitting its 2 screws
3) put back the fan housing covers
* You may also put an outdoor hood to prevent water leakage from rainy days!
* the motor starts running immediately once sunlight presents
* the motor speed will vary: fast when sunlight is strong, slow when sunlight is weak
* the motor speed will vary: fast when sunlight is strong, slow when sunlight is weak
Power Part (Hybrid with Solar Free Energy & Grid Commercial Electricity):
This window mounted exhaust fan connects with solar panel & AC/DC adapter, and will keep running day-night nonstop. Smartly, as long as sunshine is sufficiently there, AC/DC adapter will not supply power, which means grid electricity will not be consumed in sunny peridos!

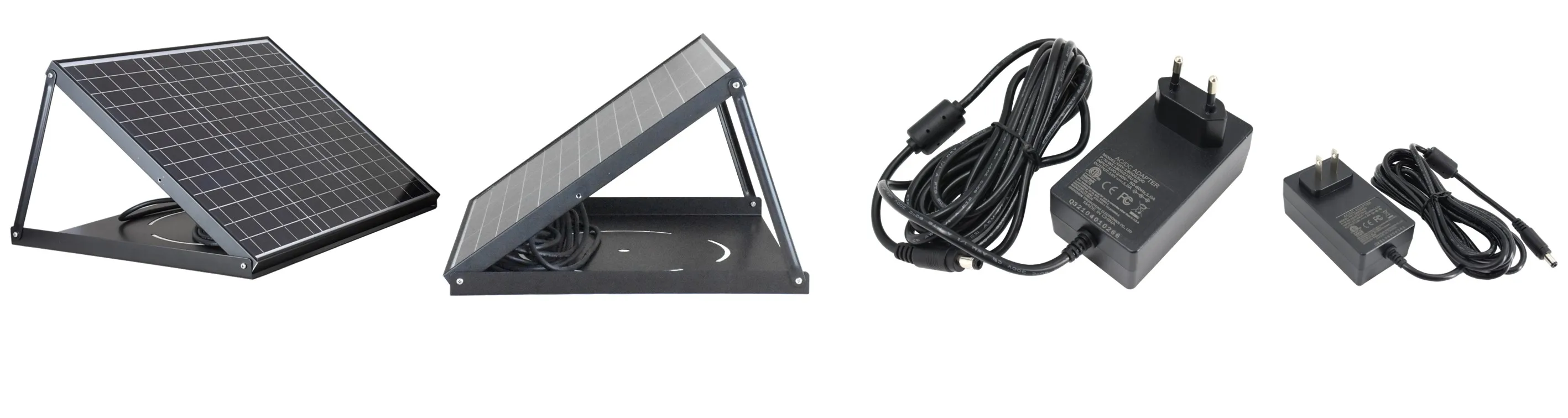

solar panel: 40W/21V
installation: angle adjustably mount outdoor on roof
cable: 10m
worktime: sunny day hours, when sunlight is available
installation: angle adjustably mount outdoor on roof
cable: 10m
worktime: sunny day hours, when sunlight is available
AC/DC adapter: 18V*1.5A
installation: plug to a wall socket indoor
cable: 3m
worktime: sunless periods, when sunlight is absent
installation: plug to a wall socket indoor
cable: 3m
worktime: sunless periods, when sunlight is absent
Smart Controller Part:
24 hours nonstop cooperating in a best way for you!
if solar panel is supplying direct power at X%
AC/DC adapter will be at (100-X)%
* there is an inbuilt controller inside the junction box to take care of the power supplies between solar panel & AC/DC adapter
AC/DC adapter will be at (100-X)%
* there is an inbuilt controller inside the junction box to take care of the power supplies between solar panel & AC/DC adapter
- you don't need to do any manual shifting operation
- you don't need to worry about any unnecessary energy consumption
-------------------------------------------------------------- ON/OFF CONTROL ---------------------------------------------------------------
This plastic & galvanize steel mixed housing high quality copper motor exhaust vent fan is equipped with Remote Controller for you to on/off it flexibly.
If you want to control it more traditionally, please ask us to equip it with Thermostat or Cable Cord with Switch accordingly:
Quality & Warranty
Solar Panel | designed lifespan > 25 years | warranty: 15 years |
AC/DC Adapter | designed lifespan > 10 years | warranty: 2 years |
if Battery | designed lifespan > 10 years | warranty: 2 years |
Fan Motor & Fan Blades | designed lifespan > 10 years | warranty: 5 years |
Fan Host | designed lifespan > 15 years | warranty: 10 years |
other electronic components | designed lifespan > 10 years | warranty: 5 years |
* the above warranty terms are based on the products be used in normal environments, no corrosive substance surrounded
