Цена:0,95 $ - 1,10 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


 plunger type electronic push button micro switch


Features:





Adopt thermostable phenolic plastic crust.





Small contact gap,snap action,high sensitivity and small operating travel.





Variety of levers.





Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric apparatus and instrument,electro motion tool etc.





Technical Specifications:


























































































ItemData
Operation speed0.1mm-1m/s
Operation frequencyMechanical240time/min
Electrical20time/min
Insulation resistance100MΩ(above)(DC500V)
Contact resistance25MΩ Initial value
Withstand voltageNon-connection wire1000VAC
Every terminal1500VAC
VibrationMisoperation10-55Hz (Amplitude)1.5mm
ImpactDurable1000m/s
Misoperation300m/s
LifeElectical100,000 times (above)
Mechanical1,000,000 times (above)
Protection degreeIP40
Ambient operating temperature-25-80°c
Humidity<85%































Ue(V)Le(A)1th(A)
AC-2501520
AC-1251520
DC-2500.30.45
DC-1250.60.75

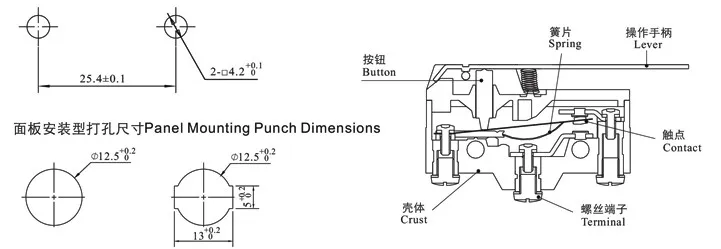

Mounting Hole Dimension  & Product Structure:

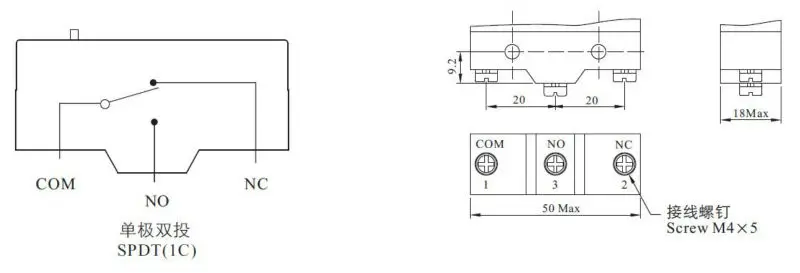

Contact Form & Termianl Form:


C Form.jpg

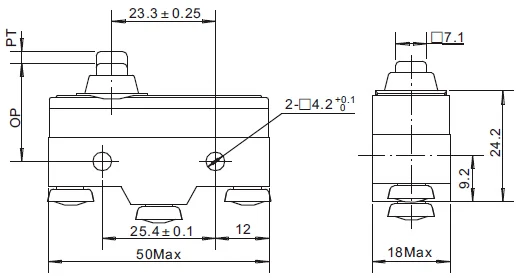

Dimension Drawing:

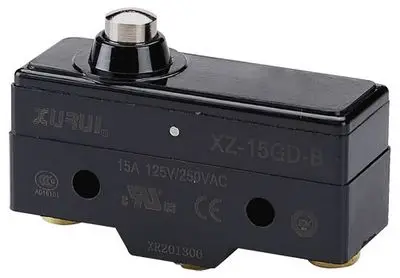

Short reed plunger model: XZ-15GD-B





XZ-15GD-B .jpgD-GDB.jpg






































OF MAX250-350g (2.45N-3.43N)
RF MIN114g (1.12N)
PT MAX0.5mm
OT MIN1.6mm
MD MAX0.1mm
OP

21.5±0.5mm

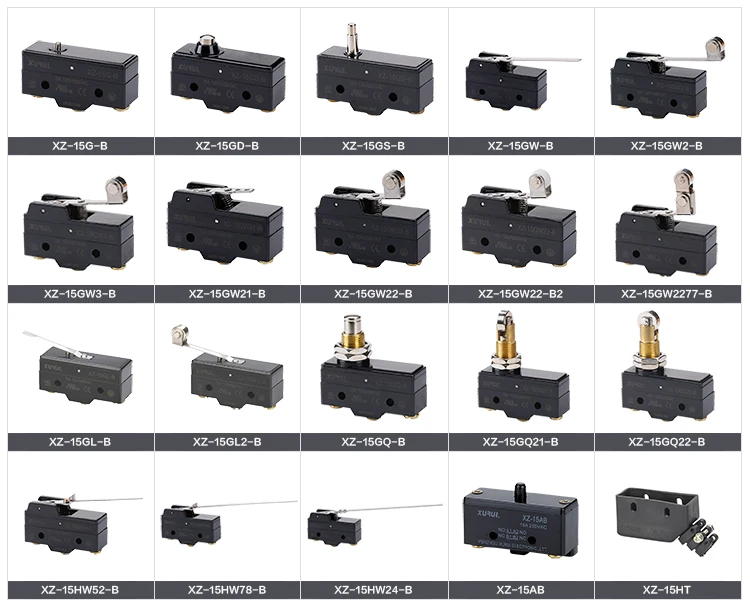

XZ-15 Full Models:





XZ-15(1)
