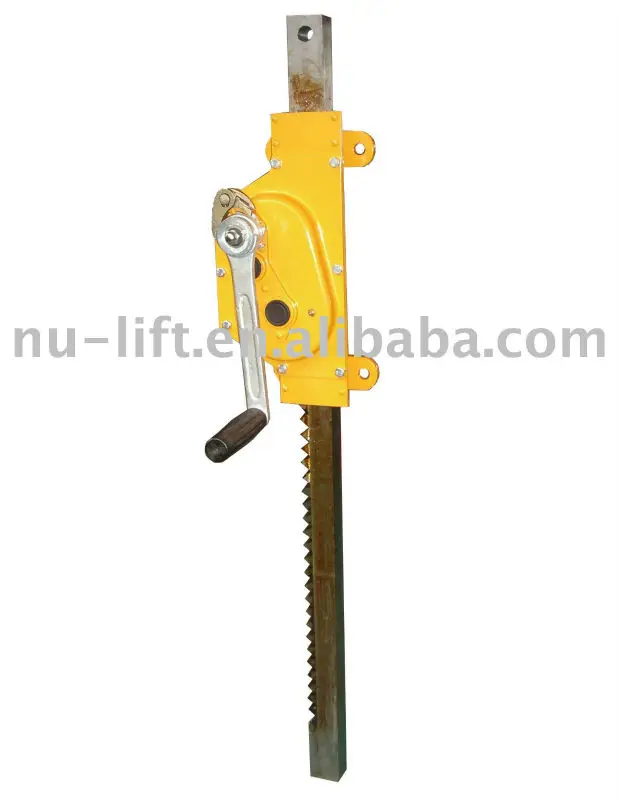

Настенная стойка и штыревой

Model

MJW1.5

MJW3

MJW5

MJW10

Rated Capacity

t

1.5

3

5

10

Overall Dimension

mm

151×156×1090

164×212×975

188×219×1170

220×274×1240

Crank Force

kg

≤28

≤28

≤28

≤40

Rack Length

mm

1090

975

1170

1240

Lift  H

mm

≥800

≥565

≥700

≥700

Net Weight

kg

13

 21

28.7

 50

Packing Dimensions

cm

17×17.5×112.5

18.5×23×101

20.5×23.5×120.5

24×29.5×127.5

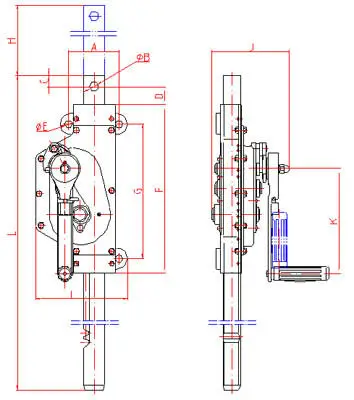

A

mm

100

120

120

140

B

mm

21

21

21

30

C

mm

20

25

25

30

D

mm

20

25

45

30

E

mm

12.5

14.5

17

21

F

mm

310

395

410

480

G

mm

260

305

320

410

I

mm

151

212

219

274

J

mm

156

164

188

220

K

mm

250

250

250

300
