Technical data:

1. Size: 1-1/2 inch(38mm)
2. Operating range: -103F to 257F (-75C to 125C) temperature range
3. Melt Point:446F (230C)

4. Expands up to 150%
5. Available up to 4" in diameter

6. Colors:black, grey, white, red, green, blue, yellow, purple, pink, orange etc.

7.Certificate: SGS, UL, RoHS approved

8.Halogen free



Advantages:

1. Economical & easy to install light weight, and flexible

2.Resists gasoline, chemicals & cleaning solvents

3.High tensile strength

4. Easy to be Cut & abrasion resistant



Description and Application:

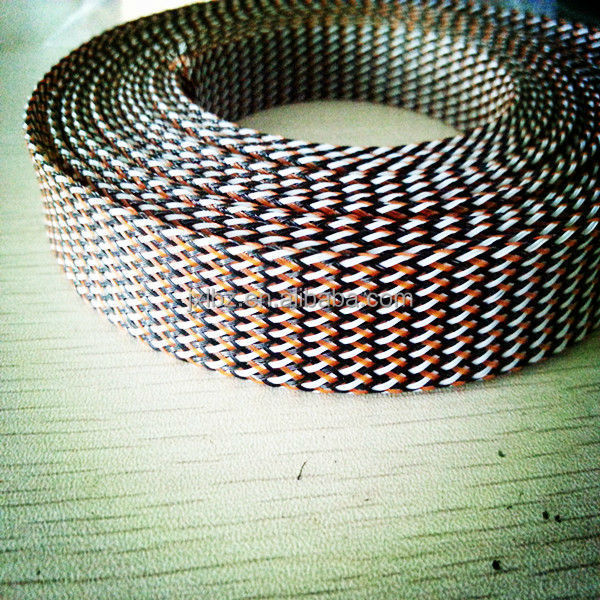

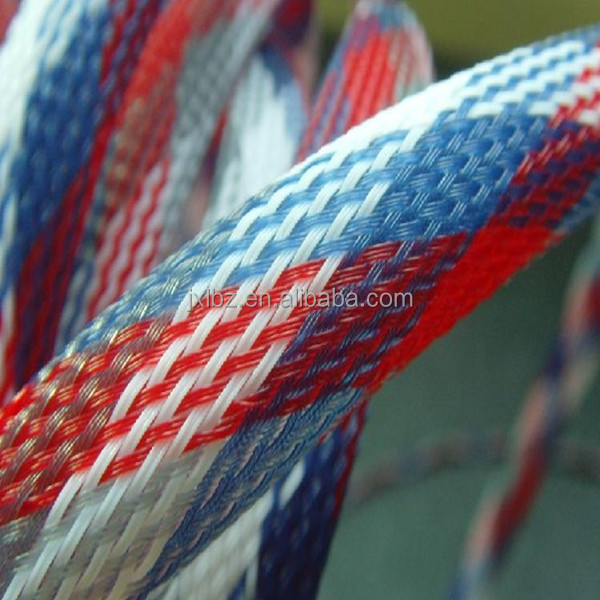

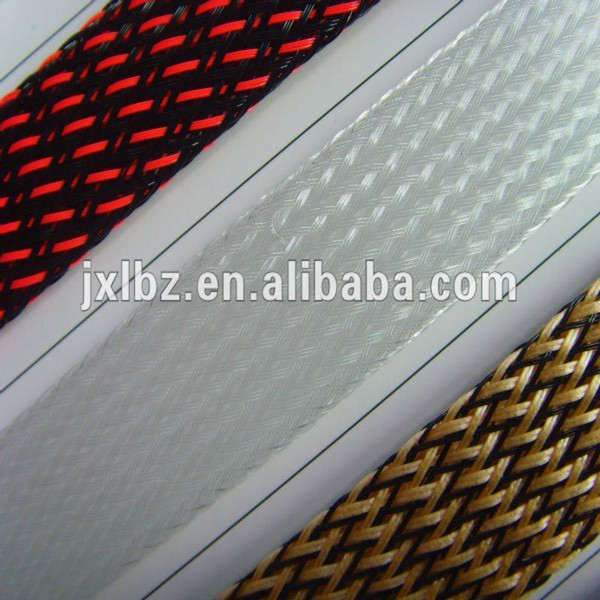

JXL PET expandable sleeving is braided from 0.20MM or 0.25MM polyethylene terepthalate (PET) monofilament yarn. The sleeving easily expands up to 150% and gently constricts around irregular shapes. It remains flexible over a wide temperature range and is resistant to chemical degradation, UV radiation and abrasion.
Expandable braided sleeves is ideal for a limitless number of electronic, automotive, marine and industrial wire management and bundling applications. Examples include engine compartment dress up, home theater wire management, customizing computer case wiring, office wire management, automotive harnesses, scuba hose protection, and many more. Threads of different colors and textures could be woven into different patterns. Each of our products is tailored to the client's business and needs.



Specification:



Part Number	SIZE		Material	Expandable  Range		Temperature Range
	mm	inch		mm	inch
JXL-PET03	3MM	1/8"	Polyester(PET)	2.4--6.4	3/32"--1/4"	-103°F-- 257°F	-75°C-- 125°C
JXL -PET06	6MM	1/4"	Polyester(PET)	3.2--11.1	1/8"--7/16"	-103°F-- 257°F	-75°C-- 125°C
JXL -PET08	8MM	5/16"	Polyester(PET)	6.4--12.7	1/4"--1/2"	-103°F-- 257°F	-75°C-- 125°C
JXL -PET10	10MM	3/8"	Polyester(PET)	4.8--15.9	3/16"--5/8"	-103°F-- 257°F	-75°C-- 125°C
JXL -PET12	12MM	1/2"	Polyester(PET)	6.4--19.1	1/4"--3/4"	-103°F-- 257°F	-75°C-- 125°C
JXL -PET16	16MM	5/8"	Polyester(PET)	9.5--25.4	3/8"--1"	-103°F-- 257°F	-75°C-- 125°C
JXL -PET19	19MM	3/4"	Polyester(PET)	12.7--31.8	1/2"--1-1/4"	-103°F-- 257°F	-75°C-- 125°C
JXL -PET25	25MM	1"	Polyester(PET)	15.9--38.1	5/8"--1-1/2"	-103°F-- 257°F	-75°C-- 125°C
JXL -PET32	32MM	1 -1/4"	Polyester(PET)	19.1--44.5	3/4"--1-3/4"	-103°F-- 257°F	-75°C-- 125°C
JXL -PET38	38MM	1 -1/2"	Polyester(PET)	25.4--63.5	1"--2-1/2"	-103°F-- 257°F	-75°C-- 125°C
JXL -PET45	45MM	1 -3/4"	Polyester(PET)	31.8--69.9	1-1/4"--2-3/4"	-103°F-- 257°F	-75°C-- 125°C
JXL -PET51	51MM	2"	Polyester(PET)	38.1--88.9	1-1/2"--3-1/2"	-103°F-- 257°F	-75°C-- 125°C
JXL -PET64	64MM	2 -1/2"	Polyester(PET)	44.5--114.3	1-3/4"--4-1/2"	-103°F-- 257°F	-75°C-- 125°C
JXL -PET76	76MM	3"	Polyester(PET)	63.5--120.7	2-1/2"--4-3/4"	-103°F-- 257°F	-75°C-- 125°C
