Product Description


Product Application

Ductile iron conduit bender head with handle has ductile iron construction for exceptional durability and rugged construction that withstands a lifetime of heavy use. Bends conduit pipes to fit around any corner, ceiling, wall or irregularly shaped passageways. It features precision marks locating degree scale, star and arrow and rim notch for perfect bends every time.



Produce
Conduit Bender
Material
Ductile Iron
Type
With handle or without
Size
1/2" to 1-1/4"
Usage
For bending EMT or Rigid conduit


- Ductile iron construction for exceptional durability and rugged construction that withstands A lifetime of heavy use
- Rugged, steel construction handle with baked-on blue enamel finish
- Markings are raised and cast into the bender body on both sides for easy visibility
- Deeply serrated step helps prevent slippage when applying force
- Grooved internal hook surface helps prevent conduit from slipping
- Flat hook surface provides stable starting point


How to use

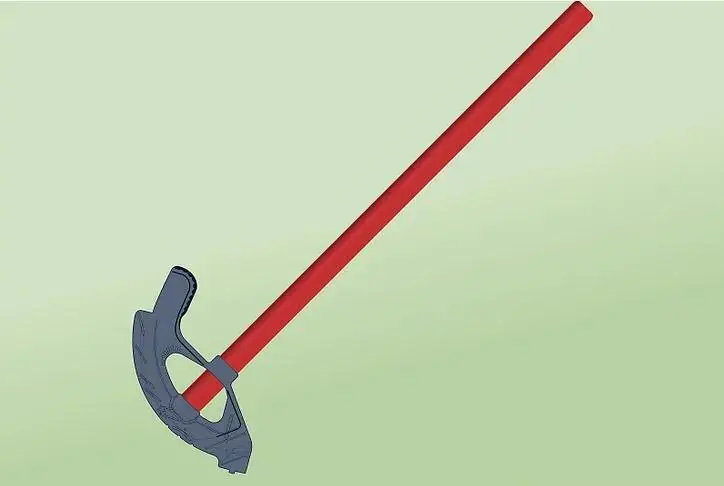

Select the correct bender.
Make sure your bender is designed for EMT or Rigid conduit of the size you are using. Even a universal bender may require attaching a shoe and/or follow bar designed for the conduit. This article focuses on hand benders. If you are using a hydraulic or power bender (recommended for conduit with a nominal size
over 2 inches), find instructions for your specific bender model. Hickey benders tend to crush or kink conduit. Use a bender with a curved track for the conduit to slot into.

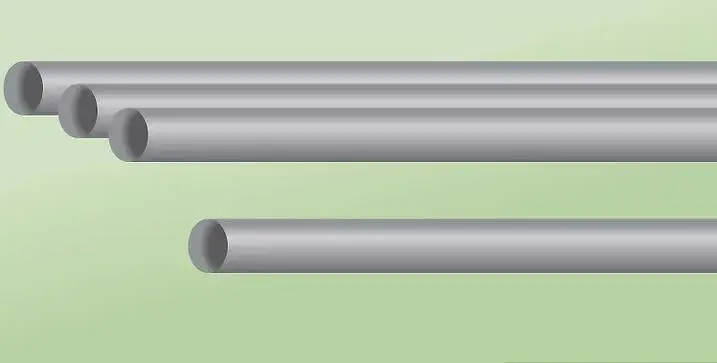

Measure the desired length of the stub.
A stub up bend is a 90º bend near the end of the conduit. Measure the distance on the wall from the end of the conduit to the position of the bend.


Subtract the take-up height.
The radius of the bend will add extra length to the bent end of your conduit. Take this into account by subtracting a certain amount from your measurement:
If you are using
½" EMT conduit, subtract 5" (12.7 cm).
¾" conduit: subtract 6" (15.2 cm).
1" conduit: subtract 8" (20.3 cm.
1¼" conduit: subtract 11" (27.9 cm).

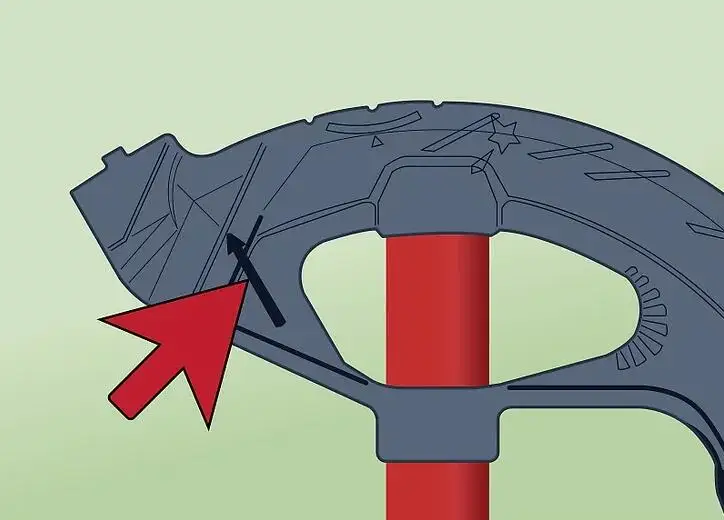

Line the arrow mark on your bender to this measurement.
Place your conduit on the floor. Measure from the end of the conduit to the new length you calculated, and mark the conduit at this point. Line the arrow symbol on your bender up so it points to this mark. Slot your bender onto the conduit. Make sure the bender handle is angled toward the end you measured from.
If your bender does not have an arrow symbol, you may need to find the instructions for you.

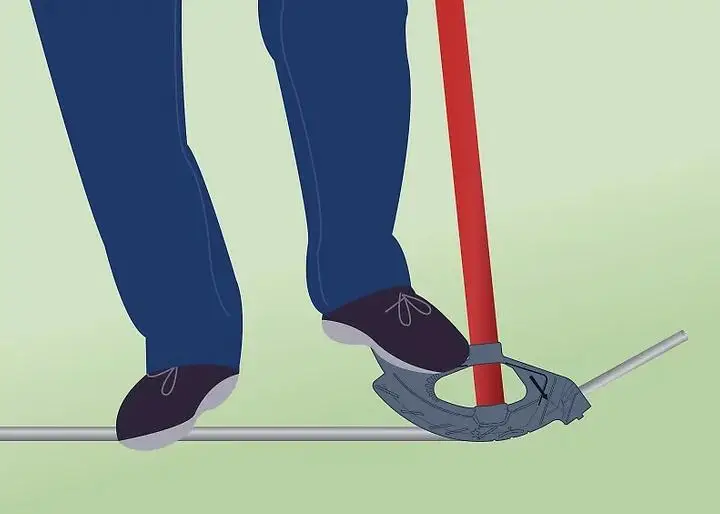

Press down on the foot pedal to bend the conduit.
Your foot should provide most if not all of the pressure. Without pulling, use one hand to steady the handle on your bender, and the other to steady the conduit end once it rises within reach. Apply firm, constant foot pressure, as a pause could create a kink in your conduit.[3] Bend until the end of the conduit is vertical, or very slightly past vertical.
If your conduit is 1¼" or larger, you may need an assistant to operate the handle.

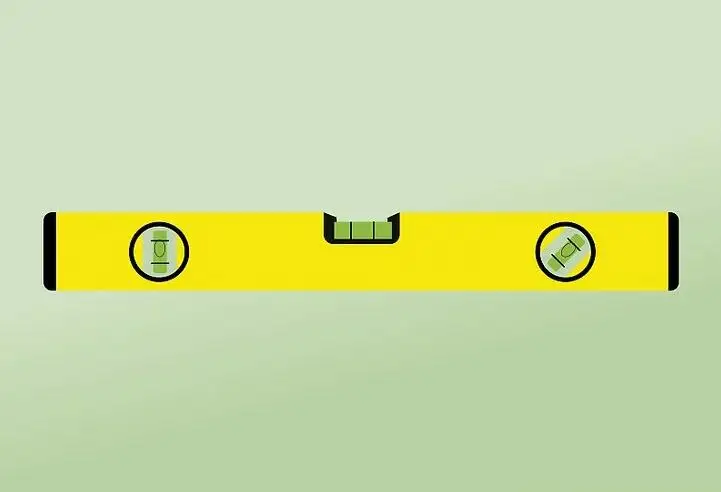

Confirm the bend with a spirit level (recommended)
Attach a level to the vertical length of conduit. If necessary, make small adjustments to the bend until the bubble of the level is centered. The conduit will flex back slightly after you remove the bender, so bending slightly too far will provide the best results


*References: www.wikihow.com


Our Company




FAQ


Q1: Do you have UL certificate?
A: Yes,most products are UL listed.


Q2: Are you manufacture?
A: Yes,we have factory and warehouse in Fuyang Hangzhou city.


Q3: How can I request product samples?
A: The samples are free but courier charge will be collected. Please send us samples list and courier account number.


Q4: How can I request a product catalog?
A: The hard copies of catalogs are free but courier charge will be collected.

     The PDF catalog we can send to you by email or WeTransfer.


Q5: What is your payment terms?
A: 30% T/T deposit,balance against B/L faxed copy;

    Irrevocable L/C 100% at sight and irrevocable.


Q6: How about the delivery time?
A:  Accord to your order list and quantity,mostly delivery in 30days.


Q7. Why choose us?
1. We are China Leading supply of Electrical Pipe,Strut Channel and Fittings.
2. PST is famous brand and already approved by project engineer in different country.
3. Inspected by the Inspection Institution of UL Certification.
4. 100% QC inspection before Shipment.
5. Best Quality & Best Service with Competitive price.
