Ударопрочный ПЭТ Плетеный защитный рукав для
- Категории: Cable Sleeves >>>
- Поставщик: Shenzhen,JXL,Weaving,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

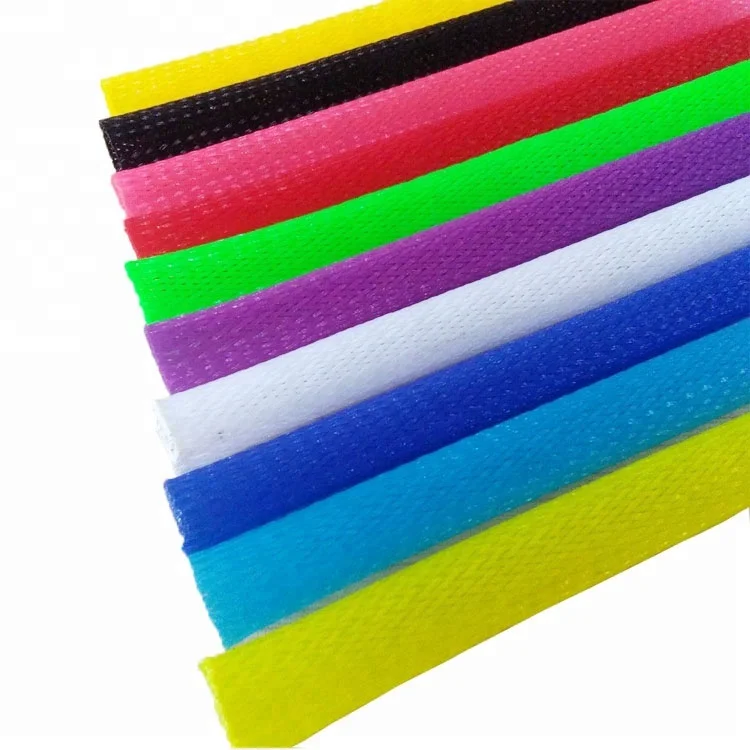

JXL PET expandable sleeving is braided from 0.20MM or 0.25MM polyethylene terepthalate (PET) monofilament yarn. The sleeving easily expands up to 150% and gently constricts around irregular shapes. It remains flexible over a wide temperature range and is resistant to chemical degradation, UV radiation and abrasion.

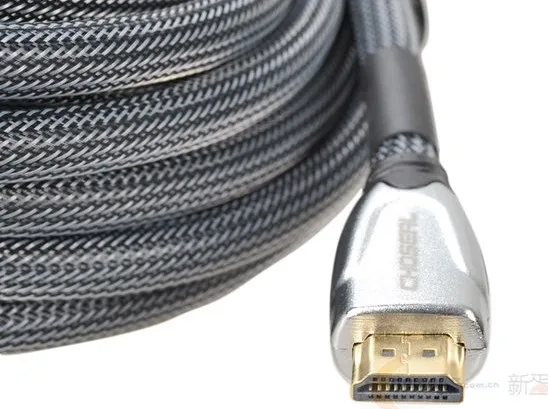

Expandable braided hose is ideal for a limitless number of electronic, automotive, marine and industrial wire management and bundling applications. Examples include engine compartment dress up, home theater wire management, customizing computer case wiring, office wire management, automotive harnesses, scuba hose protection, and many more. Threads of different colors and textures could be woven into different patterns. Each of our products is tailored to the client's business and needs.
Fray Resistant PET Braided sleeving:
Economical & easy to install light weight, and flexible
High tensile strength
Easy to be Cut & abrasion resistant
Expands up to 150%
Halogen free
resists gasoline, chemicals & cleaning solvents
SGS, UL, RoHS approved
available up to 3" in diameter
-103F to 257F (-75C to 125C) temperature range
melt temperature 446F (230C)
Colors: black, grey, white, red, green, blue, yellow, purple, pink, orange etc
Specifications:
Part Number | SIZE | Material | Expandable Range | Temperature Range | |||
mm | inch | mm | inch | ||||
JXL-PET03 | 3MM | 1/8" | Polyester(PET) | 2.4--6.4 | 3/32"--1/4" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET06 | 6MM | 1/4" | Polyester(PET) | 3.2--11.1 | 1/8"--7/16" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET08 | 8MM | 5/16" | Polyester(PET) | 6.4--12.7 | 1/4"--1/2" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET10 | 10MM | 3/8" | Polyester(PET) | 4.8--15.9 | 3/16"--5/8" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET12 | 12MM | 1/2" | Polyester(PET) | 6.4--19.1 | 1/4"--3/4" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET16 | 16MM | 5/8" | Polyester(PET) | 9.5--25.4 | 3/8"--1" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET19 | 19MM | 3/4" | Polyester(PET) | 12.7--31.8 | 1/2"--1-1/4" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET25 | 25MM | 1" | Polyester(PET) | 15.9--38.1 | 5/8"--1-1/2" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET32 | 32MM | 1 -1/4" | Polyester(PET) | 19.1--44.5 | 3/4"--1-3/4" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET38 | 38MM | 1 -1/2" | Polyester(PET) | 25.4--63.5 | 1"--2-1/2" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET45 | 45MM | 1 -3/4" | Polyester(PET) | 31.8--69.9 | 1-1/4"--2-3/4" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET51 | 51MM | 2" | Polyester(PET) | 38.1--88.9 | 1-1/2"--3-1/2" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET64 | 64MM | 2 -1/2" | Polyester(PET) | 44.5--114.3 | 1-3/4"--4-1/2" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET76 | 76MM | 3" | Polyester(PET) | 63.5--120.7 | 2-1/2"--4-3/4" | -103°F-- 257°F | -75°C-- 125°C |
