Product Description

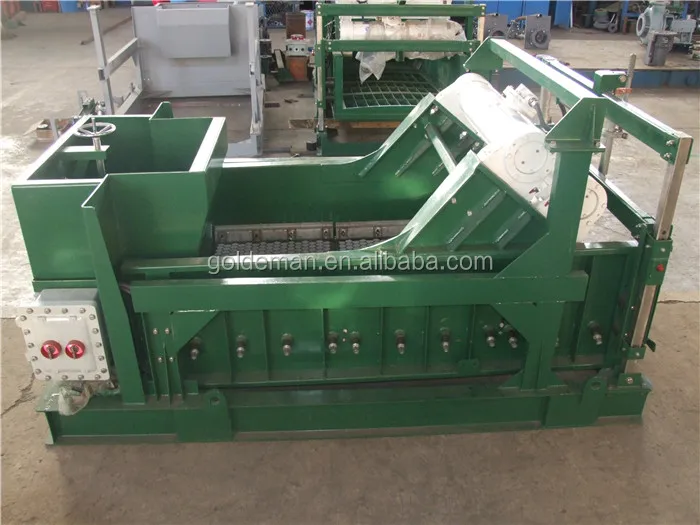

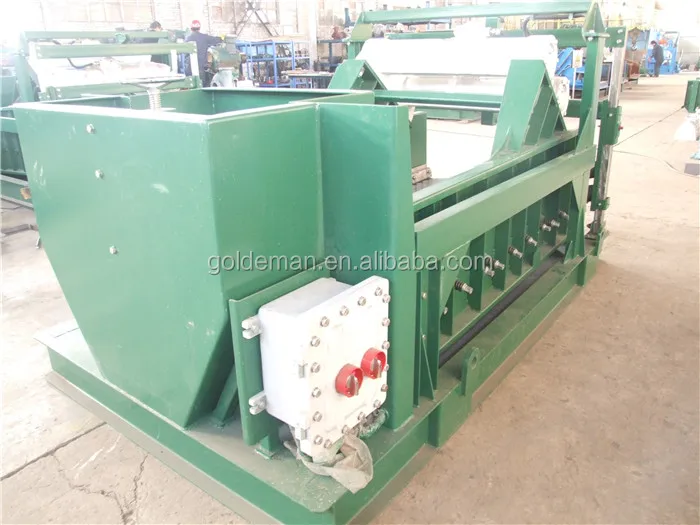

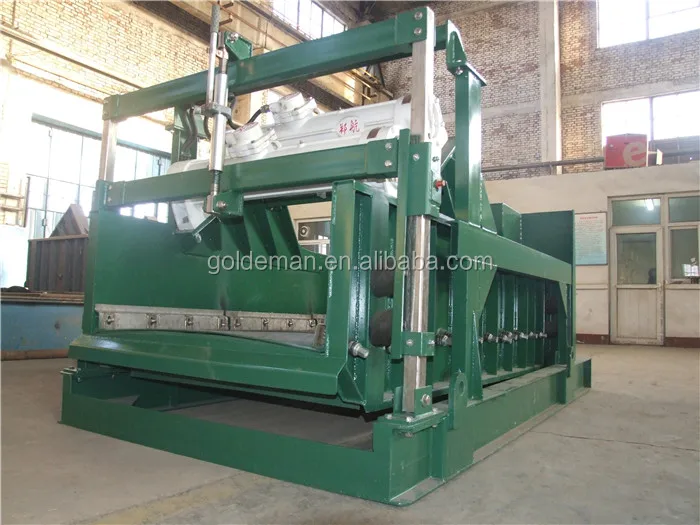

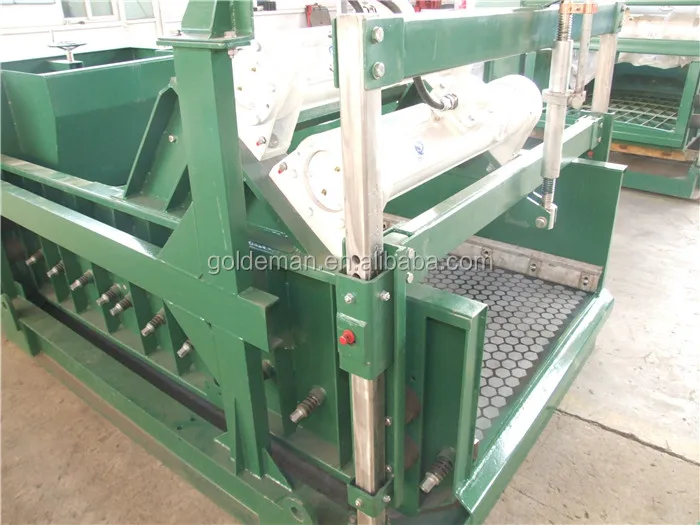

Drilling mud fluids solids control shale shaker
The design of our Shale Shaker was derived from observation and operation of similar products. It contains three of our own patents, including two types of products: the linear and the flat elliptical. This shaker features: high vibration intensity; large screen surface area; adjustable discharge angle during drilling; simple compact structure; reliable, great performance at a competitive price!
| Model | ZDS280-3P | ZDHS240-3P | ZDS220-3P | ZDS150-2P | ZDS270-4P-PTS | ZDS270-FC |
| ZDS280-3P-E | ZDS240-3P-E | ZDS220-3P(M) | ||||
| Electric power | 2*2.2KW | 2*2.2KW | 2*2.2KW | 2*1.1KW | 2*2.2KW | 2*2.2KW |
| Frequency | 24.3 | 24.3 | 24.3 | 24.3 | 24.3 | 22.3~26.6 |
| Explosion proof rate | dIIBT4 | dIIBT4 | dIIBT4 | dIIBT4 | dIIBT4 | dIIBT4 |
| Mesh size | 32.8*45.28 (3pieces) | 700*1050*3 | 700*1050*2 | 4*0.585*1.165 | 4*0.585*1.165 | |
| Shaking intensity (g) | 7.2 | 7.2 | 7.2 | 7.2 | 6.5~7.2 | 5.6~8 |
| Amplitude | 5.8 | 5.8 | 5.8 | 5.8 | 5~6 | 5~6 |
| Adjustable range | -2°~6° | -2°~6° | -2°~6° | -15°~7° | -15°~7° | |
| Weight | 3150*2010*1700 | 2620*2010*1700 | 2620*1880*1700 | 1890*1840*1460 | 2965*2005*1700 | 2965*1883*1700 |
| Dimension | 2250 | 2050 | 1950 | 1230 | 2000 | 2050 |
