Granulation machine for waste tyre recycle to produce rubber granule, tire granulator
Product Description

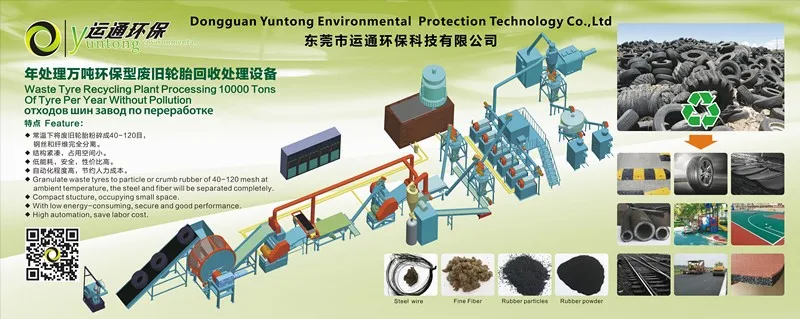

Scrap tire recycling machine
To have a profitable business in this very demanding industry, knowledge and experience are the keys. At Phoenix Industries we offer our customers a wide variety of services and technical expertise that include local market analysis, end product development, economic projections and plant design all the way through to equipment acquisition, installation and project management.
| Input Capacity: | 1300 KG/Hour (customized per client request) |
| Tire processable: | Radial& Bios Tires under Diam. less than 1200mm |
| Output Size: | 5mm Rubber granules |
| Total Power Rated: | 251.3 KW*65% = 163.3KW |
| Voltage: | 380V 3 Phase, 60Hz |
| Operating personnel: | 4 staffs / shift |
| Net Weight: | 34 Ton |
| Plant Space :(m) | L35*W7*H8 |
| Cooling Water Storage:(m) | L2*W1.8*H2 to be built by Buyer |
| Cooling system | Circular cooling water syste,Water tank needed:4x1.8x2m |
| Control system | PLC fully automatic controller |
Over 16 year focasing on developing and manufacturing of waste tire recycling machine. The 1st company in China owned the unique technology for full automatic waste tire recycling line, providing the turnkey solution.
The tire recycling system is used to produce rubber granual and rubber powder under normal temperature with steel and fiber free.

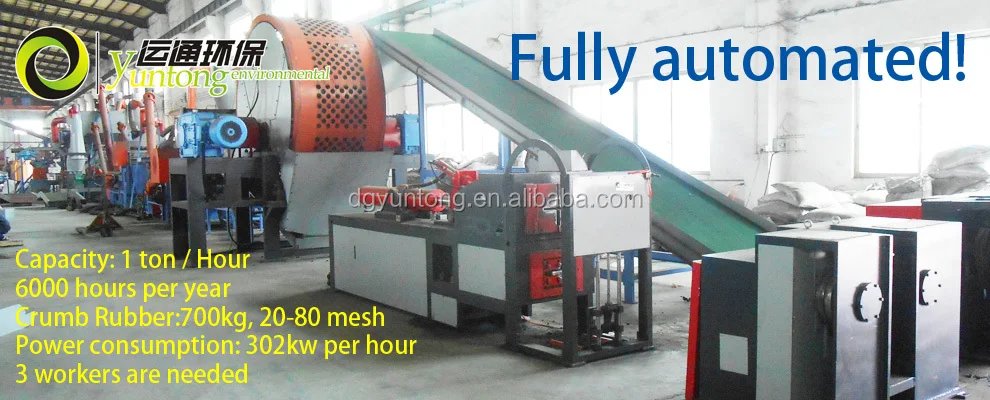

Overlook-Yuntong Environmental Machinery
Product Description

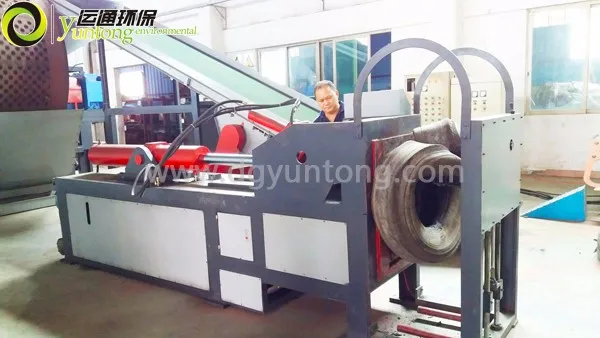

Debeader to remove the wire bead before the tire goes to the shredder, to reduce the damage during process, and extend the blade lifespan.

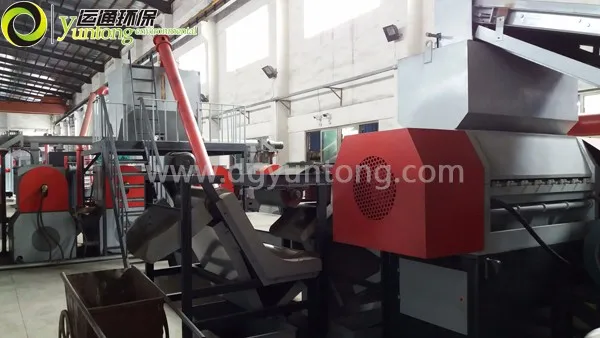

Granulator

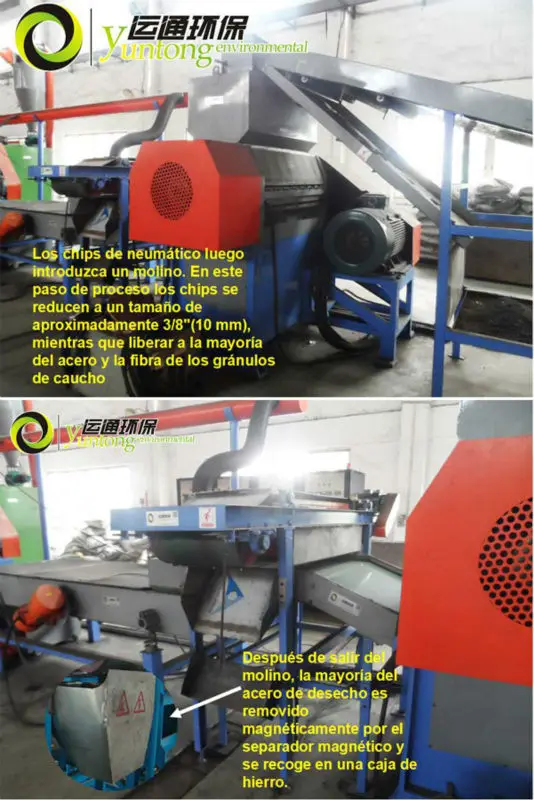

Electro Magnetic Separator to separate the steel

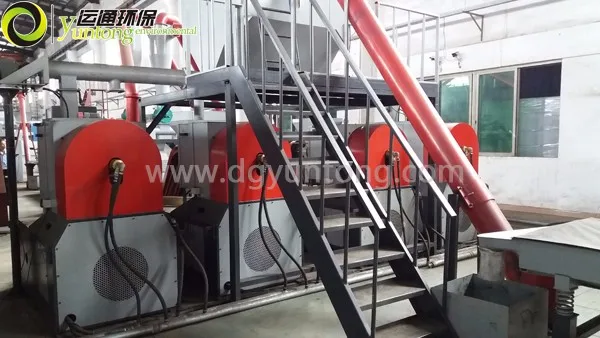

Grinder - for deeper processing the rubber granule to rubber powder, 20-80 mesh, customized per clients request.

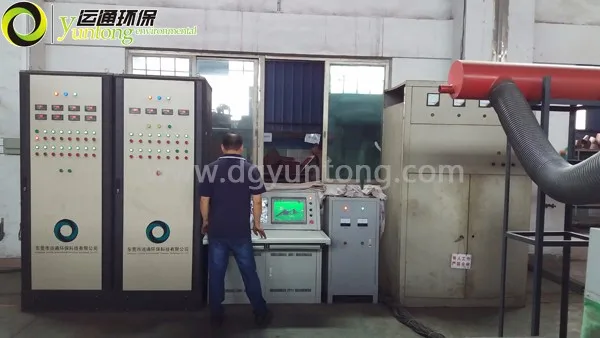

PLC control system - full time monitory, all machines controlled independently.

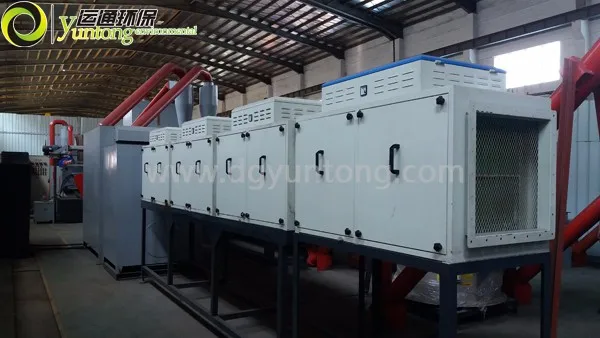

Plasma air purifying system
Our machines equipt with full set purify system, and can meet the enviromental standard, the production factory is very clean, no dust, no smoke, no fibers fly.

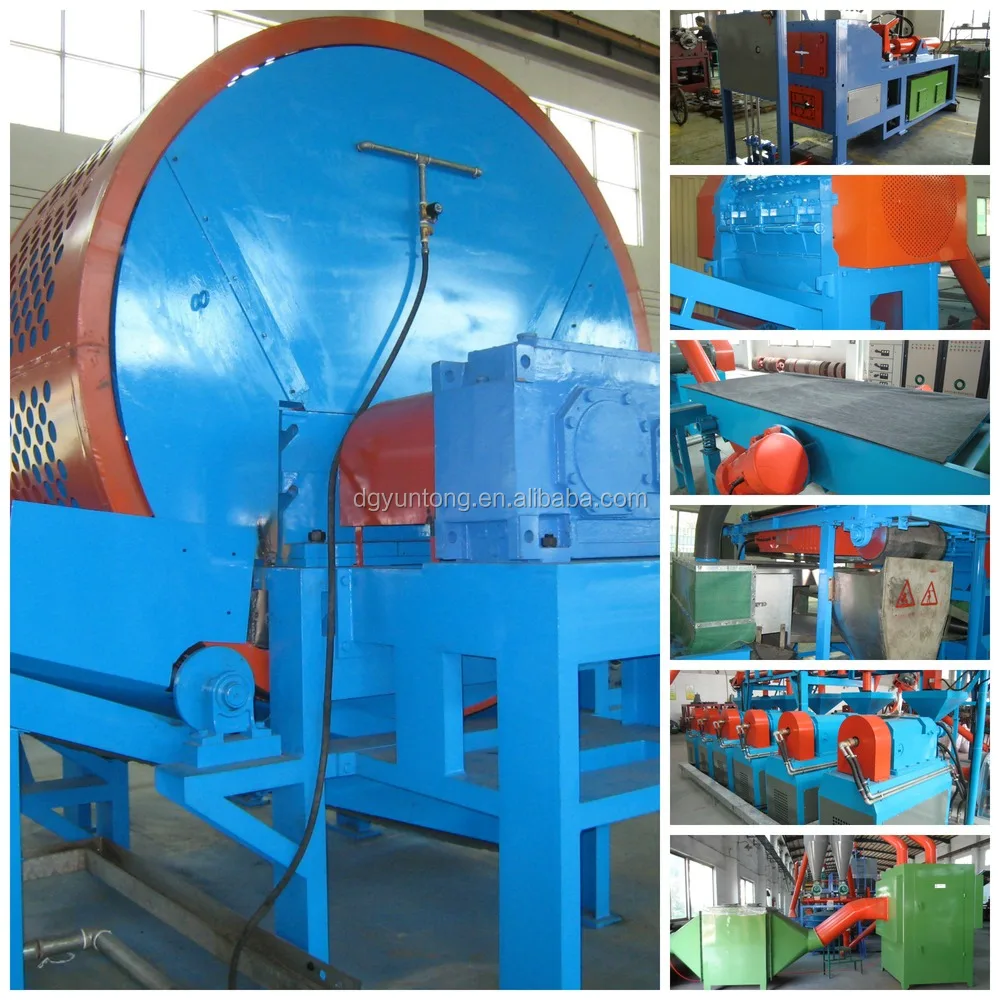

Sample production line in workshop

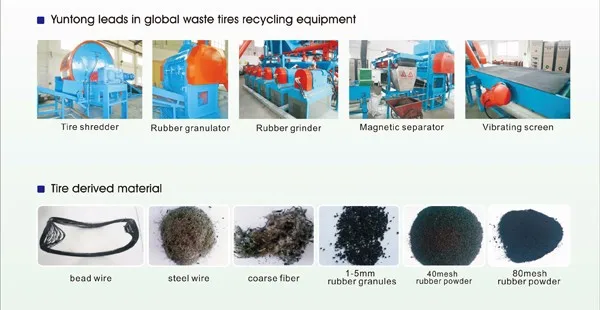

Application of rubber granule and rubber powder
5-10 mesh (about 2-4 mm) : | School playground, athletic track,rubber floor/tiles |
| 10-20 mesh: | rubber floor tile, plastic runway, tennis court, basketball court, volleyball court, golf course |
| 30-40 mesh: | Reclaimed rubber, Modified asphalt additives,rubber gloves ,etc. |
| 60-80 mesh: | Sleepers, rubber sheet, waterproofing materials, reclaimed rubber, tire inner pad, slow road arch, sealing strip, buffer, plastic foam, pearl pads, rubber piston |

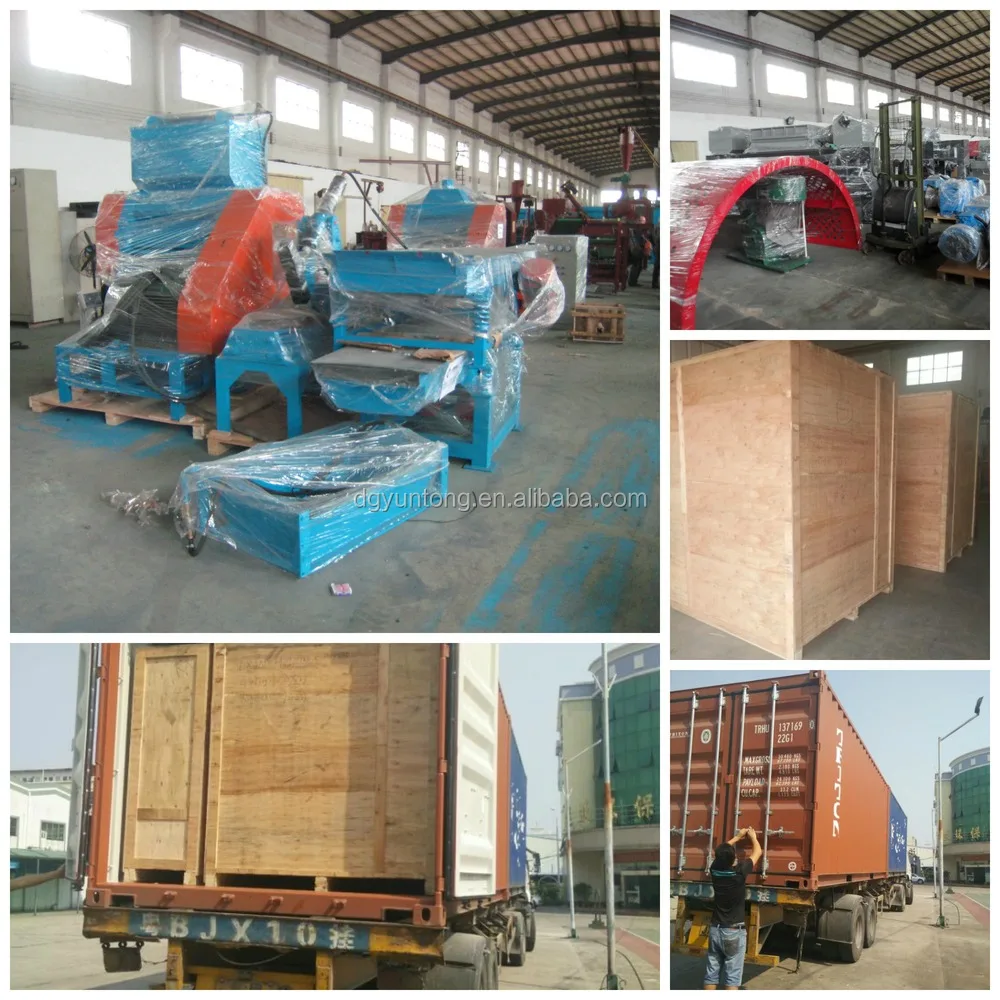

Packaging & Shipping
Packaging of our machine:
1/wrapped well with plastic film
2/then packed tightly with customized woodcases
Our Services
Yuntong Environmetal Machinery Service
1. Guarantee: 13 months from shipping date
2. 24 hours technical support on line.
3. Providing door-to-door service.
4. English operating panel
Our parts and field service engineer are highly trained and have the resources to help our customers get their plants running and keep them running at peak performance. We stock a large inventory of replacement parts for immediate worldwide shipping.
FAQ
FAQ about investing waste tire recycling project
1. What is the capacity?
Customized per your request
2. What is the output material and the percentage? How many rubber powder and rubber granule I can get?
Nowrmally 1Ton tire will produce 70% (700kgs) rubber granule / rubber powder; steel and fiber 30%(300kgs).
Customized per your request
2. What is the output material and the percentage? How many rubber powder and rubber granule I can get?
Nowrmally 1Ton tire will produce 70% (700kgs) rubber granule / rubber powder; steel and fiber 30%(300kgs).
Pls. provide following infomation to your sales representative for personalized production line design and quotaion.
1. What kind of tire you want to process, radial tire(truck tire) or fiber tire(passenger tire). If for both type, what would be the percentage of each kind?
2. The capacity per hour?
3. You want to produce rubber granules or powder? The granule size(6-12mm, 1-5mm) or powder(20-100 mesh), which would you prefer?
2. The capacity per hour?
3. You want to produce rubber granules or powder? The granule size(6-12mm, 1-5mm) or powder(20-100 mesh), which would you prefer?
4. Full automatic or semi automatic?
5. The tire size? Our standard machine for diameter ≤ 1200mm
Company Information
Fanny Qin
Yuntong Environmental Protection Technology Co., Ltd
www.recycleyuntong.com
H/P: +86 188 1681 0765
Whatsapp/Wechat: +86 136 8600 6318
Tel:+86-769-81550838
Fax:+86-769-81550828
Email: sales02(at)dgyuntong.com
