PTFE Corrugated Tube,virgin tube,PTFE tubing

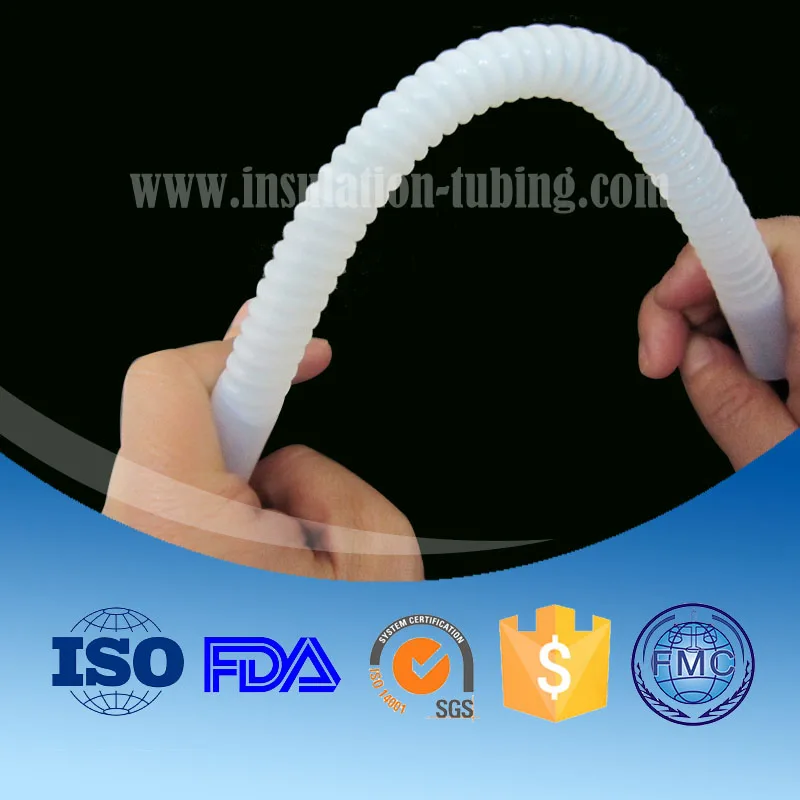

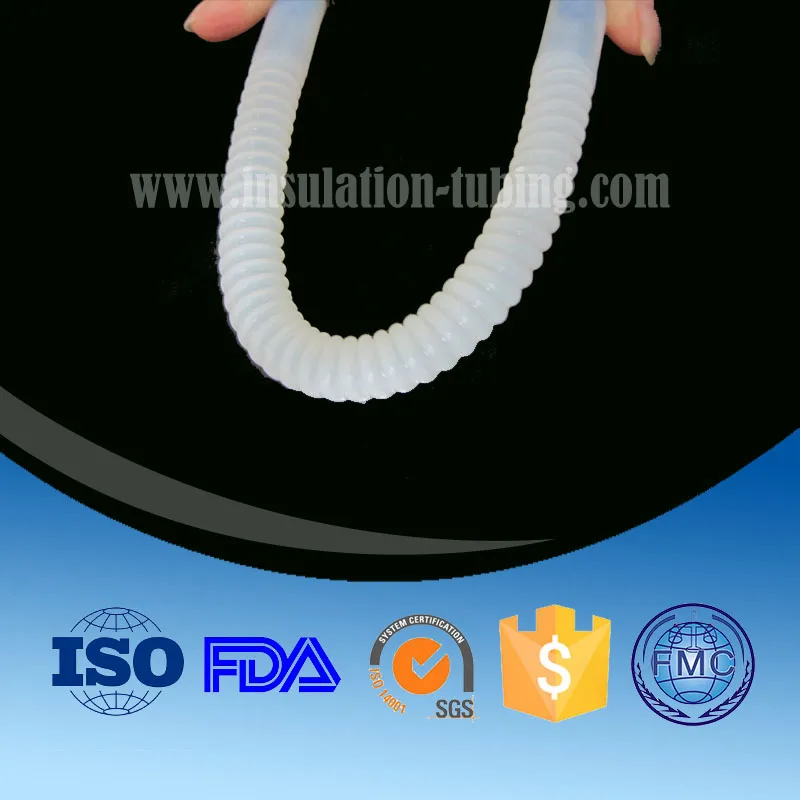

PTFE Corrugated Tube



PTFE corrugated electric conducting tube is made from dispersion PTFE resin and is corrugated by a special tool. It has the properties of abrasion-resistant under the condition of high and low temperature of -55 to 210 and chemical-resistance and can be used as protective sleeve to protect shield cable and bunch of wires in engine.



Have excellent high temperature resistance ,corrosion resistance performance ,and have long using time .

It is widely used in pesticides ,sulfuric acid filling machine ,food fillers ,oils filling machine ,

Medical equipment ,all kinds instrumentation, automotive oil tube and etc.

LCD manufacturing equipment

Single fiber light-emitting whole body single-ended tube

Heat exchanges, steam piping

High-purity reagents pipeline

A variety of corrosive media(harsh solvents)pipeline

Submersible motor with a slot insulation tube

Air-conditioning control wiring harness assembly

Fluoride O-rings plastic tube



Utilization Characteristic:



High and low temperature resistance

-200℃~260℃

Not sticky, waterproof ,oil proof

Security and insulation

Under 60HZ 60MHZ ,dielectric constant is 2.1

Even if firing ,and it will be still insulate

Volume resistance >1018 Ωm

Surface resistance >2×1013Ω

Voltaic Arc >165 seconds ,insulation

Only under high temperature ,fluorine and alkali will have chemical reaction, no reaction with all of other thick and thin inorganic acid, alkali ,ester

Low water absorption<0.01%

Non inflammability

Non inflammability in air (oxygen index >95vol.%)

High transparency

Lowest refractive index in plastic material

Weather resistance

Under ozone and sunshine for long time

Easy to process for second time

Self-close,self joining ,flanging, and it can make into coil pipe

PTFE Corrugated Tube Specification

NO	spec.	ID	OD	ID for end	OD for end	wall
1	DN6	4.5	8	6	8	1
2	DN8	5.3	9.8	8	10	1
3	DN9	6.2	11.2	9.5	11.5	1
4	DN10	7.3	11.5	10	12	1
5	DN13	10.5	14.5	13	15	1
6	DN14	9.8	15.3	14	16	1
7	DN15	12.5	17.5	15	18	1.5
8	DN16	13	17.5	16	18	1
9	DN16	12	18.5	16	19	1.5
10	DN20	14	22.5	20	23	1.5
11	DN22	16	24.5	22	25	1.5
12	DN25	19.5	27.5	25	28	1.5
13	DN32	26	35	32	36	2







Uses:

Cooling solution for the pharmaceutical industry, is highly corrosive liquid cooling conveyor

Wire corrosion protection tube and transfer the liquid medium, ultra-pure water pipe and other equipment.
