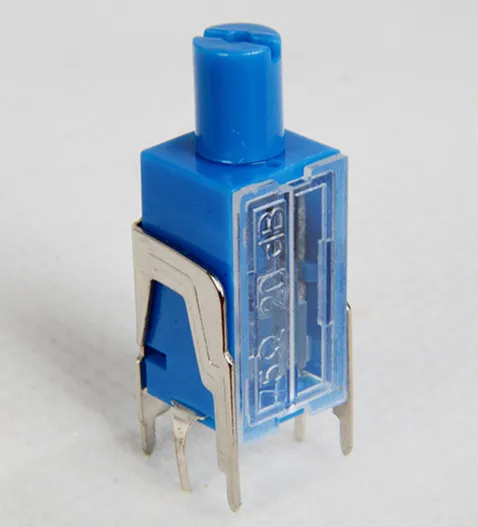

SJ-B CATV высокочастотный вертикальный Регулируемый аттенюатор 0 - 20
SJ-B CATV высокочастотный вертикальный Регулируемый аттенюатор 0 - 20
SJ-B CATV высокочастотный вертикальный Регулируемый аттенюатор 0 - 20
SJ-B CATV высокочастотный вертикальный Регулируемый аттенюатор 0 - 20
SJ-B CATV высокочастотный вертикальный Регулируемый аттенюатор 0 - 20

SJ-B CATV высокочастотный вертикальный Регулируемый аттенюатор 0 - 20


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description


Specification:
Attenuation range（dB):
0-20dB
impedance（Ω）：


75Ω

Insertion loss(dB)：
0.5dB
Operating frequency（MHz):
0～1000MHZ
Frequency response：
≤±0.3dB
reflection loss(dB)：
≥17Db
Case color:
Blue , Black
Rotation length:
2, 3, 5, 8, 18, 24 mm
Rotary handle color:
Light blue,Dark blue, Red


Product Paramenters


1.Electrical performance
NO.
Item
Qualification
Specification
1.1
Impedance matching value
Output impedance / input impedance matching
75Ω
1.2
Reflection loss
>300MHz, >550MHz, >860MHz
>18, >16, >14
1.3
Maximum attenuation
Counterclockwise to bottom measurement
20dB±2dB 10dB±2dB
1.4
Minimum attenuation
Measured clockwise to the bottom
<0.5dB
2.Mechanical performance
NO.
Item
Qualification
Specification
2.1
Full revolution
Counterclockwise bottom position, turn clockwise to the bottom, the total number of revolutions of the shaft
3.5±0.5(turns),6.0±0.5(turns)
2.2
Rotary torque
Rotation speed 60 degrees / sec
Below 50gf-cm(Max)
2.3
Axis rotation strength
Measured clockwise to the bottom
Above 800gf-cm(Max)
2.4
Terminal strength
Add 500gf-cm to the terminal, 100 5 seconds
No obvious looseness and poor contact
2.5
Solder pot heat resistance
Temperature below 300 degrees, within 3 seconds
No obvious looseness and poor contact
3.Durability
NO.
Item
Qualification
Specification
3.1
Swing life
Go back and forth more than 200 times


Picture shows
