Product Description

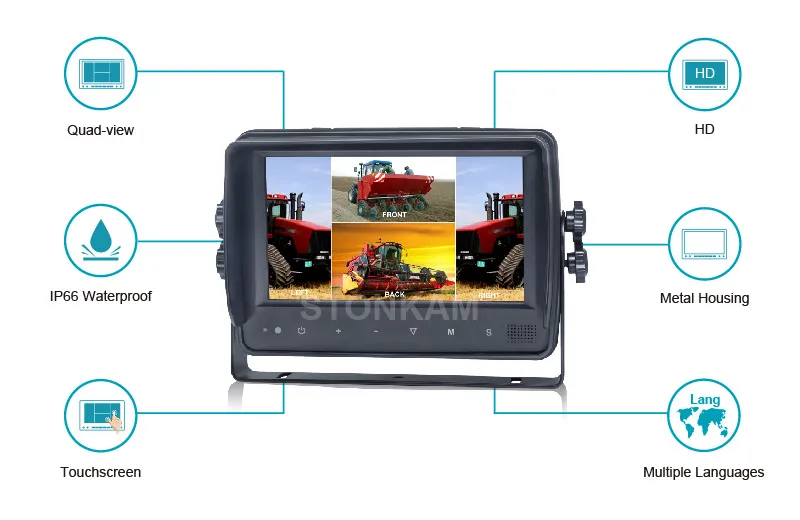

STONKAM 7 Inch Touchscreen Waterproof HD Car Quad-view Vehicle Monitor System supports 4 HD camera inputs to present 360° monitoring in quad view, which enables the driver to know about the road conditions on the back/front/right/left, in order to reduce the risks of rear-end collisions or scratches due to blind spots, and to improve the driving safety! Additionally, this monitor is featured with capacitive touch screen, metal housing, and waterproof rating of IP66. It’s suitable for all kinds of agricultural and engineering machinery!
* Waterproof Rating: IP66
* Capacitive touch screen supported; iconic menu operable; several touch gestures recognizable
* Supports 4 HD camera inputs(1080P@30fps / 1080P@25fps / 720P@30fps / 720P@25fps), Quad-view display supported
* video formats available: PAL / NTSC
* Single, dual, triplex, quad, trefoil, Y-split and PIP image display
* Support adjusting the image parameter of separate single channel; Image adjustable for horizontal, vertical, horizontal - vertical viewing
* Five trigger lines and trigger definition, delay and priority adjustable
* Support auto scanning, with scan channel and time selectable
* Adjustable parking lines available
* Support 60-level manual adjustment with high/low sensitivity selectable, and 3-level automatic adjustment of the LCD backlight
* Multi-languages available
* Wide voltage input: 10 - 32V ; support 12V or 24V automobile battery
* Easy installation, convenient operation
* Waterproof Rating: IP66
* Capacitive touch screen supported; iconic menu operable; several touch gestures recognizable
* Supports 4 HD camera inputs(1080P@30fps / 1080P@25fps / 720P@30fps / 720P@25fps), Quad-view display supported
* video formats available: PAL / NTSC
* Single, dual, triplex, quad, trefoil, Y-split and PIP image display
* Support adjusting the image parameter of separate single channel; Image adjustable for horizontal, vertical, horizontal - vertical viewing
* Five trigger lines and trigger definition, delay and priority adjustable
* Support auto scanning, with scan channel and time selectable
* Adjustable parking lines available
* Support 60-level manual adjustment with high/low sensitivity selectable, and 3-level automatic adjustment of the LCD backlight
* Multi-languages available
* Wide voltage input: 10 - 32V ; support 12V or 24V automobile battery
* Easy installation, convenient operation
TV System | PAL / NTSC | ||||||
Resolution | 1024x3(RGB)x600 | ||||||
Brightness | 600 cd/m² | ||||||
Contrast | 700:1 | ||||||
Viewing Angle | 85 /85 /85 /85 (L/R/U/D) | ||||||
Aspect Ratio | 16:9 | ||||||
Operating Temperature | -20~+70℃ | ||||||
Storage Temperature | -30~+80℃ | ||||||
Power Consumption | Max.25W | ||||||
Power for Cameras | Max. 4×600mA, 12V | ||||||
Power input | 10V-32V | ||||||
Dot Pitch | 0.1506(H)x0.1432(V) | ||||||
Video Inputs | 4 video inputs | ||||||
Audio Inputs | 4 audio inputs | ||||||
Touch Screen Transmittance | ≥ 80% | ||||||
Operating Pressure | 10~110g | ||||||
Screen Response Time | <10ms | ||||||
Too many blind spots when driving?
Often upset by the recurrent scratches?
Having encountered all kinds of feigned accidents?
Difficult to determine who is liable for rear-end collisions?
……
To solve all these problems, all you need is a set of vehicle monitoring system!
But wait,
Where to find a nice vehicle monitoring system?
How can we synchronously monitor the image of multiple cameras on just one display?
Often upset by the recurrent scratches?
Having encountered all kinds of feigned accidents?
Difficult to determine who is liable for rear-end collisions?
……
To solve all these problems, all you need is a set of vehicle monitoring system!
But wait,
Where to find a nice vehicle monitoring system?
How can we synchronously monitor the image of multiple cameras on just one display?
Where to find a monitor with good quality and is easy to operate?
Viewing the driving situation around the vehicle in real time to help driving safety!
STONKAM 7 Inch HD Waterproof Monitoring System supports 4 HD camera inputs, which enables the driver to see the blind spots and the surrounding conditions in real time, so as to carry out their tasks efficiently and safely, and to reduce the risks of traffic accidents!
STONKAM 7 Inch HD Waterproof Monitoring System supports 4 HD camera inputs, which enables the driver to see the blind spots and the surrounding conditions in real time, so as to carry out their tasks efficiently and safely, and to reduce the risks of traffic accidents!

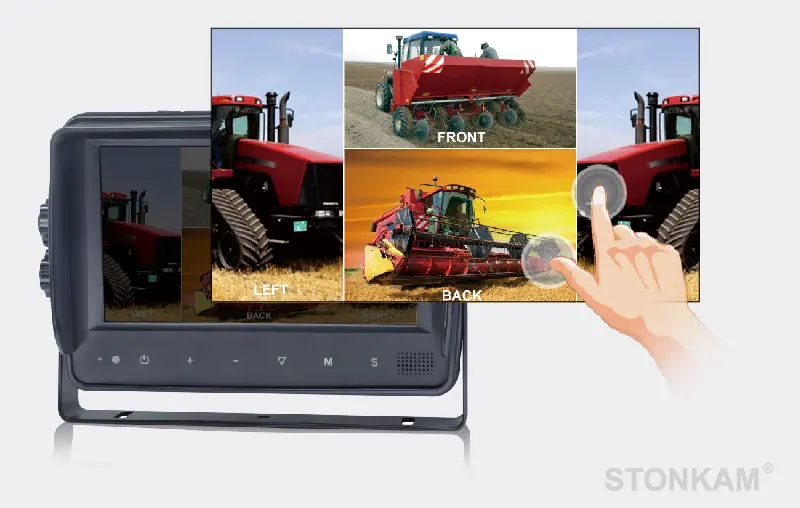

Capacitive touch screen supported

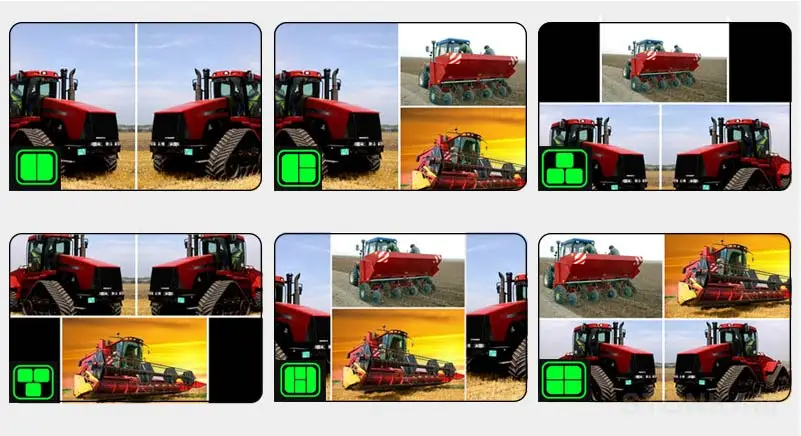

Support single, dual, triplex, quad, trefoil, Y-split and PIP image display modes. You may switch to the different modes based on your practical needs.

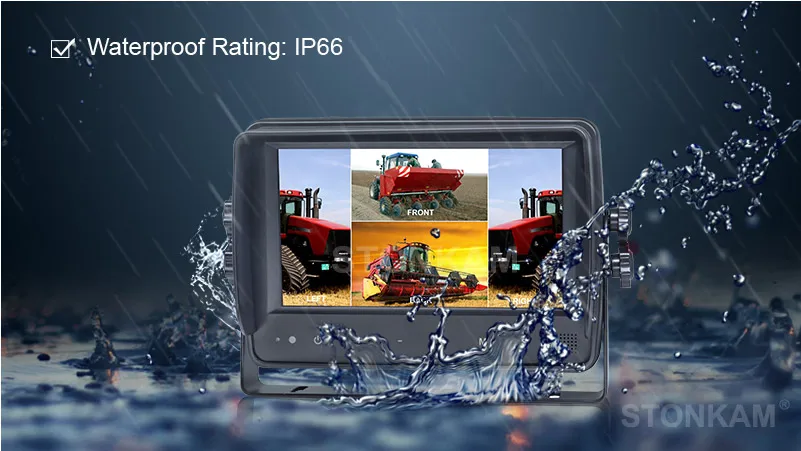

STONKAM 7 Inch HD Waterproof Monitoring System with waterproof rating of IP66, can stand horrible weather conditions and is durable.

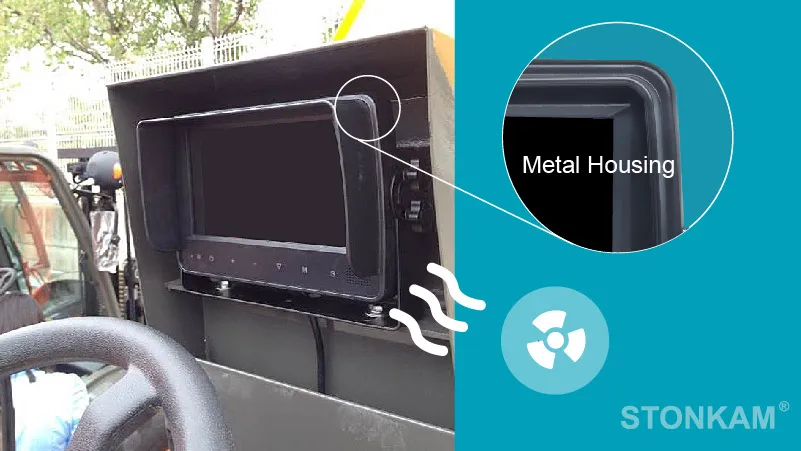

The metal housing can solve the problem of heat dissipation, and lengthen the service life of the device.

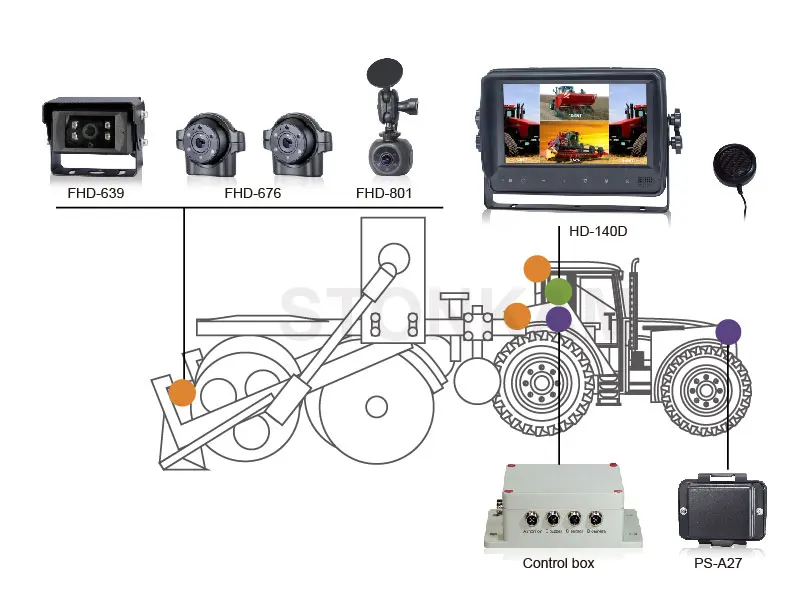

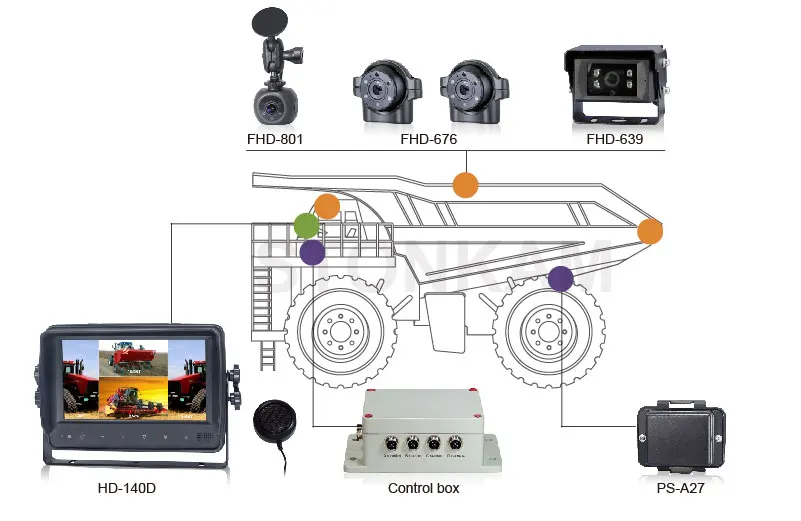

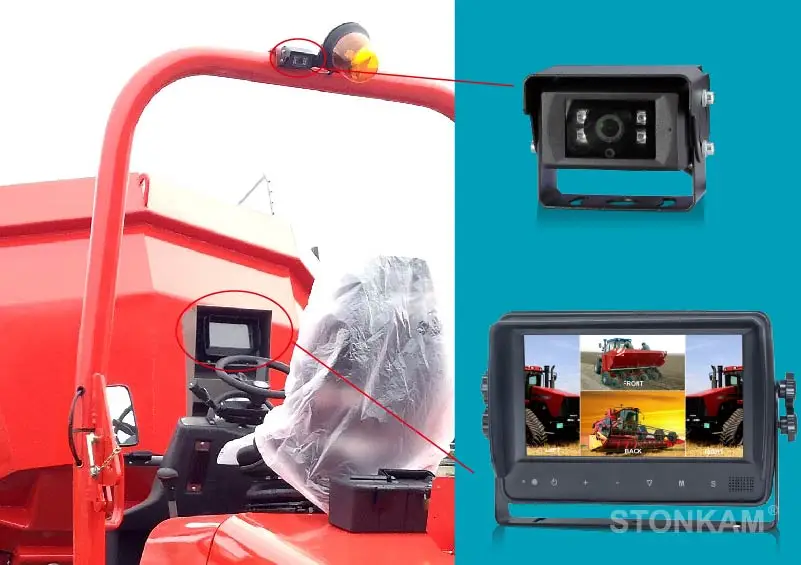

STONKAM 7 Inch Touchscreen Waterproof HD Quad-view Vehicle Monitoring System featured with convenient installation and easy operation, can be widely applied, especially to agricultural and engineering machinery.
