Heat pump for pool

Air source heat pump,air to water heating pump.

Be wonderful for your private swimming pools

Extend the swimming season,This is our good heat pump for pool.



Working principle

Transfer heat from the outside air to the pool.Providing the most energy efficient pool and spa heating available.



Advantages:

• 1. Compared to gas,oil or electric heaters,heat pumps operate up to 80% less,saving you money in energy costs each year.


• 2. Titamium heat exchanger. Allows heat pumps to be used on chlorinated pools against corrosion and deliver superior hydraulic flow.


• 3. Minimum noise.Using high-yied rotary and scroll compressors of prestigious brand which realize the high efficiency and low noise together.


• Intelligent Controller,exactly adjusts the desired temperature.

Models and spec

Model			HAT500	HAT600	HAT1000	HAT1200	HAT1500	HAT1800
Data		CV	5HP	6HP	10HP	12HP	15HP	18HP
Heating capacity		BTU/h	72000	85000	170600	204600	255900	306900
		W	21000	25000	50000	60000	75000	90000
Heating power input		W	4500	5500	10000	12500	15500	19000
Efficiency		COP	4.7	4.6	5	4.8	4.8	4.7
Heating stated Current		A	7.8	9.6	16.5	20.8	28.5	34.8
Power Supply		V/PH/HZ	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Compressor Quantity		pcs	1	1	2	2	3	3
Compressor type			Scroll
Heat exchanger		PVC HERMETIC WATER BARREL WITH SPIRAL SOFT TITANIUM PIPES INSIDE
Refrigerant		R22/R407C/R410A
Fan quantity		m3/h	1.95	2.87	4.6	8.7	13.5	17.6
Fan power input		W	32	36	36	38	38	38
Fan rotate speed		RPM	750	750	870	1500	1500	1500
Blower style		UP-BLOW WITH INSTALLED HORIZONTAL
Noise level		dB(A)	710	710	810	1200	1200	1200
Water connection		mm	109/128	139/162	170/215	263/298	295/337	335/370
Water flow volume		m3/h	7.5	8.5	12	15	20	25
Water pressure drop		kPa	12	12	12	12	15	15
Net dimension		mm	670*670*850	670*670*950	1350*690*850	1350*690*850	1800*900*950	1800*900*950
Weight net/gross		kg	110/135	114/140	220/280	230/290	350/400	370/420

What do we do?

We Provide high-quality service for:
1,Swimming pool equipment wholesalers.
2,Retailers and online shops.we have shops in Chengdu,Shanghai,Beijing and Guangzhou,We supply the high quality and low price,and best service.
3,OEM-The custom-made pumps are available.Upon customer’s idea,drawings,photos etc.more detail.The length of time depend on the procedures.

Remarks:

1.PAYMENT: 60% T/T prepaid,Western Union.

2.Terms of payment:All payment are before shipment.

3.Loading port:Huangpu Guangzhou

4.MOQ:1 pcs.

Company information:

Addr: Fl.2, No.166, Gangdong Rd., Dashi street, Panyu District, Guangzhou.China.

Tel: +86 20 34796181 Fax: +86 20 34796171.

Exhibitions:

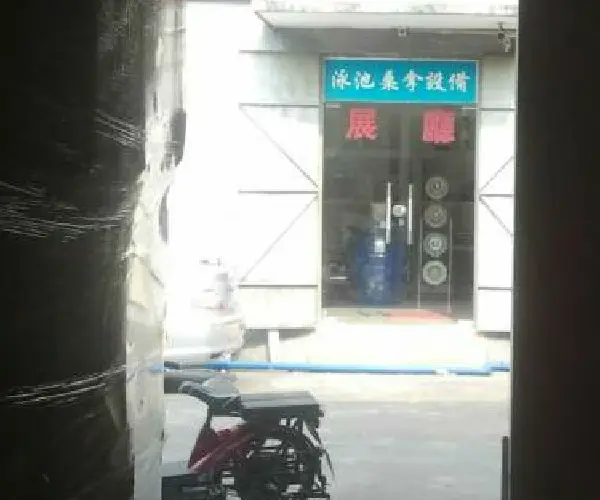

1.Company shows:

 2.Company certificate:

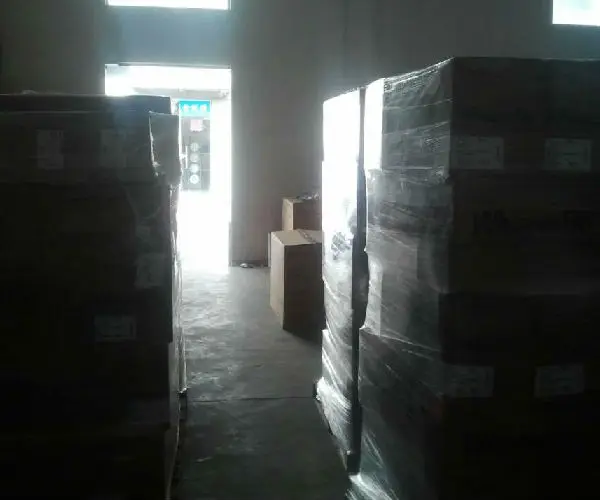

3.Warehouse:
