2 54 мм PGA гнездо 72Pin 84Pin 128Pin 181Pin или 224Pin под

Описание и отзывы

Характеристики

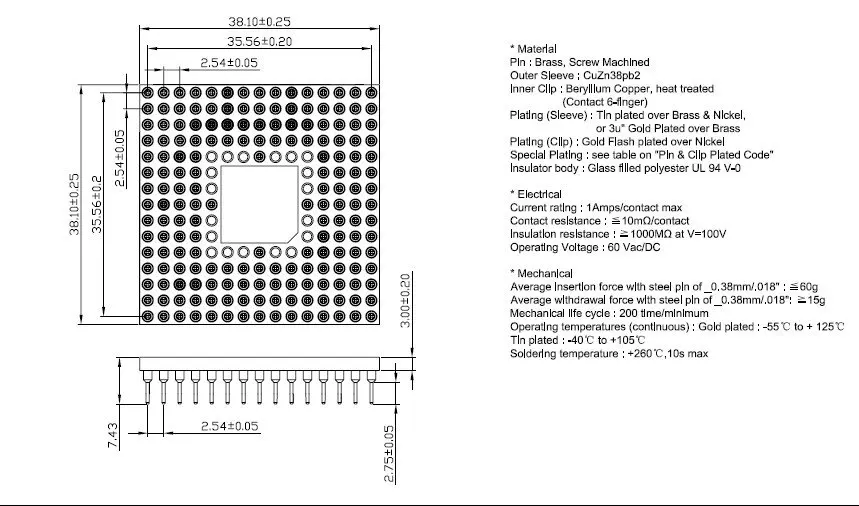

2.54mm PGA Socket 72Pin,84Pin,128Pin,181Pin  SPECIFICATATIONS :



Insulator:Molded type PBT
Contact: Brass, Machine pins
Clip / 4 finger: Beryllium copper (C17200) Accepted pin: 0.31 to 0.48mm
Forces: (polished steel gauge 0.38mm)
--Insertion: 0.3 N typ



--Withdrawal: 0.15 N typ

Rated current: 1A
Contact resistaance: max 10 mΩ
Dielectric strength: min 500 V RMS
1. Series No.: -- Pitch 2.54mm PGA Socket
2. Number of Contacts: 84Pin,128Pin,181Pin 940 Pin AM2 / 940 pin / 939 pin / 754 pin / 700 pin/478Pin,479Pin etc.
3. Insulator Material: FR-4 / PPS
4. PIN Length: 4.85mm ; 5.15mm ; 5.50mm ;5.90mm ;8.25mm
