DIY deisgn

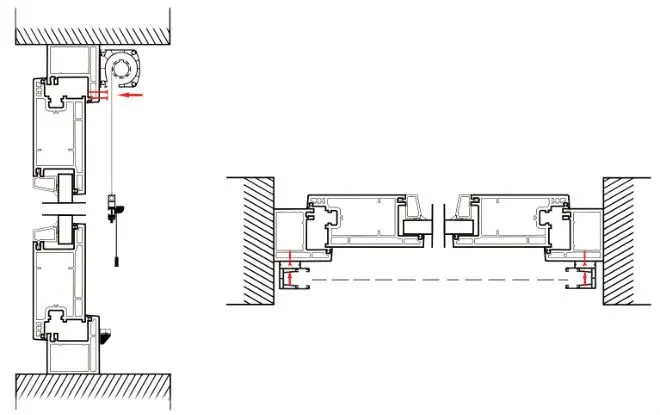

easy to install by diagram specifications

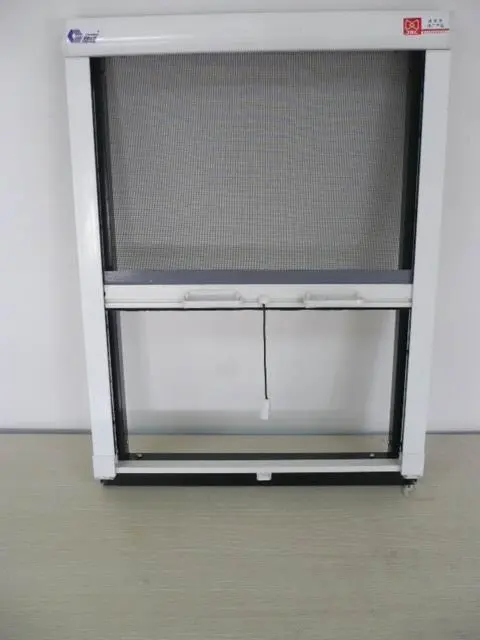

For horizontal opened window
to fix on the frontside of window frame (normal for Asian window)
Maximum size: 140xH170cm
the aluminum profile can be cut to adjust the width and height to the window size

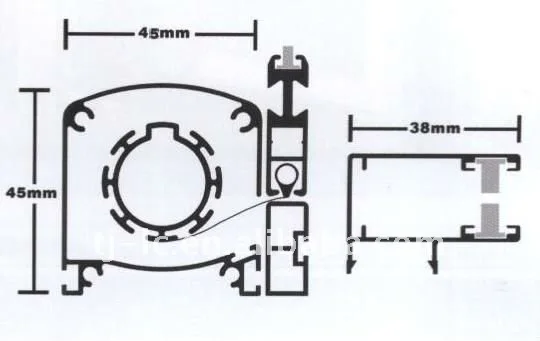

aluminum profile:1mm thickness with electrostatic coating
common colour: white (RAL9016)
other available colours: RAL standard colours
e.g.: brown (RAL8017, RAL8016), black (RAL9005), grey (RAL7004, RAL7035), bronze etc.
fiberglass screen: high-temperature proof in black or grey colour
accessory: high-grade PVC in black or white colour
a brake can be inside the roller to control the speed
uniform packing box with advertising label outside(label can be special design by customer)
10pcs of package in a master carton
Semi-finished material:

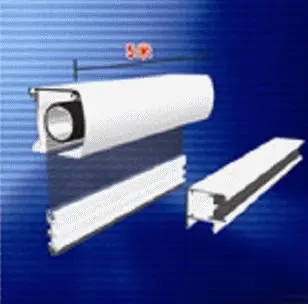

roller: aluminum profile in 5m with fiberglass screen inside
side rail: aluminum profile in 5m with woolen strip inside
accessory kit: full set accessory for one pc of insect screen in different sizes
