Диапазон крепления: 12 ~ 30 мм гвоздезабивной штифт 2 в 1 с 23
Диапазон крепления: 12 ~ 30 мм гвоздезабивной штифт 2 в 1 с 23
Диапазон крепления: 12 ~ 30 мм гвоздезабивной штифт 2 в 1 с 23

Диапазон крепления: 12 ~ 30 мм гвоздезабивной штифт 2 в 1 с 23


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики






About VIM


 About VIM
* Industry's Leading Factory
* VIM has more than 25 Years Experiences In Taiwan Nail Gun Industry
* Taiwan Spare Parts





Products Show


 pin nailer-0.jpg

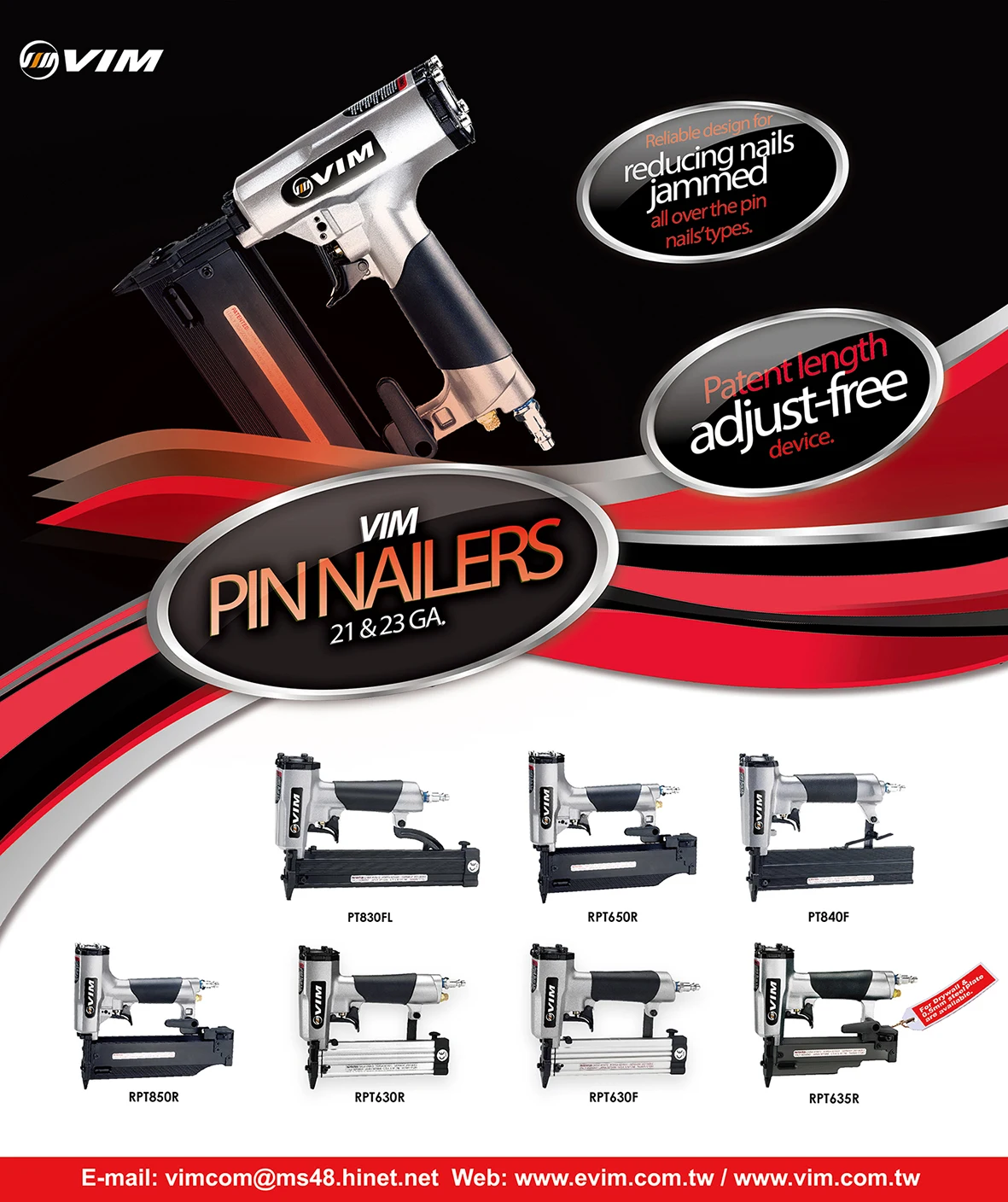

750x250PIN NAILERS


pin nailer-2.jpg





Product Description

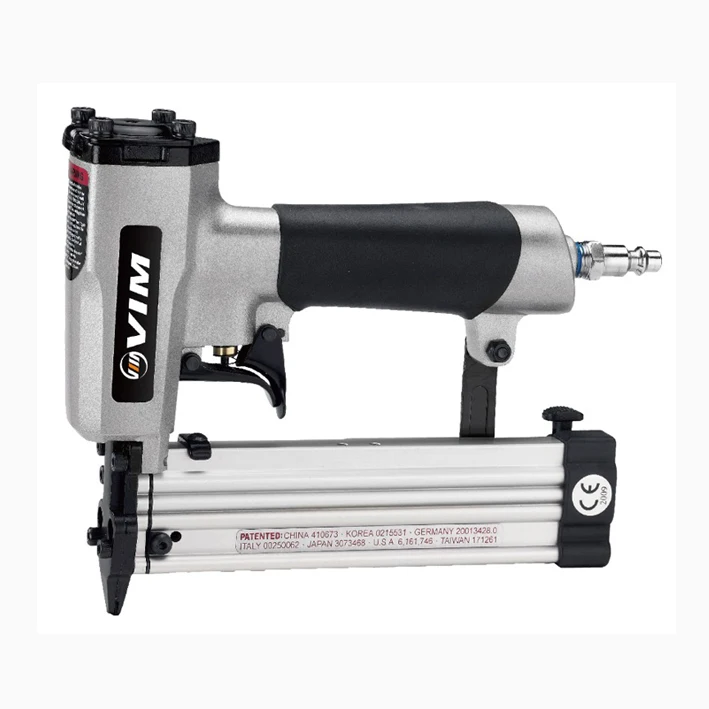

23 Gauge Headless & Micro Head 2 In 1 Pin Nailer











































Model No RPT630F
L x W x H175x40x220 mm
Weight1.02 kgs

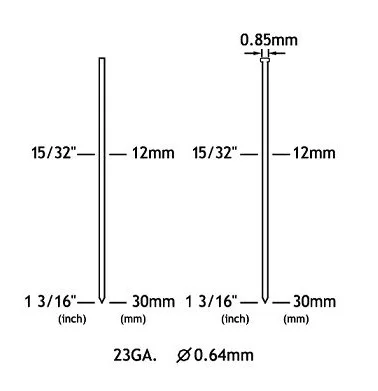

Gauge23 GA
Shank Dia0.64 mm (0.025")
Fastener Range12~30 mm (1-5/32"~1-3/16")
Shank TypeSmooth
Loading Capacity

100 pcs


Working Pressure5~7 bar/70~100 psi






APPLICATION
















































Light wood assy



Roofing


Finish and trim work
Decorative trim
Dowel and joint pinning
Mirror and picture frame assy
Glazing stips
Craft work
Paneling external softwood trim
Wall framing
Truss construction

Rattan Fruniture


Window beading
Display and sign work




FEATURES






































Drives headless pins and micro head brads
The patented adjust-free magazine for easy using any fastener length
Double trigger safety lock helps prevent accidental firing of the tool
Removable nose cover provides easy access to clear fastener jams
A narrow nose on the pinners allows the tool to reach into tight areas, and detailed work surfaces
The window on the magazine can show if fasteners are low and when reloading is necessary
Rubber grip for comfort usage
Rear Exhaust with Silence
Plastic end core on magazine for easy and comfort usage
Front Exhaust
The belt hook provides easy carring of the tool

 PIN NAILERS-



Vim product catalog


https://issuu.com/vimcom/docs/vim







Please refer to our 2019 Automotive Air Tools Series:


https://issuu.com/vimcom/docs/20180920-air_impact_wrench__

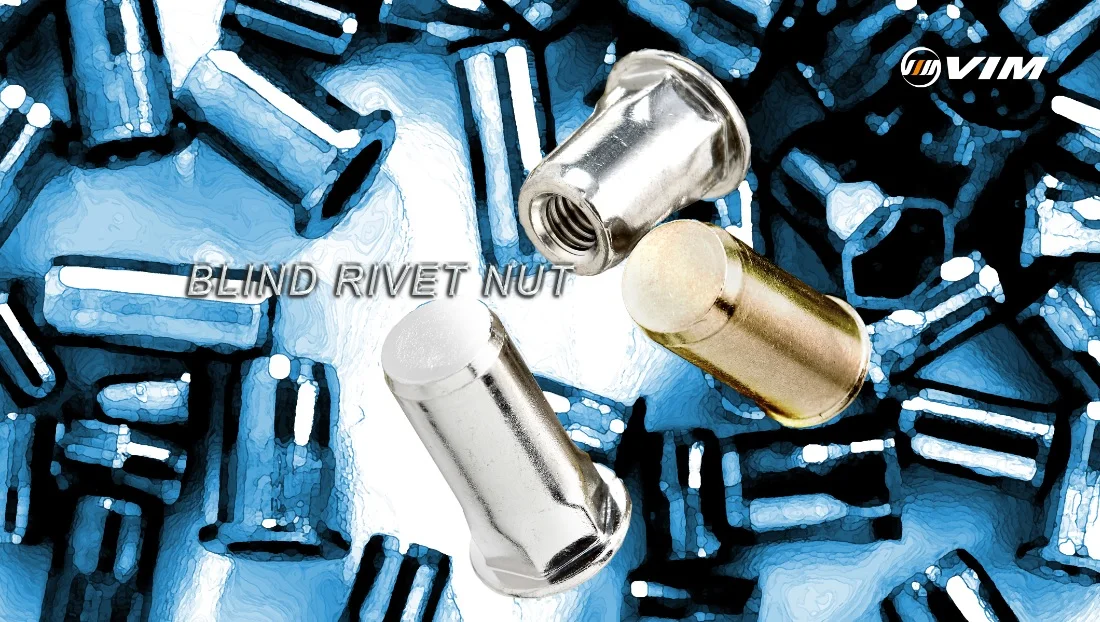

Please refer to our 2019 Blind Rivet Nut Series:


https://issuu.com/vimcom/docs/blind_rivet_nut

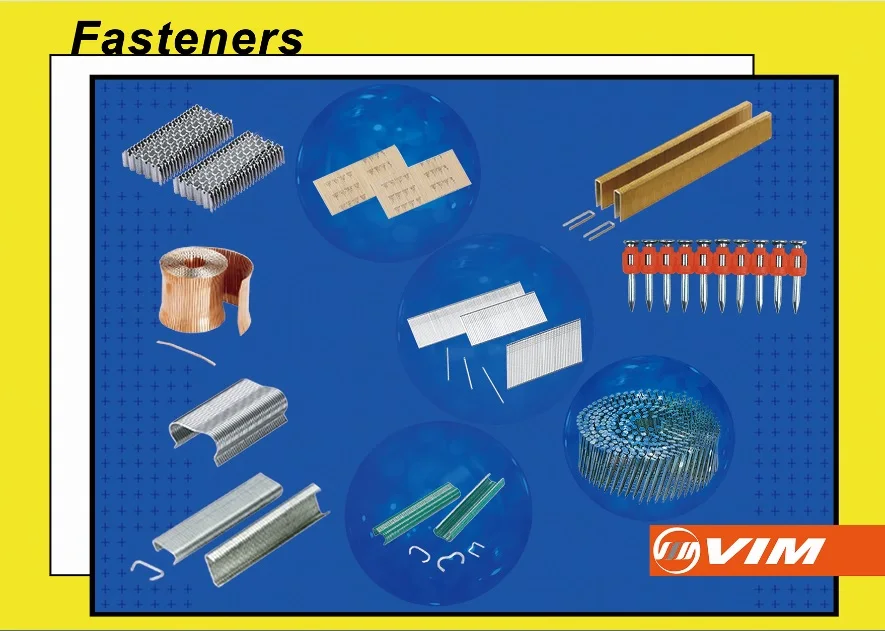

Please refer to our 2019 Fasteners Series:


https://issuu.com/vimcom/docs/fasteners







Please refer to our 2019 copier staples as below:


https://issuu.com/vimcom/docs/copier_staple


20180925-copier staples-01.jpg





Please refer to our 2019 pneumatic nailers / staplers Series:
