Внутренний локоть ISO 17885 SANS 14236 ирригация hdpe Шаровой Клапан зажимные сиденья HDPE PE PP компрессионные

Описание и отзывы

Характеристики





Main material: PP-B/POM

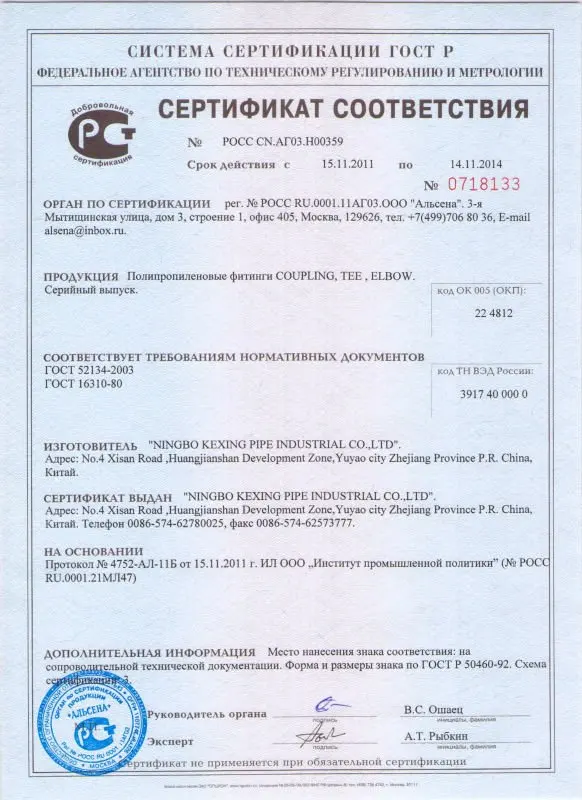

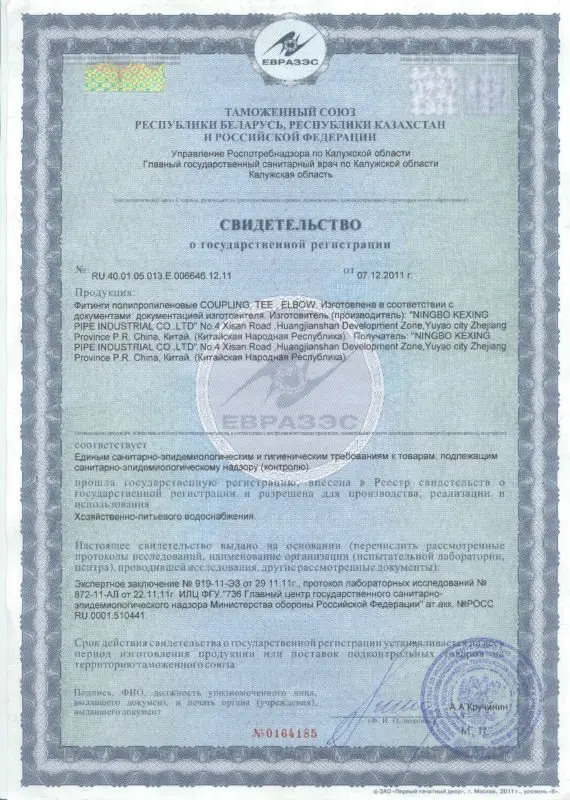

Certification: CE, GOST, Russia Sanitary Registration Certificate



Standards



Dimensions and characteristics according to EN 712/713/715/911, ISO 3501/3503/3458/3459

To be installed on PE pipes conforming to ISO 11922, DIN 8072/8074, UNE 53131

Threads (BSP) manufactured according to standard ISO 7, DIN 2999.



Features



1. Fast & reliable connection

2. Perfect sealing under all conditions

3. Approved for use with drinking water



Applications

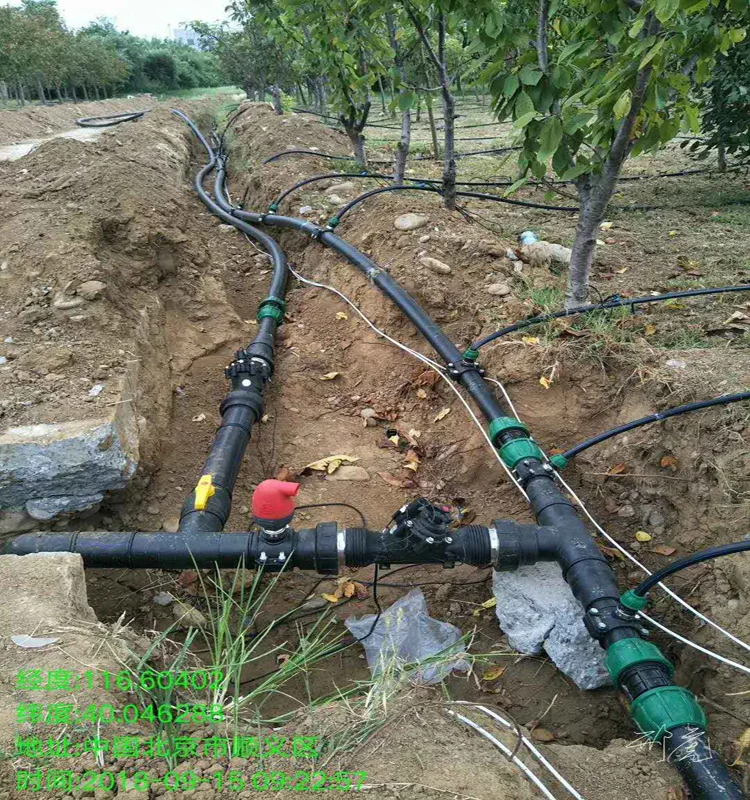

Water distribution, irrigation, swimming pool, and cable conduit



Technical data



 Materials

Part	Material
Body(A)	Heterophasic block polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature.
Blocking bush(D)	Polypropylene
Nut(B)	Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004)
Clinching ring(C)	Polyacetal resin(POM)with high mechanical resistance And hardness
O Ring gasket(E)	Special  elastomeric acrylonitrile rubber(EPDM) for alimentary use
Reinforcing ring	AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1”to 4”



Working Pressures

KEXING PP compression fittings allows the maximum working pressure(PN~PFA*) of 10 bar(UNI 9562) for diameters from 16mm  to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:

Reference Standards

Dimensions: UNI 9561Working

Pressure: UNI 9562,DIN 8076-3,ISO 14236,BRL-K03.

Polyethylene(PE)pipes: UNI 7990,DIN 8074,UNI EN 12201

Threads: UNI ISO7/1,UNI EN 10026-1,ANSI ASME B1-20.1

Flanges: DIN 2501-1,UNI EN 1452-3.IS 7005-2



Size:

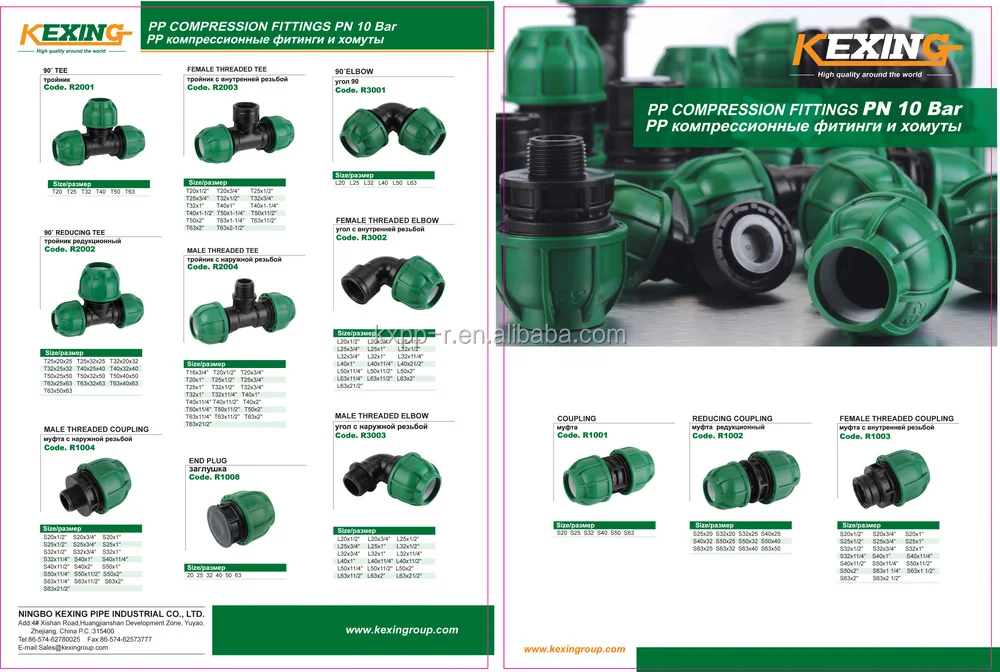

Kexing have two different style PP compression fittings for your choose.

SIZE(MM)	G/PCS	PCS/CTN
20	76	240
25	110	150
32	173	100
40	310	64
50	561	27
63	875	18
75	1167	13
90	1698	8
110	3202	4



Kexing two different style of PP compression fittings for your choose:
