 High stability automatic silk screen printer for rulers stationery printing machine



Product Description

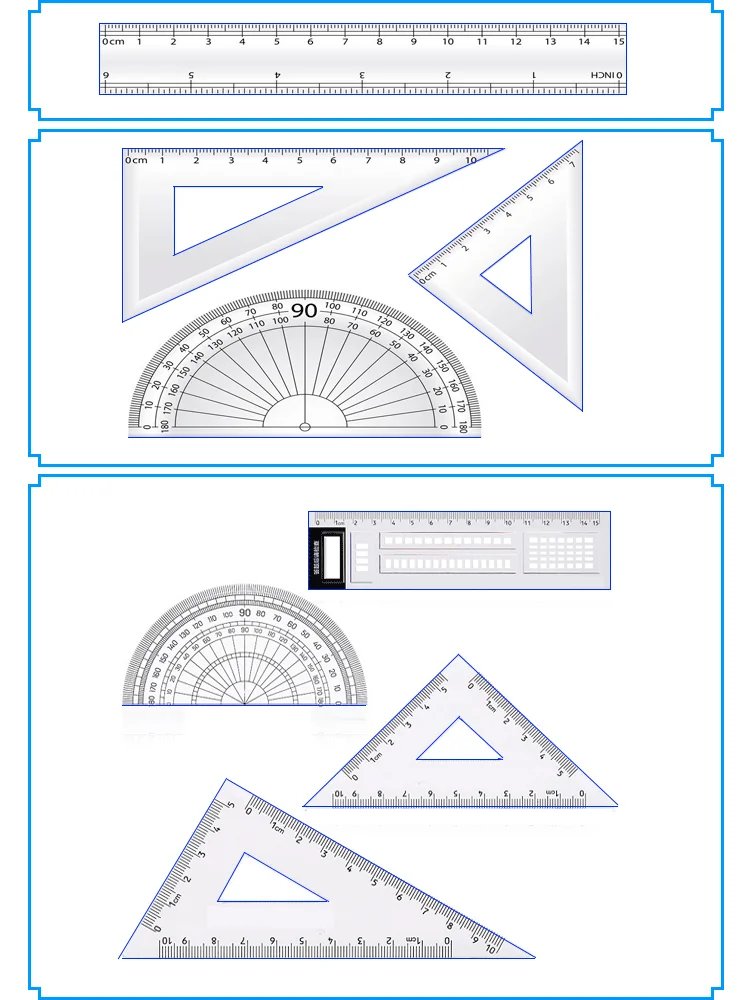

 Samples




Description:




































































SA1-2030MUV  automatically ruler screen printing machine



Location



Fixture register,



Working table



T-Groove working table, Size: 300*500mm



Actions



Up-down of screen plate



To be printed




  • Plain objects



Squeegee stroke



Adjust the Limited switch



Squeegee and screen plate control



 High precision guide shaft



Guide




  • T-shaped grooves, flat screen printing machine, suitable for a particular shape, to produce the fixture clamping groove hard, flat screen printing machine;

  • Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;

  • Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;

  • Screen forme Clamping device free to adjust to fit different sizes of screen;

  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;

  • Stroke of the scraper can be flexibly adjusted the pattern to suit different size;

  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing;

  • Microcomputer program control operations;

  • 4-Digit auto counter; to facilitate the measurement of production efficiency.



Application




  • The machine panel, plastic parts, Paper,  furniture industry, glass industry, circuit board industry, film, wooden case



Technical parameters




  • Max printing thickness: 260 mm;

  • Air consumption: 80Litre/Min;

  • Dimension of working table: 300×500mm;

  • Max printing areas: 280×380mm;

  • Max printing speed: 1200Pcs/H;

  • Max frame dimension: 450×740mm;

  • Compress air: 5-7 bar;

  • Stroke of cylinder up and down:160mm;

  • Stroke of Squeegee: 400mm



Works supply




  • 110V-220V Power supply;

  • 5-7Barcompress air;



Package parameters




  • Wooden Case:Package dimension: 930X920X1650MM

  • Gross weight: 160Kg;

  • CBM: 1.51832



H.S.CODE



8443192190



Certificate



CE



Function




  • T-slot table to facilitate the production of fixture clamping work table, suitable for should not be deformed, the industrial parts of the particular shape of the screen printing;

  • Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;

  • Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;

  • Screen forme Clamping device free to adjust to fit different sizes of screen;

  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;

  • Stroke of the scraper can be flexibly adjusted the pattern to suit different size;

  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing;

  • Microcomputer program control operations;

  • 4-Digit auto counter; to facilitate the measurement of production efficiency.







Packaging & Shipping




Machine is very heavy, It is recommended to use mechanical forklift move and handling, avoid i nversion, Impact, Shake.








Company Information


       The world is only one China, China only one LC, we are the production and sale of pad printing machines, silk screen machines, bronzing machines and automatic printing equipment and world famous!




 Excellence in product quality depends on the high precision machining equipment;
 The company has dozens of leading domestic CNC, printing machines, silk screen machines, bronzing machines and other special printing equipment, data and standardized management in the forefront of the domestic.Excellence in product quality depends on the high precision machining equipment.




All Machine has CE certification.


    CE of pad printers


     CE of screen printers


     CE of hot foil stamping machine


     CE of UV exposure machine and UV curing machine.          Etc







FAQ


1) What are your main products?
     Pad printers,


     Silk screen printers,


     Hot stamping machines,


     and the supply chain related to the above-mentioned industrial printing, we will also provide users with complete printing solutions.





2) What kind of pre-sale service do you provide.



   Free technical consultation, pictures, technical materials, and video materials are provided. For those that cannot be provided, we may provide design solutions.





3) What kind of payment method should I choose?



 For new users, if the amount is smaller, you can use the credit guarantee order, TT, and if the amount is larger, you can consider a letter of credit. In order to protect the safety of customers' funds, we do not recommend customers to transfer to personal accounts, or use Western Union, paypal and other personal payment methods. Unless the customer makes a special request.










4) How to order the machine?
   When you confirm to buy the machine, we will provide PI, and pay according to the payment method guided by PI. We will produce the machine and arrange the calculation until you get the machine safely.










5) Questions about proofing?
For direct users, it is very important to confirm whether the machine is suitable for their products and require the factory to carry out proofing as the standard for machine delivery, because pad printing machines, screen printing machines and hot stamping machines usually require fixtures, printing plates, and inks. The perfect match of the bronzing paper can meet the requirements. For the proofing of the customer's confirmed order, we are free. For the proofing without the confirmed order, we will charge a certain proofing fee. When you confirm the order, the proofing fee will be deducted from the machine purchase price.










6) How about after-sales service?



Companies that sell through the Internet are usually small in scale, and none of them have set up after-sales service points overseas. After-sales service requires online support from sales staff. In general, pad printers, screen printers and hot stamping machines are relatively simple machines, and most problems can be solved through online communication.







7) How do you evaluate the quality of your products?
   When each user purchases a product, he balances price and quality. This balance may be difficult to grasp, but this is how you do business. Most of the products sold on the Internet are in the middle of whether the price is not low or the quality is not bad. end. You have to negotiate professionally with the sales staff for better products. There are roughly 300 similar manufacturing plants and more than 8,000 trading companies in China. It is not difficult to choose products that suit you.
