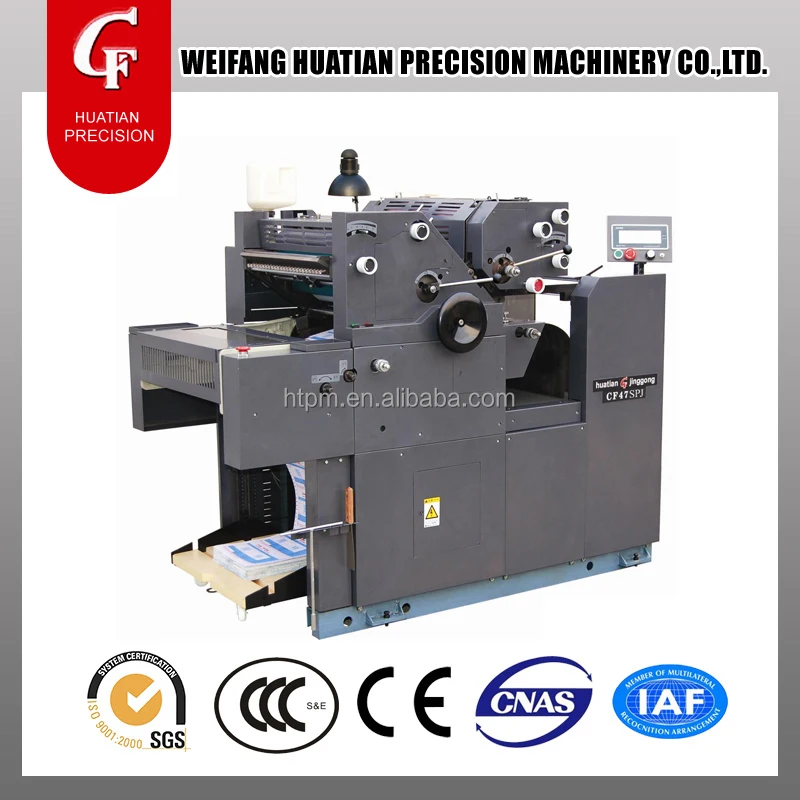

CF470SPJ  Continous Form  2 colors Printing  press Machine



Information :



          CF470SPJ Business Forms Machine-Offset Press,Bill Printing Machine,Offset Press.



          CF470SPJ bill printing machine adopts frequency-change stepless speed regulation,Yaskawa servo system paper feeding,PLC automatic control,American MOORE Companys 800 series paper advance mechanism,it is equipped with a satellite double-color machine head and uses ordinary 1.95mm air-cushion rubber blankets,it features precise paper feeding,high-precision and quick printing,low price,free from broaching,high-precision over printing and simple   operation. It is a bill printer with highest printing speed and highest over printing precision in China at present.It is a optimum choice for small scaled bill printing houses.





Character and Advantage:



1)Thicker roller and cylinder: thicker and heavier than the like products,new innovation,long life time and more durable.



2) Imported main parts: many of the importmant spare parts imported from Janpan,american. korea and germany and france. top quality.



3) Printing ability: it can print on 17g/m2 thin paper,unique.



4) Easy operate :stable, easy to operate,small size,low electricity consumption.



5) Best after-service :We have skillful technicians. Our machine have fewer problem and longer life than others' .



6)Quick exchange plates  :With this feature you can change the plate with only two handshakes during the process. This operation is very fast and simple, and allows greater precision in the placement. It also has a system of pre-registration, which further reduces the time to hit machine.



7)Automatic control board: Our machine is equipped with a control panel with membrane buttons, where all the printer commands are made through a single touch, making the printer more confident and elegant..



Parameter:



Maximum paper width	470mm
Maximum printing area	450×355.6mm(7in-14in)
Over printing precision	<0.08mm
Paper mass	30-170g/m2
Working speed	1000-10000/h
Motor power	0.75kw/220V
Machine mass	670kg
Machine size	1670L×1000W×1400Hmm





Sample list :

        this machine could do the 1-4 color print work in the computer paper /pe/pvc.







Spare parts list:



    Most of the spare parts are manufactured by our company, and all the spare parts is tested

 before installed on the machine, and most of the gear is done do the hardness- process.we also cooperate with many famous brand company such as panasonic,

Delivery  :

     We could arrange the delivery within 20 days after we get the deposit.

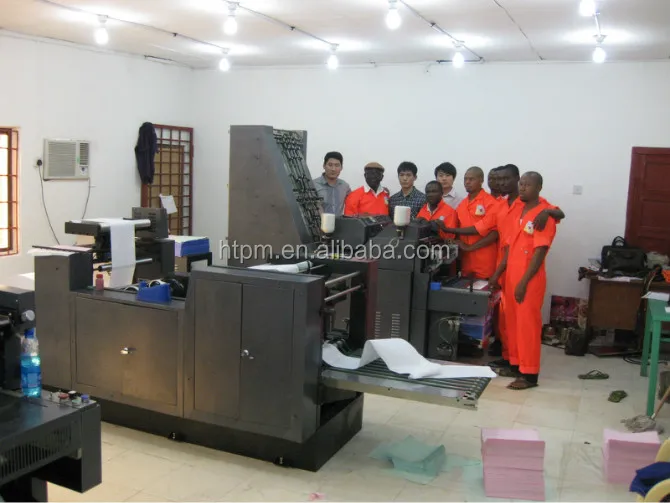

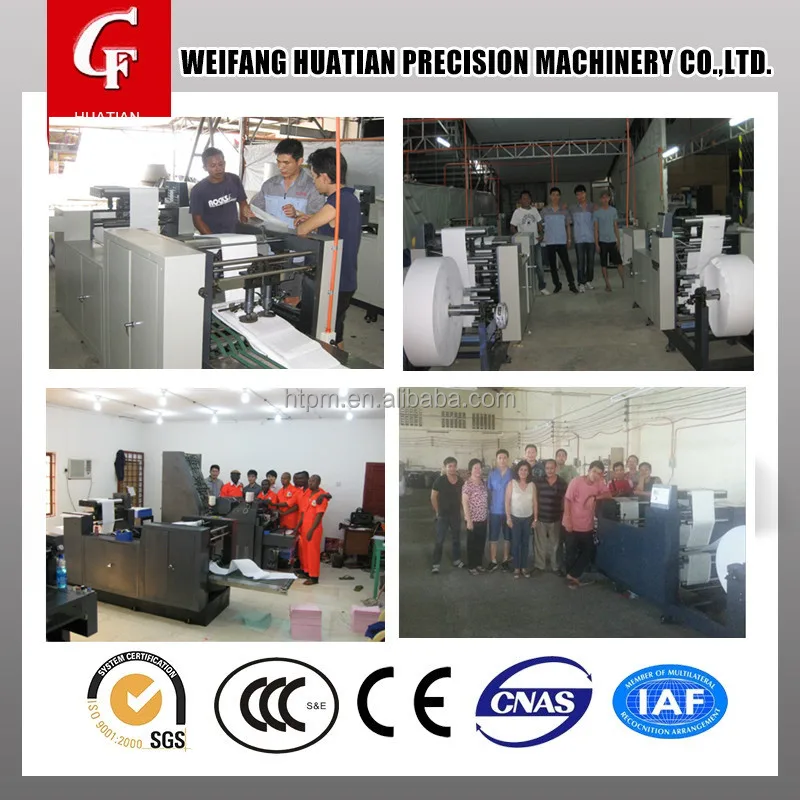

Machine pic in customer factory:

      we have many customer all over the world, such as nigeria/ ghana. thiland/ philinppine/peru/jordan.. and so on.

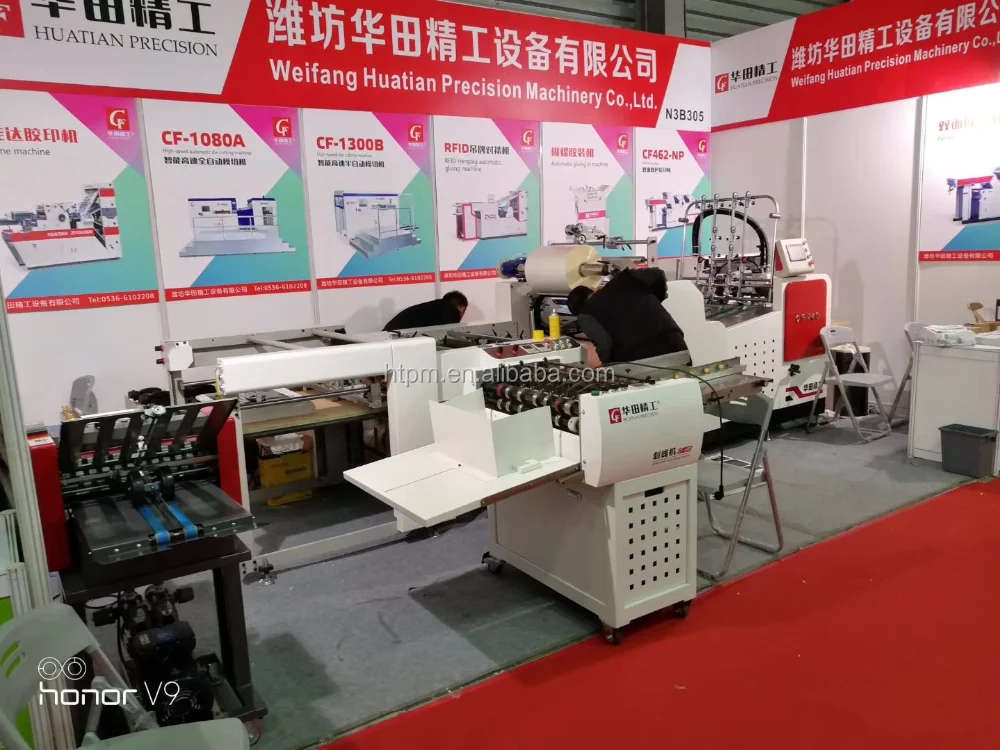

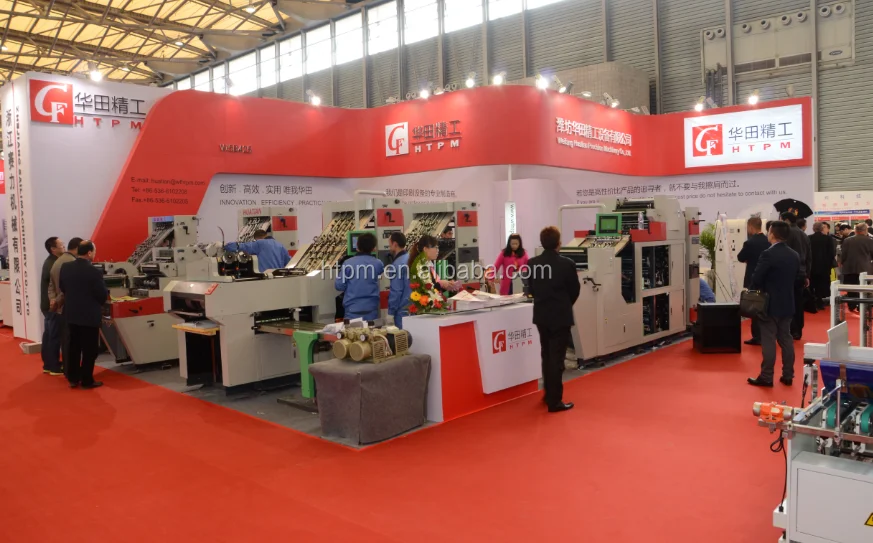

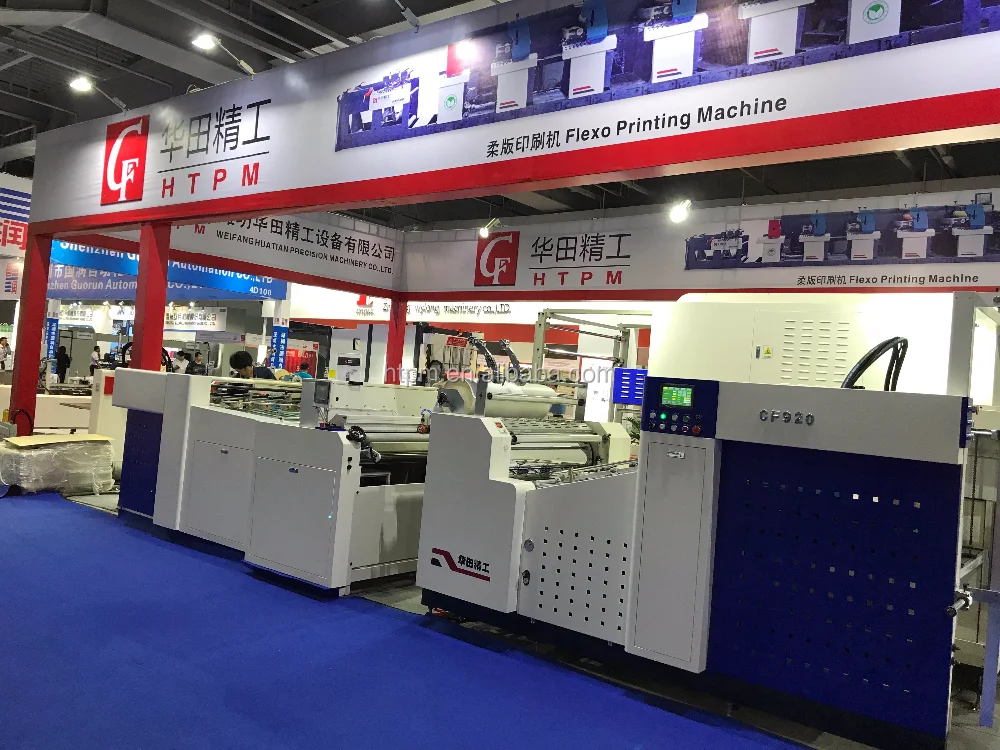

Exhibition:

FAQ:

1.Question: Are you Manufacture or Trading Company?
Answer:We are manufacture for the offset printing machine for about 12 years. And we have customer

 in about 60 countries.we have the 1-4 color offset press, collate machine . Uv coating and spot uv

 machine. computer paper production  line ,folding machine. Binding machine ,die cutting machine

and flexo graphic machine .







2.Question: what is your payment term and delivery time ?



Answer: we accept TT,30% prepaid as deposit, and before we delivery the machine, you need to

pay us the balance . We could arrange the delivery within 10-30 days after we get the deposit.







3.Question: How is the quality for your machine ?



Answer: for the spare parts, most of  them are  manufactured  by ourselves,and most of them are

done the hardness process treatment. So we can better control our quality from beginning.

Electrical Part we had cooperated with good foreign brand, such as UBC, Yaskawa, Siemens,

NSK, Delta, Panasonic etc.all the machine will be installed in high precision and be tested for

many time before delivery.



4.Question: How your company provided installment and traing and after sales service?
Answer: we will supply installing and training for all our machine if customer requested.and after

the installment and training ,if the customer think ok, then they sign on the certificate, and then

our technician left . we also provide 1 year guarantee,if any problem for our machine, we will

do our best to settle the problem within 10 days by changing spare parts or sending technician

 to customer factory.
