0.085in шаг 14 24 36 50 64 способов PCB центральный разъем правый угол Крепление pin штекер коннектор для печатной
- Категории: >>>
- Поставщик: Dongguan,Fuyconn,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

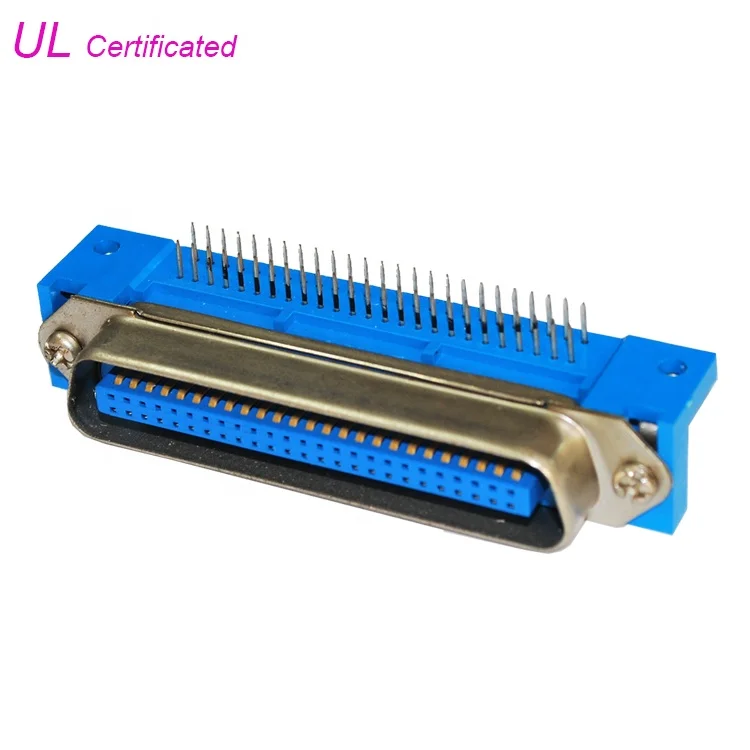

0.085in pitch 14 24 36 50 64 ways PCB Centronic Connector, Right Angle PCB Mount 64 pin Male Plug Header Connector for PCB Board
The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.
Both male and female Centronics connectors are available. Male Centronics connectors have side latches that snap into tabs on the sides of female connectors. Female connectors also have slots to receive pins from male connectors. Typically, Centronics connections consist of a 36-pin male or female connector at the printer or other peripheral, a cable, and a 25-pin parallel port on the computer. Centronics connectors use eight parallel data lines, as well as other lines to read status information and send control signals.
Product Feature | |
1. Product Name: | Centronic Connector |
2. Product Line: | 57 CN Connector |
3. Connector Gender: | Male Centronic Connector |
4. Pitch | 2.16mm |
5. Number of Position: | 14pin 24pin 36pin 50pin 64pin |
6. Connector Type | 57RR PCB connector |
7. Contact Material: | Phosphore Bronze |
8. Contact Plating: | 1U", 3U", 5U", 10U", 15U",30U" |
9. Insulation Material: | PBT |
10. UL Flammability Rating | UL-94-V0 |
11. Pitch | 2.16mm |
12. Shell: | Nickel plated steel |
13. Orientation: | Right Angle |
14.Cetification | UL Certification |
Electrical Specifications | |
1. Current Rating: | 5Amp |
2. Voltage rating: | DC 1000v per minute |
3. Insulator Resistance: | 1000Mn MIN.(at 500V DC) |
4. Operation Temperature: | -55°C to +105°C |
Application
1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer
Related Products
Packing&Shipping
Strong Package
1, Vacuum Tray
2, PE Bag
3, Take strong bags/boxes/cartons
4, PE Bag + Strips
Company Profile
Dongguan Fuyconn Electronics Co,. Ltd
Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series. We have over 1,000 models for you choice.
Our products are UL- and SGS-certified and are compliant with the RoHS Directive. Our product defect rate is less than 0.5% and 99% of our customers repeat their orders with us. Our ISO 9001:2008- and ISO 14001:2004-certified factory covers a total of 5,000 square meters with R&D Department, molding workshop, Plastic Inject workshop, Stamping workshop, Assembly production lines.
Why Choose Us
1, 16 years Centronic Connector production experience
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
11,Variety payment methods
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
11,Variety payment methods
Certification
Contact us
Grace Zhong
Wechat: +86 18925547246
Skype: fuyconn001
Phone: +86 18925547246
Office Phone: +86 0769 83690889
Add: 1-2/F, No.108 Hengdong Road, Fengda Industry District, Dongkeng town, DongGuan City, Guangdong Province,China
Skype: fuyconn001
Phone: +86 18925547246
Office Phone: +86 0769 83690889
Add: 1-2/F, No.108 Hengdong Road, Fengda Industry District, Dongkeng town, DongGuan City, Guangdong Province,China
