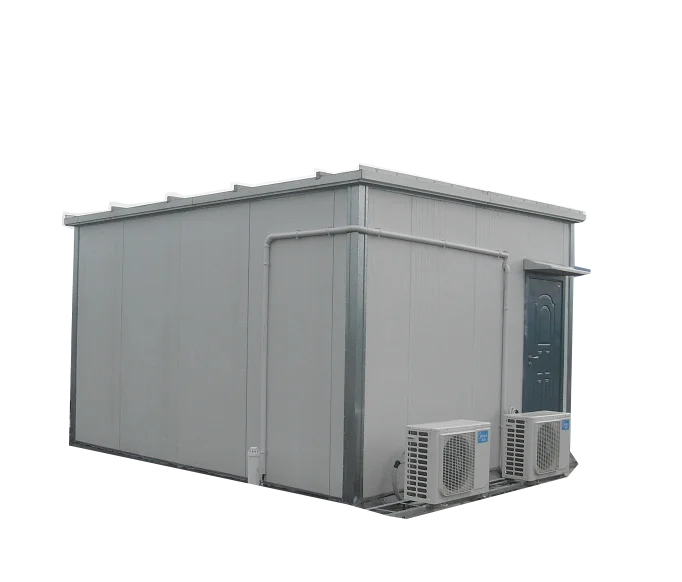

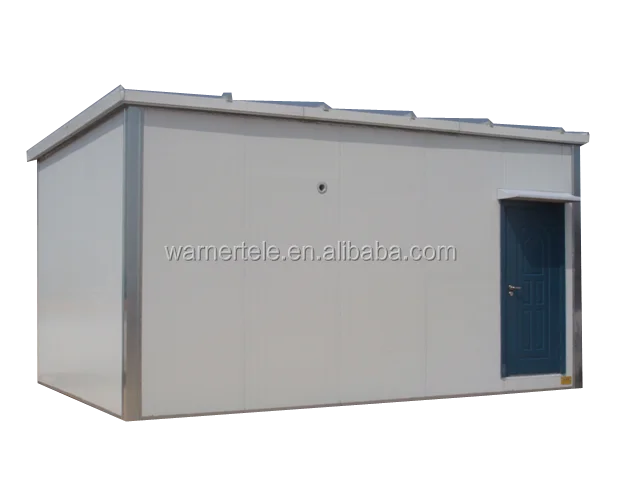

Telecom shelter/PU equipment shelter

 Hybird system PU equipment shelter/telecom shelter
color steel plate
PVC static-free floor
ISO9001:2001
China telecom level

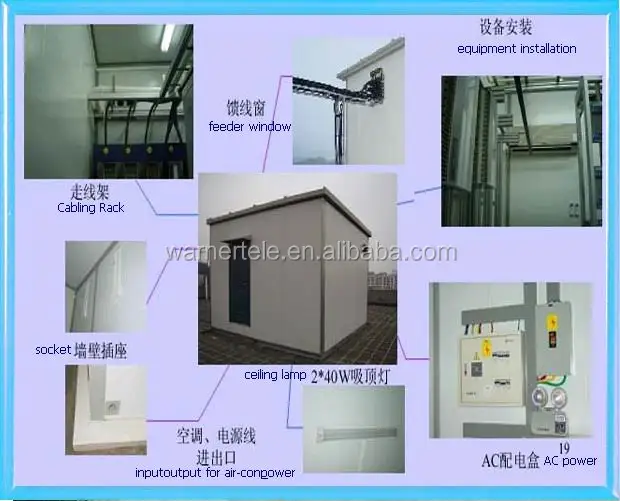

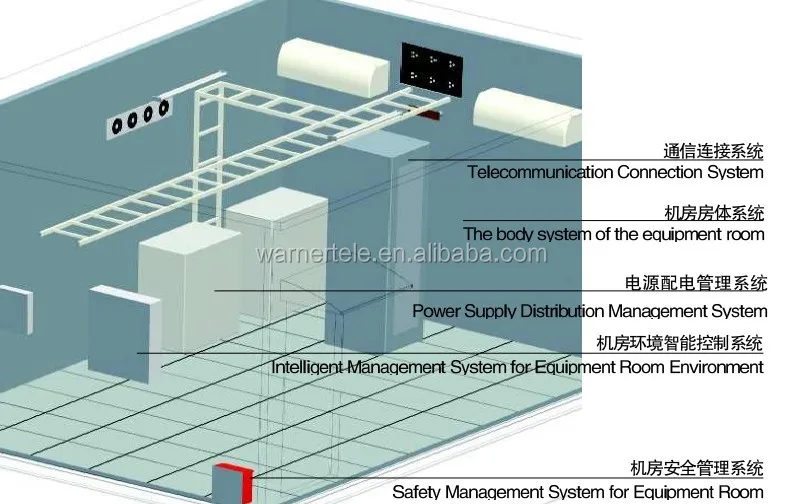

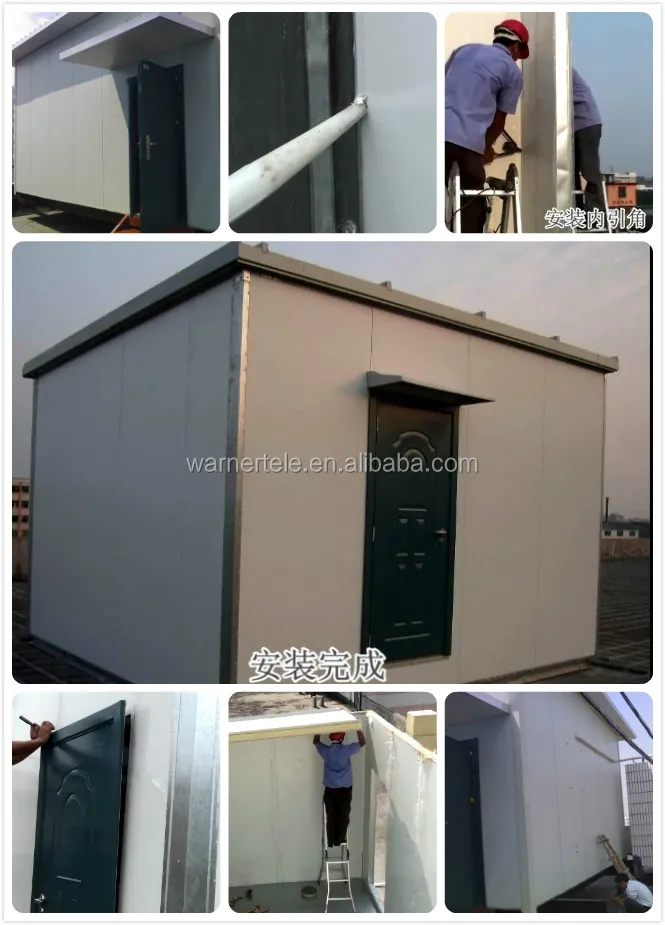

The shelter consist of :

shelter frame , outer Iron clad ,inner PU, PVC static-free floor ,Security emergency door . Inside provide with :

AC distribution system ,lighting system , Fire and Security Safes system . 2°degree leaning roof with perfect draining system .Two air-conditions(12000BTU) In additional with shockproof ,windproof ,damp proof, waterproof , lightening protection , heat insulation , Fire and Security Safes system .etc.







Parameter

1	High Temperature Resistant	-60  +80
2	Anti-wind capability	55m/s
3	Anti-sun photochemical effect	Seal Rubber life time : 30 Years 30
4	shock resistance	8 Grade 8
5	salt spray test	4,, salt spray test 4 days , paint slightly rust allow , no rust on zinc coat .
6	Outside shelter steel thick	4mm
7	inner interlayer thick	0.5mm
8	Inner core materials heat transfer coefficient	0.027W/m.k
9	Inner core materials compression strength	100KPa
10	adherence force	0.09MPa
11	Shear stiffness	0.1MPa
12	Inner core materials Transverse rupture strength	500N/m2,1/250
13	Inner core materials fire resistance	B2
14	water absorptivity	4%
15	Roof load	3KN/m2
16	antistatic floor load	600KG/m2
17	IP	IP55
18	fire resistance	GB8624-1997B2 According to B2 of GB 8624-1997 << Building Materials burning performance Hierarchical Methodology >>
19	Water-proof	0.2Mpa,10mm/min,30min, Endure water pressure 0.2Mpa; Water spray intensity :10mm/min .( for 30 min)   No leakage inside
20	relative humidity	5%99%
21	Paint	anti-corrosive paint( For container only)
22	Load on floor	8KN/ m2
