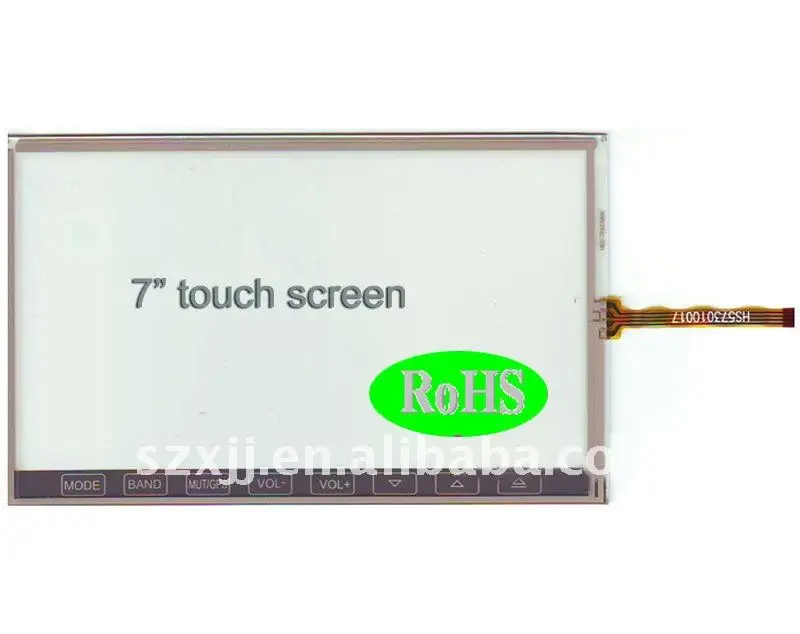

4-провод 7 дюймовый ЖК-монитор с резистивным сенсорным экраном высокой яркости встроенная в транспортное средство планшет для рисования на

This product is for Analog Resistance Type Touch Panel used as the input devices for mobile phone

Features and General Specifications

 Type..4 Analog Resistive Type Touch Panel ,  Input Method..Finger or special Pen

 Structure..Shape, structure and dimension are referred to attached drawing

The appearance of the touch screen size: 165 mm x 100 mm; The touch screen size: 154 mm VA area * 92.5 mm;

The touch screen size: 152 mm AA area * 90 mm; The FPC box seat: touch screen in the right touch screen, touch screen below the right away from among the 50 mm FPC, FPC length: 55 mm

FILM: high bright surface touching (0.188 mm)

GLASS: 500 Ω / / (1.1 mm)

TAIL: FPC (PITCH = 1.0 mm)

Total ply: 1.4 + /-0.15 mm

Structure.. ITO film + ITO glass
The input voltage. More than equal to 10 v
Using temperature. -10 degrees Celsius--60 degrees Celsius
Life.. 1000000 times
Link material. FPC

Insulation resistance: acuity 20 M Ω (25 V DC)
The reaction time. More than equal to 10 ms
Linear.. More than equal to 1.5%
Light transmittance.. Less or equal to 85%
Surface hardness. Less or equal to 3 H (pencil)
Operating strength... More than equal to 80 g

Line... 4 spell

 work environment: 10 °C ~ + 60 °C more than 90% RH

storage environment: 20 °C ~ + 70 °C more than 90% RH

The requirements in “Operation force” of the item “6 Mechanical characteristics” and “8 Electric characteristics” shall be satisfied
