Высококачественный гофрированный кровельный лист без асбеста из поливинилхлоридного волокна

Описание и отзывы

Характеристики



Specifications

Non asbestos cement roof sheet
Non asbestos roof sheet
Non asbestos corrugated roofing sheet

Non asbestos cement roof sheets

Roofing sheet



Standards of  non asbestos cement roof sheets: JIS, KL, TCVN



Advantages of non asbestos cement roof sheets: Completely Asbestos Free

Non asbestos cement roof sheets - Corrosion resistance

Non asbestos cement roof sheets - Weatherproof

Non asbestos cement roof sheets - Non- combustible

Non asbestos cement roof sheets - Maintenance-free

Non asbestos cement roof sheets - Easy to install and fix



Our non asbestos cement roof sheets is 100% ASBESTOS-FREE. Reinforcement material is KURALON fiber (PVA fiber), imported from Japan.

Non asbestos cement roof sheets complies with JIS A 5402:2002 standard.



Big wave profile 177/51 non asbestos cement roof sheets

This profile of non asbestos cement roof sheets is most popular in Vietnam and all around the world which used widely in residential building, agriculture and industrial application.

Colour of non asbestos cement roof sheets: Natural Grey



Materials	(wt%)
PVA fiber "Kuralon"	1.0 - 2.0
Pulp (Cellulose fiber)	2.0 -  5.0
Inorganic additives	5.0 - 10.0
Cement (O.P.C)	Balance



Test method	Results	Measurement
Bending load (more than)	3600	(N)
Water aborption (less than)	30	(%)
Shrinkage	approx. 0.25	(%)
Heat conductivivty	0.3	(kcal/mh°C)



Big wave  -  profile 177/51 fiber cement roofing sheet



Dimension (mm)			Weight (kg/m2)	Mountains	Overall Depth	Pitch of corrugations
Length	Width	Thickness
1520	920 (±5)	6.0 (±0.6)	15-16	5.5	51	177
1800
2500
3000







Medium wave -  profile 130/35 fiber cement roofing sheet



Dimension (mm)			Weight (kg/m2)	Mountains	Overall Depth	Pitch of corrugations
Length	Width	Thickness
1820	960 (±5)	6.3 (±0.6)	14-15	7.5	>35	130
2000
2120
2400

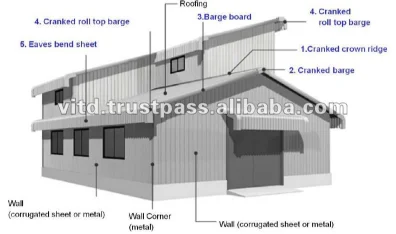

 Full range of accessories for installation:
