CE ErP2018 Improve Indoor Air Quality Energy Recovery Ventilator
Product Description
Why Whole–House Ventilation is So Important
Today’s homes and commercial buildings are built for energy efficiency. That means the entire building envelope is well insulated and tightly sealed in order to avoid heat loss during the winter and incoming heat during the summer. You need to make sure that you have what you need in terms of ventilation so that you can achieve a pleasant and healthy indoor air quality throughout the home or work space.
Whether you are an allergy–sufferer, have a persistent respiratory issue or just want to breathe cleaner air inside your own home, ventilation is of critical importance. The Environmental Protection Agency lists poor indoor air quality as a leading health risk throughout the country, and a heat recovery ventilator can help you achieve great indoor air quality while keeping your monthly energy expenses low.

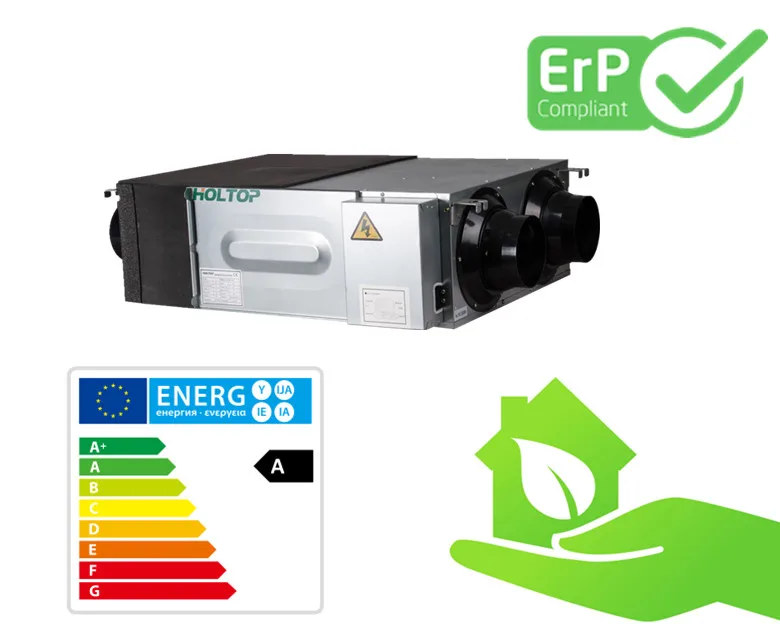

New Eco-Smart HEPA Energy Recovery Ventilator is ERP 2018 compliant. It is built in energy saving BLDC motor, F9 filter, high efficiency enthalpy heat exchanger. Ideal ventilation solution for residential and light commercial project.
Product name | Energy &Heat recovery ventilator |
Brand | Holtop |
Certificae | CE, ErP2018 compliant |
Material | Stainless steel |
Function | Improve indoor air quality, reduce energy loss |
Application | Home,office,factory,plaza,toilets and other house |
Airflow | 350 m3/h |
Motor | Energy saving BLDC motor, 10 speeds control |

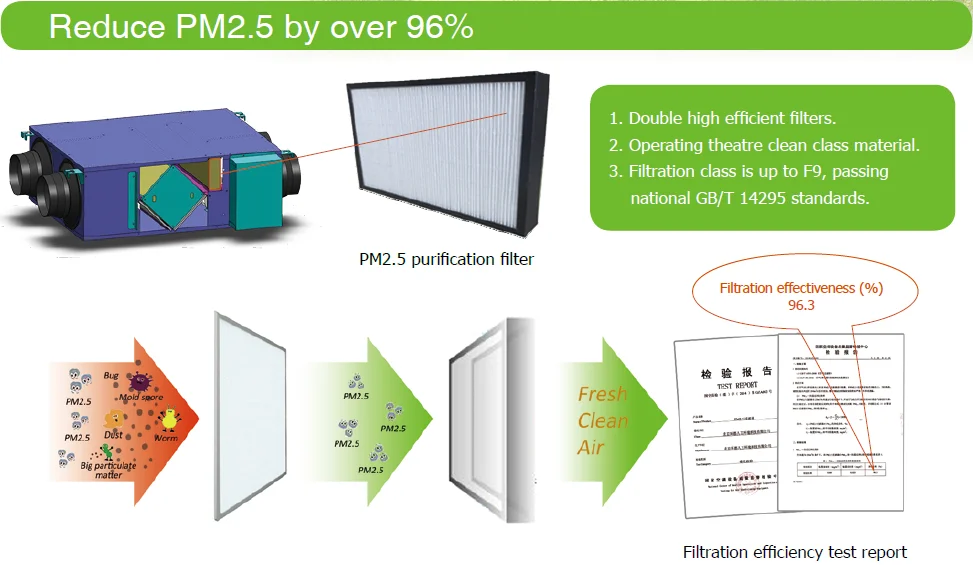

Filter | G3+F9 filter, eficiency over 96% to filter the particulate from 2.5µm to 10µm |
Place of origin | Beijing,China |
Feature:
1)Energy saving BLDC motor, 10 speeds control
2)High eficiency enthalpy heat recovery, more comfortable indoor climate
3) G3+F9 filter, eficiency over 96% to filter the particulate from 2.5µm to 10µm
4) Intelligent control system, optional CO 2 and humidity control function, external control and BMS control available
5)Double filter alarm, timer alarm or diferent pressure gauge alarm available
6) Auto bypass, intelligent controlled by outdoor temperature
Auto bypass- Enables the unit to make natural ventilation in suitable climates,which can prolong the service life of the heat exchanger. The temperature of opening the bypass can be set by users.
| Model | Rated Air Flow (m3/h) | Rated E.S.P (Pa) | Enthaply efficiency % | Temperature efficiency % | Noise dB(A) | Voltage (V) | Power Input (W) | Weight (kg) | |
| Cooling | Heating | ||||||||
| XHBQ-D1.5DMTHA | 150 | 70 | 60-65 | 63-70 | 75-80 | 31.5 | 220-240 | 38 | 25 |
| XHBQ-D2.5DMTHA | 250 | 90 | 62-71 | 65-73 | 73-81 | 34.5 | 220-240 | 85 | 27 |
| XHBQ-D3.5DMTHA | 350 | 140 | 62-70 | 65-73 | 74-82 | 37.5 | 220-240 | 107 | 33 |
| XHBQ-D5DMTHA | 500 | 110 | 63-72 | 67-75 | 76-84 | 39 | 220-240 | 140 | 38 |
| XHBQ-D6.5DMTHA | 650 | 100 | 60-67 | 65-71 | 74-82 | 41 | 220-240 | 160 | 62 |
| XHBQ-D8DMTHA | 800 | 140 | 63-71 | 65-73 | 76-82 | 42 | 220-240 | 188 | 72 |
| XHBQ-D10DMTHA | 1000 | 140 | 60-68 | 62-72 | 76-82 | 43 | 220-240 | 312 | 81 |
| XHBQ-D13DMTHA | 1300 | 135 | 58-71 | 59-75 | 74-82 | 43 | 220-240 | 405 | 81 |
| XHBQ-D15DMTHA | 1500 | 95 | 63-71 | 65-73 | 76-80 | 50 | 220-240 | 700 | 147 |
| XHBQ-D20DMTHA | 2000 | 115 | 60-68 | 62-72 | 76-82 | 51.5 | 220-240 | 724 | 167 |
| XHBQ-D26DMTHA | 2600 | 115 | 58-66 | 59-75 | 74-82 | 55 | 220-240 | 810 | 190 |
| XHBQ-D40DMTHA | 4000 | 230 | 60-68 | 61-71 | 73-81 | 59 | 380-400 | 2140 | 335 |
| XHBQ-D50DMTHA | 5000 | 260 | 60-68 | 61-71 | 73-81 | 68 | 380-400 | 2630 | 395 |
| XHBQ-D60DMTHA | 6000 | 300 | 60-68 | 61-71 | 73-81 | 70 | 380-400 | 3030 | 557 |
ERV Controllers

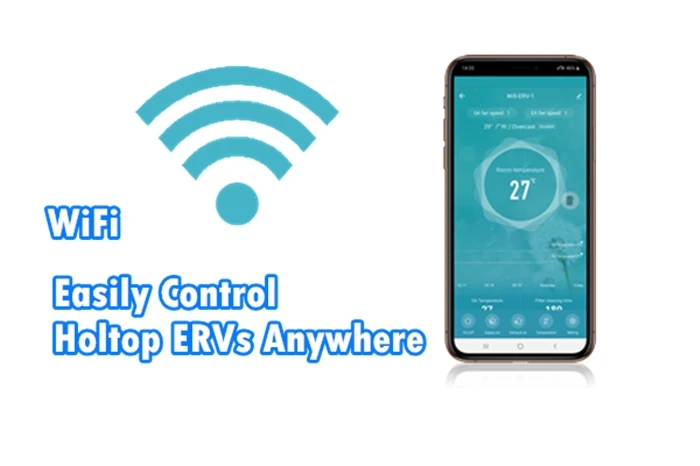

Controller with WiFi Connection Functions. App is available to IOS and Android phones.
| 1. Monitoring indoor air quality | ||||||
| Monitor local weather, temperature, humidity, CO2 concentration, VOC at your hand for healthy living. | |||||||
| 2.Variable setting | |||||||
| Timely switch, speed settings, bypass/timer/filter alarm/temperature setting. | |||||||
| 3.Optional language | |||||||
| Different language English/French/Italian/Spanish and so on to meet your requirement. | |||||||
| 4.Group control | |||||||
| One APP can control multiple units. | |||||||

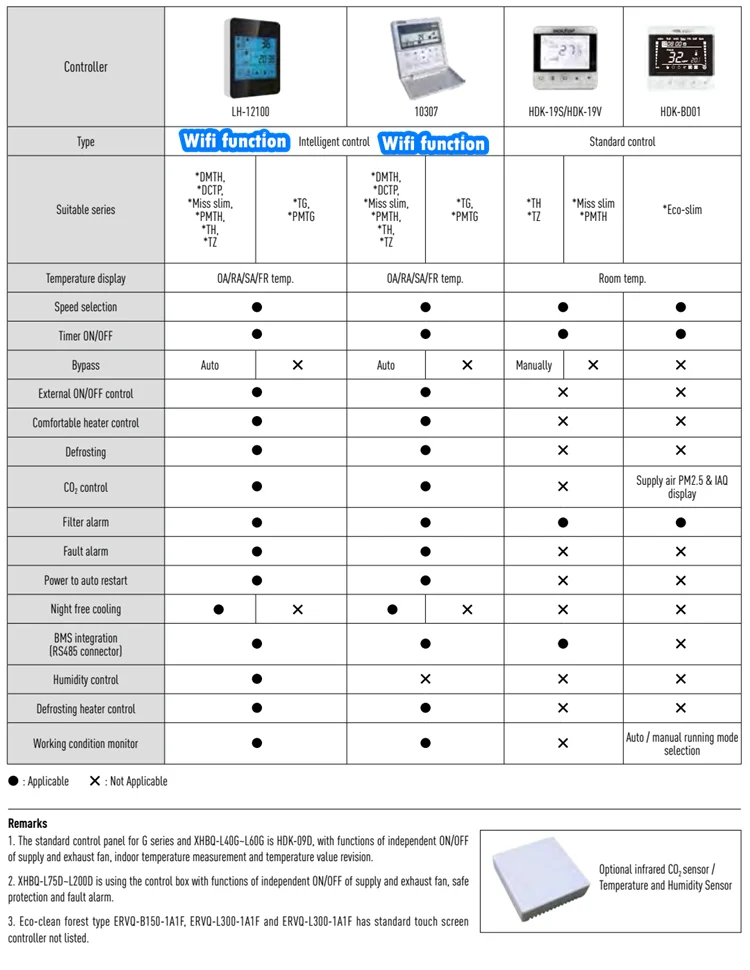

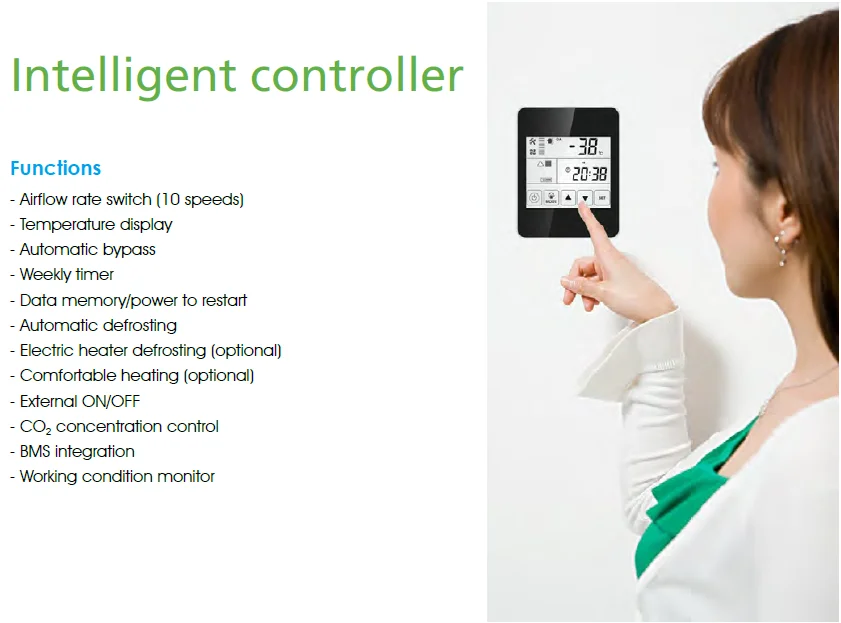

| Functions of Intelligent Controllers | ||||||
| 1) Individual supply and exhaust fan speeds and ESP control (AC 3 speeds DC 10 speeds) | ||||||
| 2) outdoor temperature, indoor temperature, supply air temperature and exhaust air temperature display | ||||||
| 3) weekly timmer function | ||||||
| 4) Auto bypass and auto defrost funciton | ||||||
| 5) Intergated RS485 connector for BMS control(on PCB) | ||||||
| 6) External on/off control and fire alarm control, inter lock function (on PCB) | ||||||
| 7) Faulty signal output for monitoring function (on PCB) | ||||||
| 8) Night free cooling function (on PCB) | ||||||
| 9) Optional CO2 sensor and humidity sensor to control CO2 concentration and indoor humidity | ||||||
| 10)Optional electical heater for supply air or outdoor air (alternative for comfort ventialtion or extremly winter low temperture defrost) | ||||||
| 11)Optional central control by one multi controller (up to 16pcs ERV controlled by one controller) |
Holtop Energy Recovery Ventilators (ERVs) are a variation of heat recovery ventilators (HRVs). The two systems use the same working principle. The only difference is that in ERVs, the system allows for partial transfer of heat – and moisture – from the outgoing stale air to the incoming fresh air.
Company Information

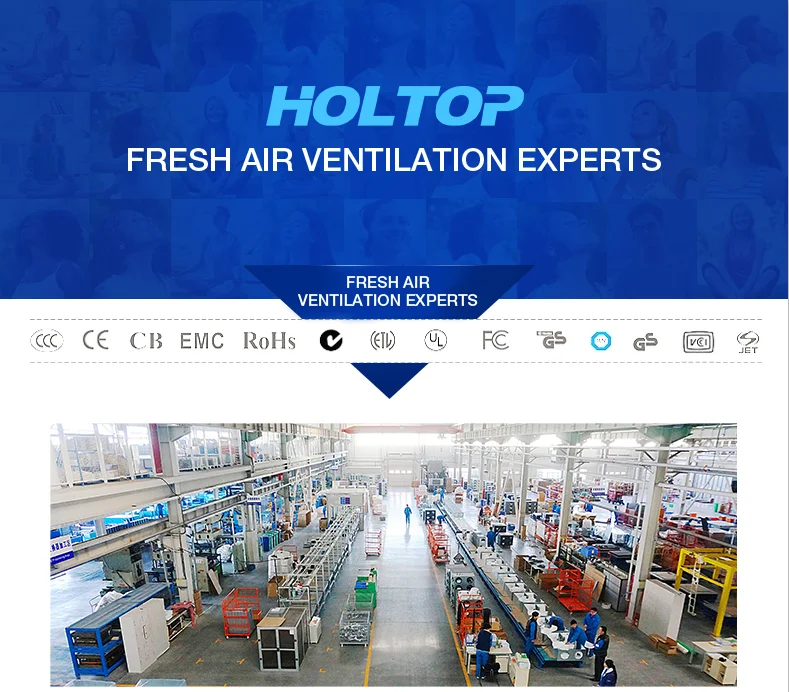

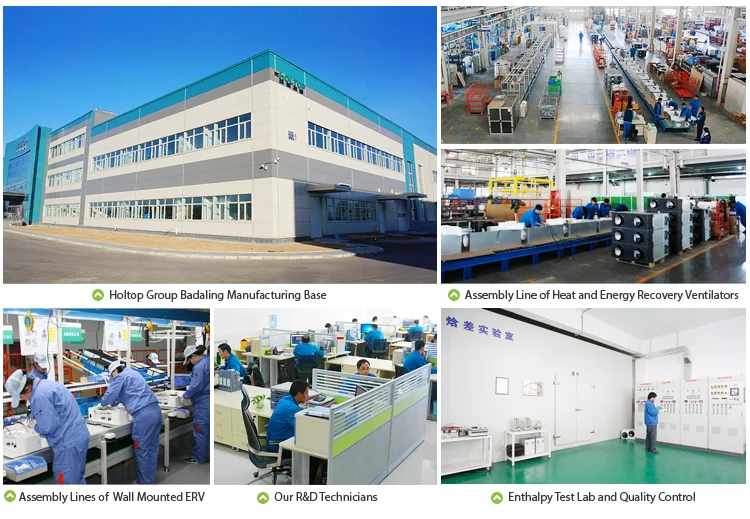

Holtop Factory
Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments. It is dedicated to the research and technology development in the field of heat recovery ventilation and energy saving air handling equipments since 2002. The main products incluses energy recovery ventilator ERV/HRV, air heat exchanger, air handling unit AHU, air purification system. Besides, Holtop also offer turnkey hvac solutions for different industry.

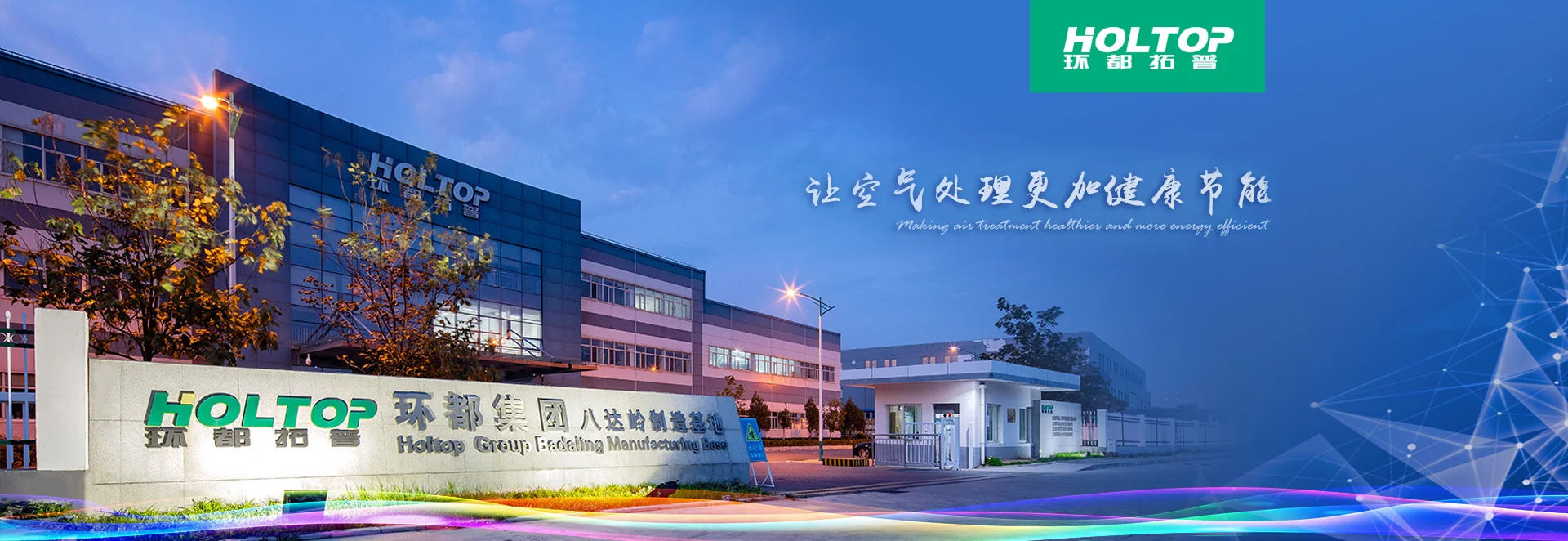

Holtop headquarters is located at the foot of Beijing Baiwangshan Mountain, covering area of 30,000 square meters. The manufacturing base is in Beijing's Badaling Economic Development Zone, covering an area of 60 acres, with an annual production capacity of 200,000 units of air heat recovery equipments.
Holtop builds a sound certificate system of ISO9001, ISO14001 and OHSAS18001 as well as product certification systems. Moreover, it has a laboratory certified by national authority. As a well-known manufacturer in the field of heat recovery, Holtop has a strong R&D team and possesses dozens of national invention patents, and participated in the compilation work of several national standards, Holtop was also elected as Zhongguancun High-Tech Enterprise.
Holtop partner
Holtop cooperate with so many world famous brands, offering OEM /ODM service.
Holtop certificate
Holtop products stand for TOP quality in heat recovery ventilation filed in China, certificated by CE, CB, RCM, RoHs, FCC, ISO and other different approved tests like anti-flaming test, anti-mold test, energy saving product test. Etc.
