385nm УФ светодиодная система отверждения для гравировального

Описание и отзывы

Характеристики







Lamplic is the pioneer of UV LED curing total solution for gravure printer.

Lamplic's UV LED solution can get similar printer speed and effect with traditional gravure printer, it also meet the technology demand of surface printing, inner printing and transfer printing.

No VOC, no smell . Anymore, can dry well under 200Metres/Minute.



Lamplic's UV LED solution for gravure printer use UV LED inks , it can stop

VOC from the source. The cost of our solution is similar to traditional gravure printing.



Product Specification



Model	Light area(MM)	Wavelength(NM)	Work distance(MM)	Light intensity(W/CM2)	CoolingMethod	Electric Power
LW1050*20	1050*20	395&385nm	10MM	20	Water cooling	4800W
LW660*20	660*20	385&395nm	10MM	20	Water cooling	3000W





Notes:  Lamplic can produce difference lamp size according customer requirement.





 Product Feature

1. High light intensity, fulfill the gravure printer 200metres/minutes high speed

2.  High quality and convenient controller, easy installation and work for different offset printer.

3.  Cool light source, avoid paper distortion

4. over temperature alarm

5` Light intensity is auto-dimmable according printing speed



6·Light off and alarm while circuit break, guarantee printing quality



Product application

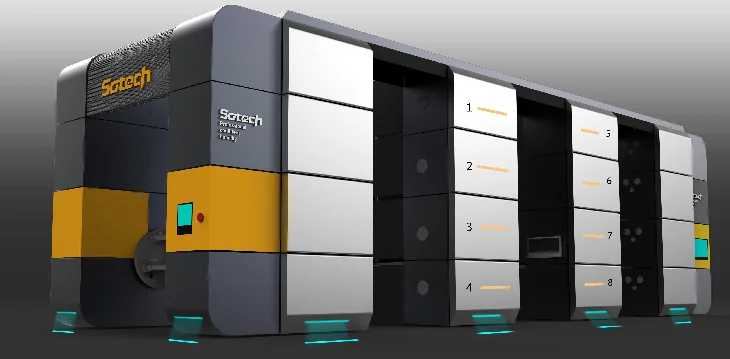

Lamplic's UV LED curing system for gravure printer already successful used in many gravure printer, such as Shaanxi Beiren Printing Machinery Co.,Ltd , Sotech Smarter Equipment Co., Ltd.
