Стальная машина для полировки квадратных труб для алюминиевых труб
US $46000-$50000
Вибрационная вращающаяся машина для отделки
- Категории: Metal Polishing Machine >>>
- Поставщик: Huzhou,Xingxing,Abrasive,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Adoption of centrifugal force theory to process the workparts with improved efficiency of 5-10 times, applicable to process medium and large size workparts in large amount load, especially for the complex structure workparts. It enjoys the small sound and easy operation capability.
SPECIFICATIONS FOR VIBRATORY FINISHING MACHINE XXGP-A100 | ||||||
Vibratory Finishing Machine | Machine Type | XXGP-A100 | SET | |||
Motor | 1.5 | KW | ||||
Barrel Speed(adjustable) | 28-40 | RPM | ||||
Main parameters | Machine Size | 1190*870*1080 | MM | |||
Process Vessel Volume (L) | 100 | L | ||||
Other information | Lining | Rubber lining | Rubber | |||
Lining thickness | 8-15 | MM | ||||
Voltage | 220V-440V | 3 Phase | ||||
Detailed Images
Main Features
1. The XXGP-100 rotating barrel machine is CE certified.
2. The XXGP-A100 rotating barrel machine type above is hexagonal shape, with 100 Liters capacity.
3. Good quality brake motor, CE certified.
3. With good quality rubber lining inside.
4. Safe 24V control voltage for the independent control panel.
5. Inching, forward and backward rotating, timer, motor protection breaker, emergency button.
6. OPTION: Taiwan brand 1.5KW inverter as an option for customer to adjust the barrel RPM between 28-40 speed, with Frequency digital display.

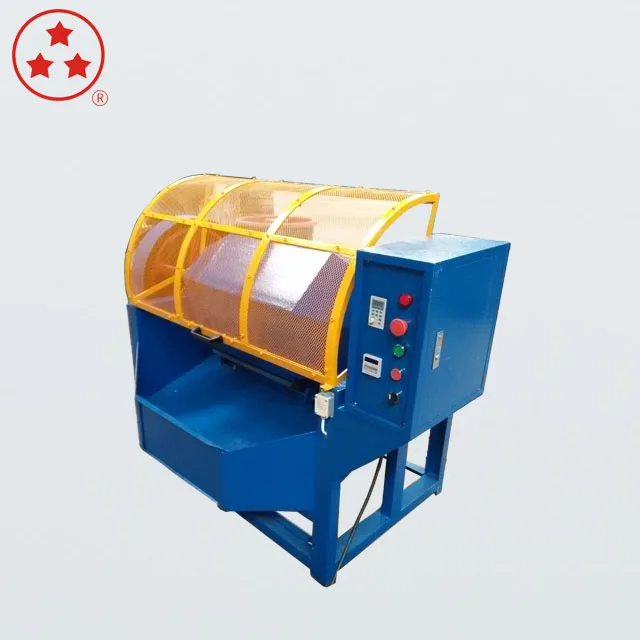

7. OPTION : Safeguard fence as an option. It is an option for worksafe protectionn, not a necessary need for the machine.
Name: Rotating barrel machine
Brand: Xingxing
Original: Zhejiang, China

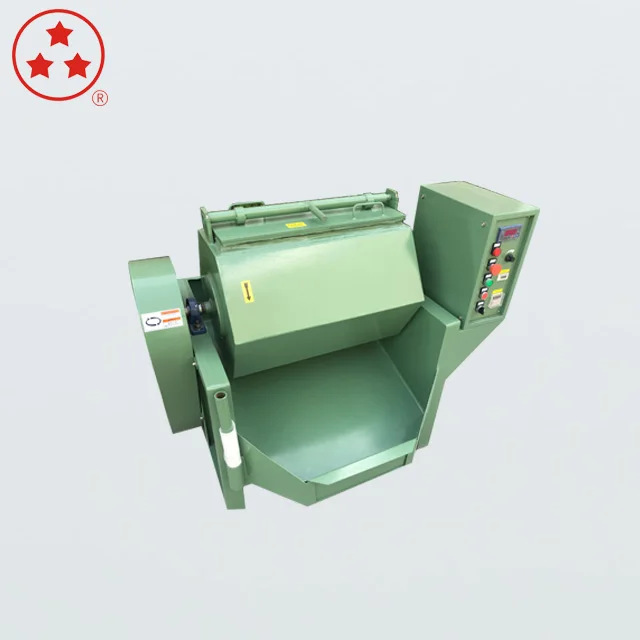

The XXGP-A100 rotating barrel machine type above is hexagonal shape, with 100L capacity.
Brand: Xingxing
Original: Zhejiang, China

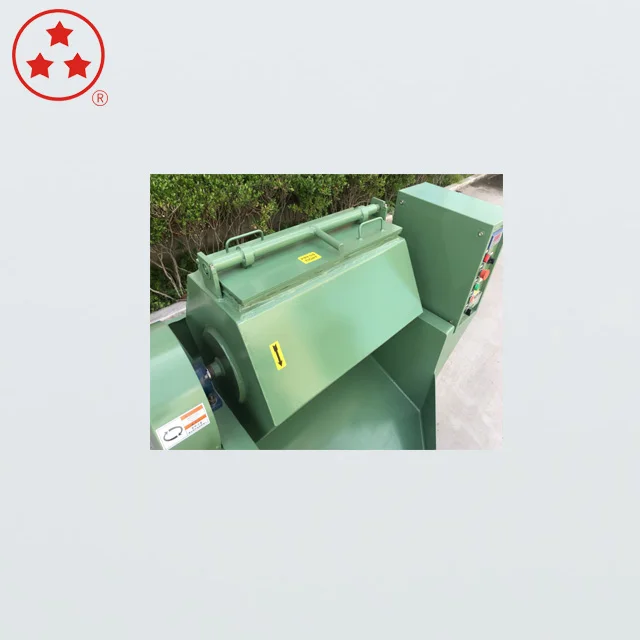

Machine with reliable rubber lining inside.Rubber is with good quality and long service life.
Brand: Xingxing
Original: Zhejiang, China

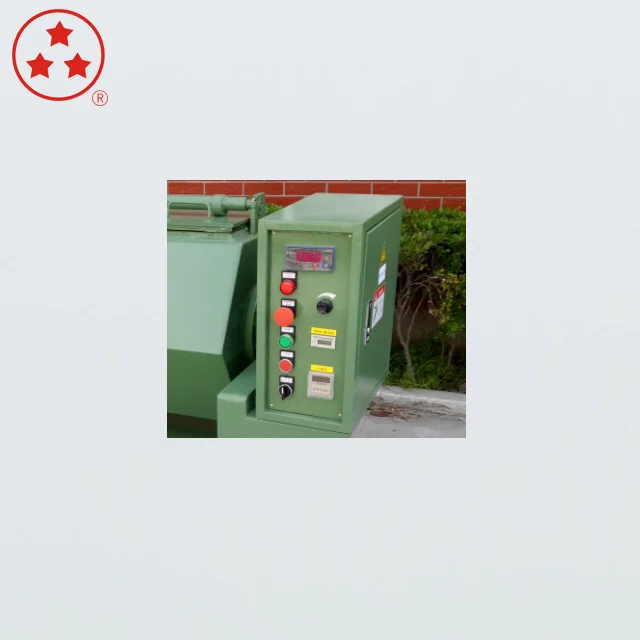

Inverter control box, with timer, start, stop, emergency stop button, speed control display, and inching functions.

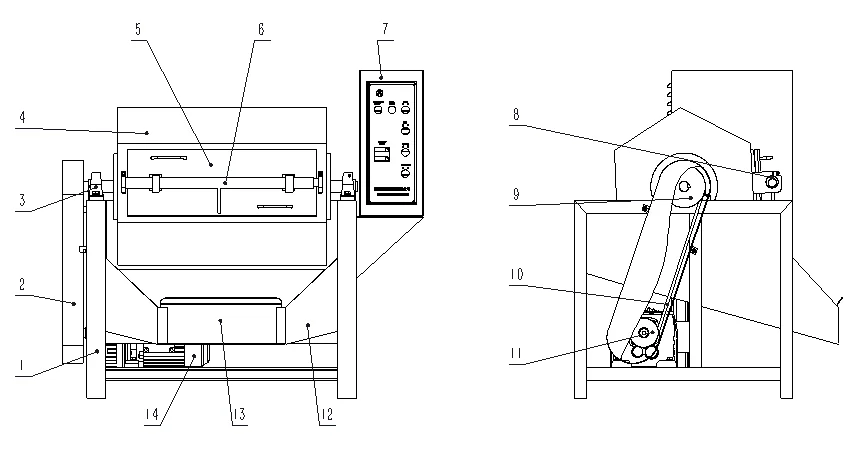

1 . Machine frame 2 . Belt protective cover
3 . Bearing 4 . Barrel body
5 . Barrel cover 6 . Carrying pole
7 . Control panel 8 . regulating sleeve
9 . Driven pulley 10.“V” belt
11. Motor pulley 12. Guide plate
- 13. Dam board 14. Gear motor
Related Products
Packing&Shipping
Packing:wooden case
Suitable for sea shipping
Certifications
After Sales Service
Our company pays great attention to quality problems. In case of quality problems, you can discuss with us.And our warranty is for one year.
we offer perfect surface finishing technology!
Company Introduction
The company has been awarded province and municipal titled " Excellent Technology Advancement"
for several times. The company has set up a strict quality assurance system, it passed the ISO:
9001:2000 in 2004, and CE certification in 2008.
The company mainly has three production workshops for mass finishing machinery, mass finishing
media, and compound, which are integrated to offer our customers with complete mass finishing
solutions. The company has a variety of finishing machines available in five categories: Vibratory
finishing machine, Centrifugal barrel machine, Centrifugal disc machine, Rotating barrel machine,
and shot blasting machine.
There are three series of mass finishing medias as ceramic media, plastic media, special media, and
more than thousand specifications.
In addition, Xingxing Abrasive also supply 12 kinds of polishing compound for mass finishing solutions.
The mass finishing product serves every sector of modern industry, such as aviation, automobile,
motorcycle, engine, compressor, textile machinery, alloy metal, non-metal workparts,, magnetic
products, and decorations, etc
