5MW Solar Panel Production Line
Detailed machiens
1. Semi automatic laminator (RO-B1)
http://preview.alibaba.com/product/537543641-209683101/REOO_quality_guarantee_semi_auto_solar_panel_lamintating_machine_Turnkey_basis_.html
| Temperature control: | PID intelligent temperature control system |
| Temperature uniformity in working area: | ≤ ± 3 ℃ |
| Temperature control accuracy: | ≤± 1 ℃. |
| Temperature control range: | 30℃ - 180 ℃ |
| Laminating time: | 2-4 mins ( excluding sollidification time ) |
| Heating rate: | 135℃ at room temperature with 50 to 60 minutes |
| Vacuum rate: | 30 L/S |
| vacuum Time: | 90 seconds |
| Silicone sheet size: | 2650mm*1650mm |
| Production Capacity: | |
| 300 WP*1 pieces/ time*3time/h*8hours*300days= 2.16 MWP / year. 8 hours/day | |
2.Solar cell tester
http://reoo.en.alibaba.com/product/945952587-209683101/Solar_cell_tester_for_solar_module_manufacturing_line.html
| Light intensity: | 100mW/cm2 (continuous adjustable range 70-120W/cm2) |
| Light intensity non-uniformity: | ≤±2% |
| Light intensity Instability degree: | ≤±2% |
| Test result consistency: | ≤± 1% |
| Test error of electrical properties: | ≤± 2% |
| Single flash time: | 10ms |
| Effective Test range: | 200x200mm |
| Measuring voltage: | 0~0.8V(resolution 1mV) |
| Measuring current: | 0~20A(resolution 1mA) |
3.Solar module tester
http://reoo.en.alibaba.com/product/945964367-209683101/REOO_Grade_A_solar_cell_module_tester_high_quality_low_investment.html
| Lamp Spectrum: | PID intelligent temperature control system |
| Light intensity: | 100mW/cm2 (continuous adjustable range 20-120W/cm2 ) |
| Light intensity non-uniformity: | ±2% |
| Light intensity Instability degree: | ≤±2% |
| Test result consistency: | ± 0.5% |
| Test error of electrical properties: | ≤±1% |
| Single flash time: | 10 - 100ms |
| Effective Test range: | 2000x1200mm, 5 – 300W |
| Measuring voltage: | 0~100V ( resolution 1mV ); |
| Measuring current: | 0~20A ( resolution 1mA ); |
| Power Supply: | 220V ± 10% 5A |
| Grass Weight: | 350kg |
4.EL tester
http://reoo.en.alibaba.com/product/586464140-209683101/2016_New_REOO_Solar_module_EL_tester_electroluminescent_inspection_16_million_pixel.html
| Testing module: | 2100mm x 1200mm |
| Can testing module: | 10A,Maximum 60V |
| Include: | Cabinet(Include infrared camera)+ Computer + Software |
| Pixel: | 4928*3264 = 16 million |
| Time of exposure: | 0.1 S-25.5 S Adjustable |
| Power: | 220V 10A or customize |
| Working environment temperature: | 10 -30 ℃ |
| Humidity: | 20 - 70% |
| Power consume | 1 KW |

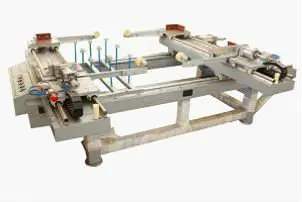

5. Framing machine
http://reoo.en.alibaba.com/product/1440807009-209683101/Easy_operation_and_high_quality_solar_panel_framing_machine_for_solar_assembly_line.html
| Dimension: | 3000*1700*920mm |
| Solar panel minimum size: | 350*600*50(35)mm |
| Solar panel maximum size: | 1100*2000*50(35)mm |
| Power: | 0.1KW, AC220V/50Hz |
| Weight: | 1100kg |
| Application of aluminum frame: | 35*50mm |
6. EVA, back sheet cutting station
http://reoo.en.alibaba.com/product/60450257534-209683101/REOO_EVA_and_TPT_cutting_machine_for_solar_panel_production_line_with_electrical_knife.html

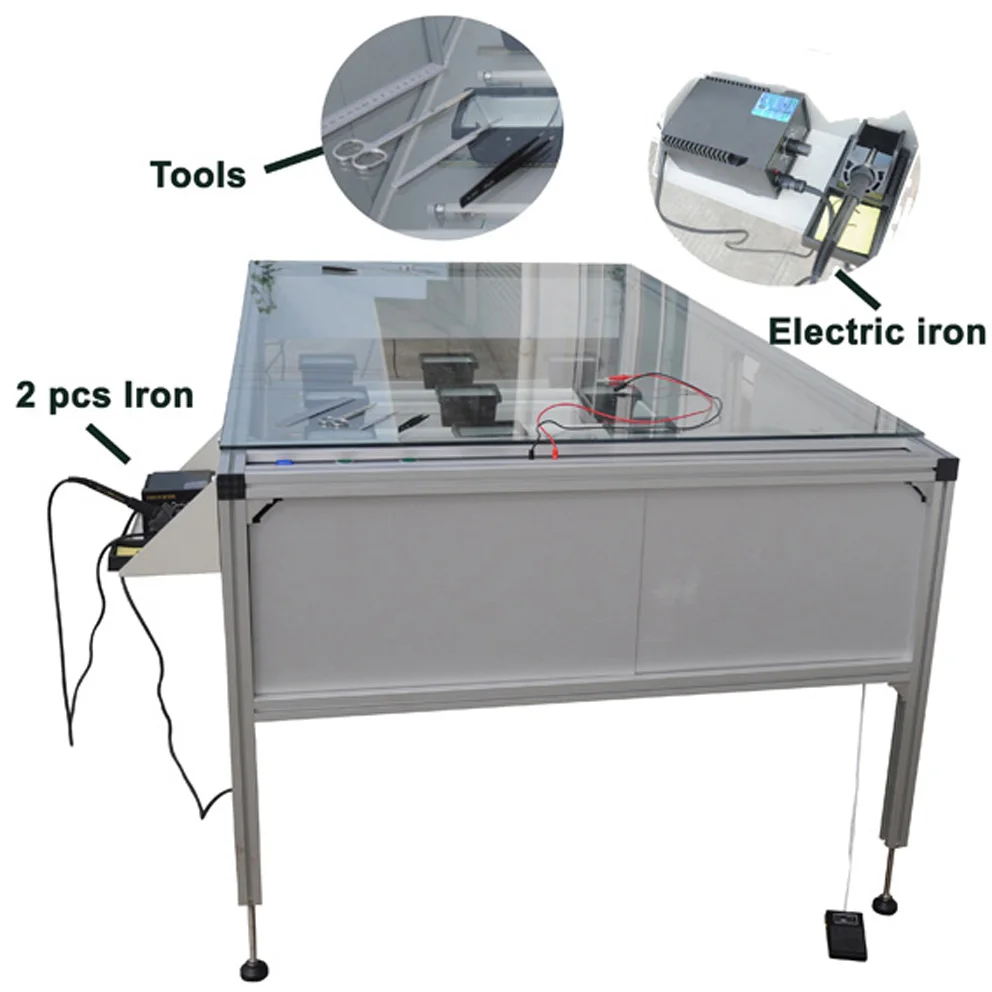

7. Solar cell soldering station
http://reoo.en.alibaba.com/product/528719713-209683101/Easy_operation_soldering_station_table_for_solar_panel_production_line.html
| Worktable | 2140mm*1200mm*1900mm | 1 pc | |
| Electric soldering iron | Intelligent lead free 203H | 3 pcs | |
| Single soldering heating plate | Warn-up for soladering | 2 pcs | |
| Single soldering controller | Constant temperature | 2 pcs | |
| String soldering heating plate | Warn-up for soldering | 1 pc | |
| String soldering controller | Constant temperature | 1 pc | |
| String soldering mold | 125*125 | 1 pc | |
| String soldering mold | 156*156, 2 bar ines | 1 pc | |
| String soldering mold | 156*156, 3 bar lines | 1 pc | |
| String cell tray | 12 cells | 1 pc | |
| Working chair | Mobile | 3 pcs |
8. Soldering ribbon cutter
http://reoo.en.alibaba.com/product/1095265467-209683101/Soldering_ribbon_cutting_machine_used_in_solar_panel_manufacturing_line.html
| The material of welding strip: | Tineed copper alloy |
| Straightening: | 98% |
| Cutting accuracy: | L+-0.5+0.002L |
| Cutting Length: | 1-9999.9mm |
| Maximum welding strip size: | 8*0.2mm |
| Processing speed: | 350/minutes |
| Power: | 220V 50Hz |
| Power: | MAX 250W, Minimum 20W |
| Volume: | 395*265*355mm |
9. Laying up station
http://reoo.en.alibaba.com/product/591011556-209683101/REOO_Laying_up_station_for_solar_panel_production_line.html
10. Laser dicing machine
http://reoo.en.alibaba.com/product/999032838-209683101/REOO_High_efficiency_solar_cell_laser_dicing_machine_cutting_machine.html
| Laser Wavelength: | 1064mm |
| Laser mode: | Semi-conductor |
| The maximum output power of laser: | ≥50W |
| Laser modulation frequency: | 200Hz~50KHz(Adjustable) |
| The size of work: | 320mm*320mm |
| Scribing speed | 120mm/s |
| Marking line depth: | 0.01-0.3mm (Visual material) |
| Using power: | 220V/50Hz/3KW |
| Cooling: | Water / compressor cooling |
More details please check our videos on Youtube. Please click below website:
https://www.youtube.com/watch?v=QhR81yLzNIs
https://www.youtube.com/watch?v=HTQ1AJD-1bs
Total free standard accessories will be provided!
Vacuum pump: 1 set
Cooling water pump: 1 set
Teflon sheet: 2 pcs.
Thermal insulating gloves: 2 paris.
Graphite seal: 1 sets.
High pressure pneumatic gluing gun: 1 pc.
Intelligent lead free electrical iron with specialized solder tips: 6pc
Tray for dipping soldering ribbon into flux: 1 pc
Filter screen: 1 pc
Dryer: 1pc
Constant temperature soldering iron for laying up: 4pc
Electrical edge trimming cutter: 1pc
Latex fingerstall: 1000pcs
Solar cell for training: 100pcs.
Total : USD6200.00 It is free!!!
Our Services
Installing:
We arrange our engineers to buyer’s factory to install machine.
All expenditure on travel, food,accommodation and transportation of our engineers/ technicians for installation will be borne by buyer. REOO company borne the salary of engineer/technicians.
Training:
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
Buyer borne air tickets, lodging, food and training material .
Packing:
All the equipment, tools, accessories and goods be suitably packed. All packages are liable to be opened for
customs examination and packing shall therefore be designed to facilitate opening and repacking thereafter.
Each package shall have the shipment information printed on it in bold letters.
Manuals/Documents:
Operational and maintenance manuals of all equipment is in English, along with a soft copy in a CD
(compatible version: MS Word/ PDF).
Raw material:
We supply all the material for production solar panel from China for trial production and formal production,
buyer pay for the cost.
Our Clients
Our Company
REOO Technology Co., Ltd. is a leading manufacturer for solar panel assembly production line in China. We have 9 years history to manufacture all size of laminator also whole of production line. We have a great deal of experience for design, manufacturing, shipping, installation, commissioning and training for solar panel production line . We have exported many of production line to other countries. This specification include design, manufacturing, shipping, testing and commissioning of assembling plant of solar panel on turn key basis. The assembling plant should have a production capacity of 1 MW/year considering 80% uptime and single shift of operation.
Contact with me
 | Holly Song
NANTONG REOO TECHNOLOGY CO.,LTD. Add: Chennan industrial park, Rudong, Jiangsu, China Zip.226400 Mobile number: +86 187 5282 7203 Tel: +86 513 8410 5399 Fax: +86 513 8410 5505 Skype: reooholly What's App:+86 187 5282 7203 |
