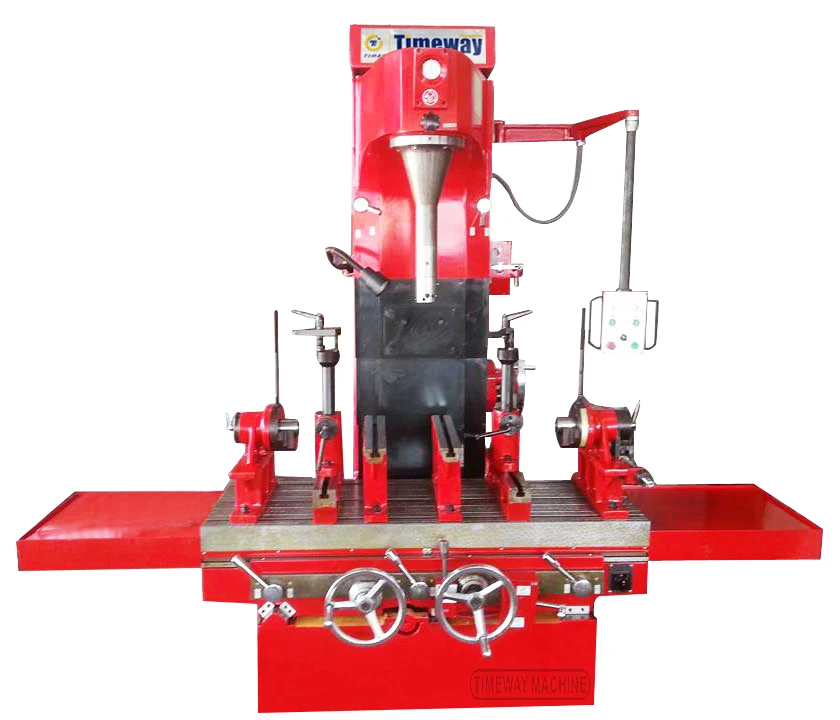

VERTICAL BORING MACHINE


Boring Machine T7220C.jpg


 Features:


   Vertical boring machine is mainly used to bore high accurate holes of cylinder body and engine sleeve and other accurate holes.



  • The table longitudinal and latitudinal moving device;

  • Boring measuring device;

  • Also provides optional digital readout for the table's longiland latimoving accessories to servo the users.





 Specification:






























































































Specification



 T7220C



Max. boring diameter



Φ200 mm



Max. boring depth



500 mm



Milling cutter head diamenter



250 mm



Max. milling area (L×W)



850×250 mm



Spindle speed range



53-840 r/min



Spindle feed range



0.05-0.20 mm/r



Spindle travel



710mm



Distance from spindle axis to carriage vertical plane



315mm



Table longitudinal travel



1100 mm



Table longitudinal feed speed



54,108 mm/min



Table longitudinal quick move speed



1500 mm/min



Table cross travel



100 mm



Boring dimension accuracy



IT7



Milling dimension accuracy



IT8



Roundness



0.005



Cylindricity



0.01/300



Boring surface roughness



Ra1.6



Milling surface roughness



Ra1.6-3.2



Overall dimensions (L×W×H)



2610×1600×2350 mm



Packing dimensions (L×W×H)



1850×1840×2230 mm



N.W./G.W.



3600/4000 kg

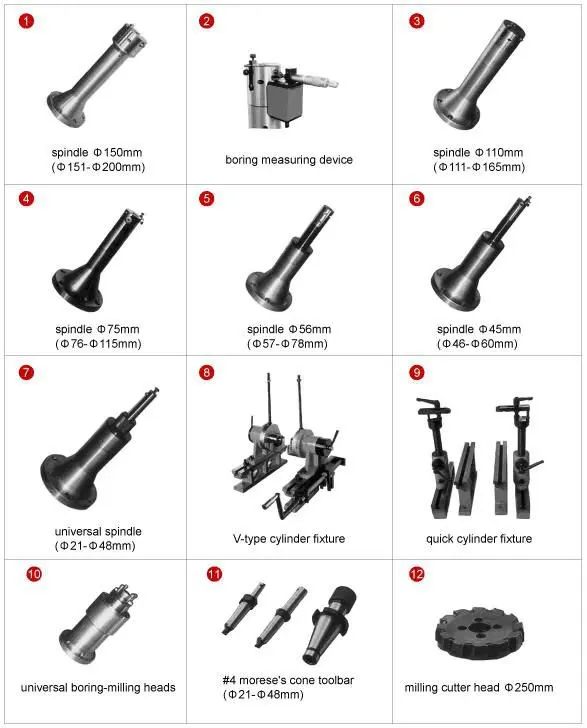

Standard Accessories: 1,2,10,11,12


Optional Accessories: 3,4,5,6,8,9
