TOMA Central roller shutter door machine



1. Central roller shutter door motor(One set includes 1 pc motor,6.5m brake cable,4.5m power cable 4 lines,1 pc mini switch,1 pc instruction)



2. A safe and easy-to-use system in one model,suitable for different tyoe of posts and sprins. The TM200/60-H,TM240/70-H series operators allow for modular installion without the need to make any adaptations. Safe and raliable of the maximum power verastile in every way. All of the TM200/60-H, TM240/76-H series operators are suitable for Φ200-260 mm springs. Flexibility of use and powerful lift, all in one model. The TM200/60-H, TM200/76-H series operators are the optimal solution provide automation to all types of rolling shutters without needing to modify original structure of the shutters.



Description:



Item name	Model	Torque	RPM	Cut Out Temperature	power	Consumption	Lifting weight	Tube Rolling	Pulley
Central roller shutter door motor (One set includes 1 pc motor,6.5m brake cable,4.5m power cable 4 lines,1 pc mini switch,1 pc instruction)	230V/50Hz	(NM)		(MIN)	(W)	(A)	(Kg)	(mm)	(mm)
	TM200/60-120H	120	10	4	460	2	120	60	200-220
	TM200/60-150H	150	10	4	600	2.6	160	60	200-220
	TM200/60-180H	180	10	4	750	3.26	200	60	200-220
	TM240/76-420H	420	10	4	1000	4.36	360	76	240-260
	TM200/60-120R	120	10	4	460	2	120	60	200-220
	TM200/60-150R	150	10	4	600	2.6	160	60	200-220
	TM200/60-180R	180	10	4	750	3.26	200	60	200-220
photocell	TMPC1	/
alarm lamp	AL01A-220V	/	220V
"200"Means tube diameter,"60"Means inside diameter,"120"Means torque,"H"Means with handle control

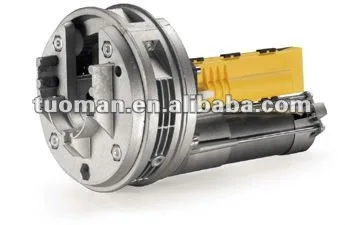

Picture:
