Big LED Desktop Screen printing exposure machine
Product Description
| Name | Big LED Desktop Screen printing exposure machine |
| Application | The LED exposure unit is used in the filed of plate-making such as pad plate, screen plate, hot stampe plate, resin plate. when you put the film onto the plate into UV LED exposure machine, start it, the emulsion on the plate will appear a unseen imagine. this is important process on all plate-making technology. |
| Feature | |
| 1 | Adopting high efficiency UV LED light source,which save 80% electricity than ordinary model. |
| 2 | Have 576 pcs light sources to array very average. |
| 3 | PLC controlled panel, very easy to operate. |
| 4 | Automatic memory function for working as original seting next time |
| 5 | Perfect exposure effect because of LED light. |
| 6 | Fast exposure time,about 40-70 seconds. |
| 7 | Energy saving and environment friendly. |
| 8 | Stable exposure quality,more lifetime. |
| 9 | Durable and beautiful with steel coat. |
| 10 | Outside connecting power plug, safety and convenience. |
| 11 | Easy to transport,LED light is not fragile in delivery. |
| 12 | Have 3 piece triangle steels to strengthen it for steady. |

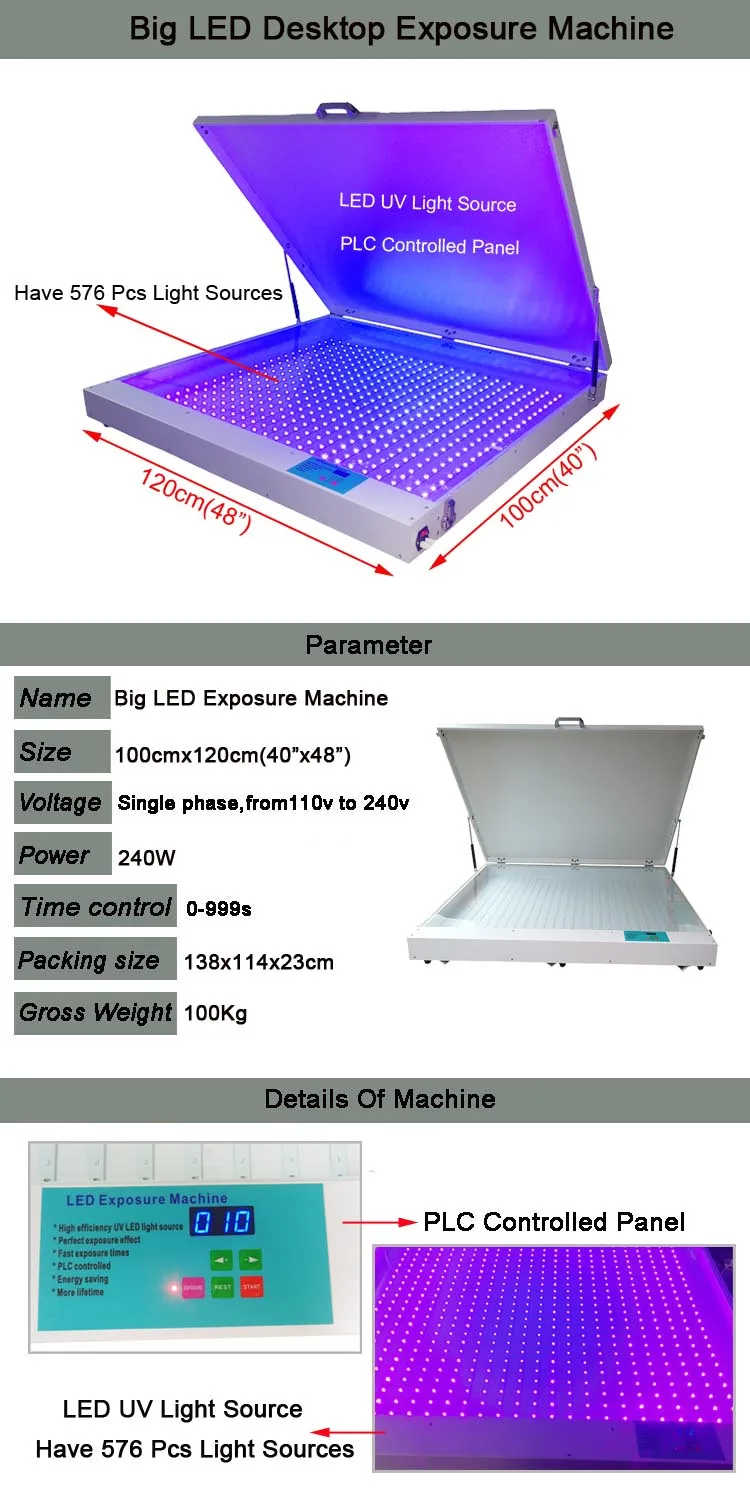

| Parameter | |
| 1 | Size of machine:1000mmx1200mm(40"x48") |
| 2 | Max.exposing area(mm):1060mmx1260mm |
| 3 | Voltage (single phase ): 220V or 110V |
| 4 | Time control: 0-999s |
| 5 | Power of lamps: 240W (24 10w UV LED-line) |
| 6 | Packing size: in one caton(1380*1140*230mm) |
| 7 | Weight: 100KG |
| Warranty | For all our machines, we provide one-year warranty. Life-long on-line technical support and provide free parts when problems occur within one year not including shipping cost. Any warranty shipping cost to us is responsible by buyer. Any shipping cost to buyer is responsible by us. |

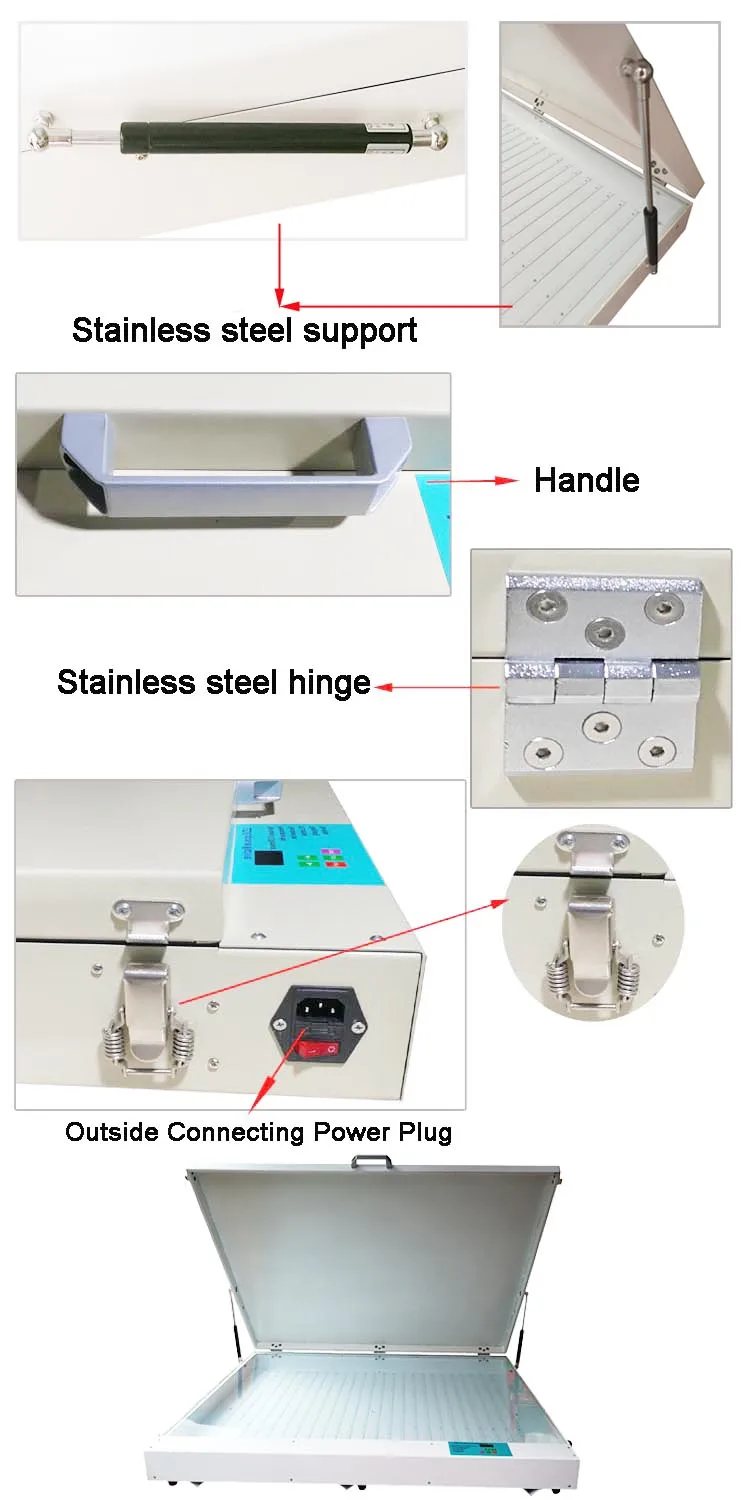

Detail Of Picture
Packaging & Shipping
