Подводная рыболовная камера с кабелем 20 м ЖК-дисплей 7 дюймов рыбопоисковый прибор вращением на 360 градусов и 12

Описание и отзывы

Характеристики

20m cable 7" LCD Underwater Fishing Camera 360 degree Rotation Fish finder with 12pcs  LED

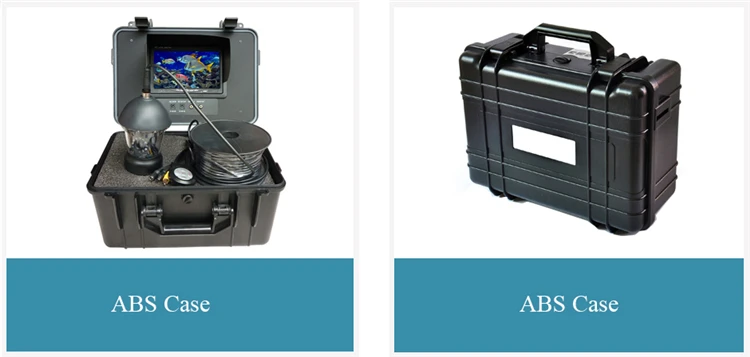

This color CCD camera can emit a bright white light and can be used to observe what's happening under the water.With the control panel, you can control the panning of the camera to see 360 deg horizontally.With this underwater camera you will know the kind and number of fish in the water.Just drop it to any spot in the water and you can have a 360 degree view!Portable case with built-in LCD, and a rechargeable battery You will find many uses for this camera.

Camera Feature:

Specification:

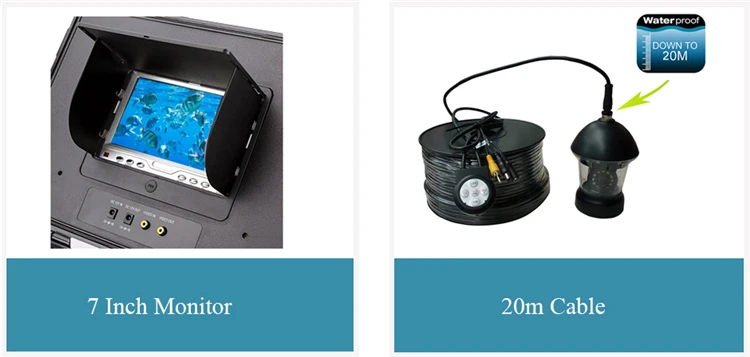

Monitor	7”
System	PAL/NTSC
Monitor resolution	1440*234
LCD monitor angel (°)	65/65/40/65
Brightness(cd/m2)	400
Video	1 video out, 1 video in
POWER SUPPLY	DC 12V in/out
POWER CONSUMPTION	6W+2W
Menu language	English/Chinese/French(totally 9)
External port	Video/power input & output
WORKING TEMPERATURE(°C)	-10--+50 °C
STORAGE TEMPERATURE(°C)	20 – +60°C
POWER CONSUMPTION	CCD 2.5W
SYSTEM	PAL/NTSC
Night vision	Effective distance 0.5-3 meters
Lights	12pcs white LED
LENS	3.6MM(OPTIONAL)
VIEWING ANGLE(°)	92°(OPTIONAL)
Image Sensor	COLOR SONY CCD
PIXEL	NTSC:510*492  PAL:500*582
MINIMAL ILLUMINATION	1.0LUX
DISPLAY TEMPERATURE(°C)	-50--200 °C

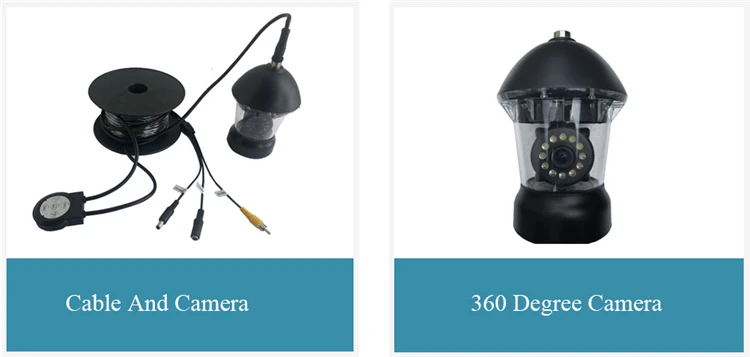

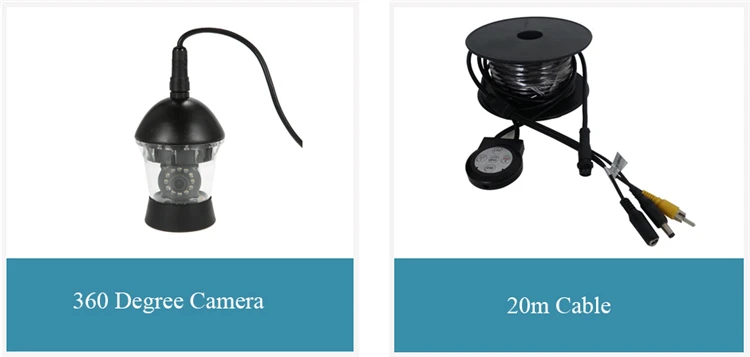

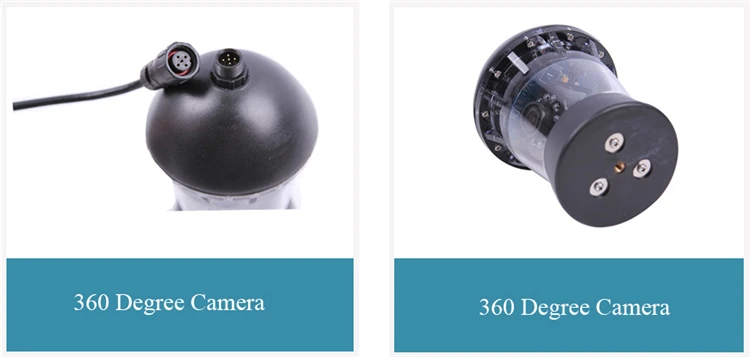

CIRCUMGYRATE	0°-360°
VIDEO OUTPUT	1.0VP-P 75Ω
HORIZONTAL RESOLUTION	420 TV LINES
S/N RATIO	≥48dB
Measurable temperature	-40°C - +80°C (accuracy: +/- 2°C)
Measurable depth	MAX:50m
Panning Speed	S: 3º/s,  SS:6.4º/s,  SSS:11.6º/s
G.W.(KG)	7.0kg

































 Our company is committed to the development of this field for many years, with advanced technology and talents. To provide customers with the most satisfactory product quality and thoughtful service. We hope to develop together with you hand in hand. All customers both at home and abroad are warmly welcome to visit our company, your satisfaction.



Our Service:

1. Your inquiry related to our products or prices will be replied in 24hrs.

2. Well-trained and experienced staffs to answer all your enquires in fluent English.

3. We can design and print packing box according to your requirements.

4. We can put your logo & model No. & series No. on the products and packing Box.

Delivery:

     Based on the customer’s demands to choose the most economical shipping terms Suggest, For sample order ship by Express, for mass order shipping by Air Cargo or By Sea We have strong cooperation with DHL,UPS,TNT,FEDEX,EMS.
