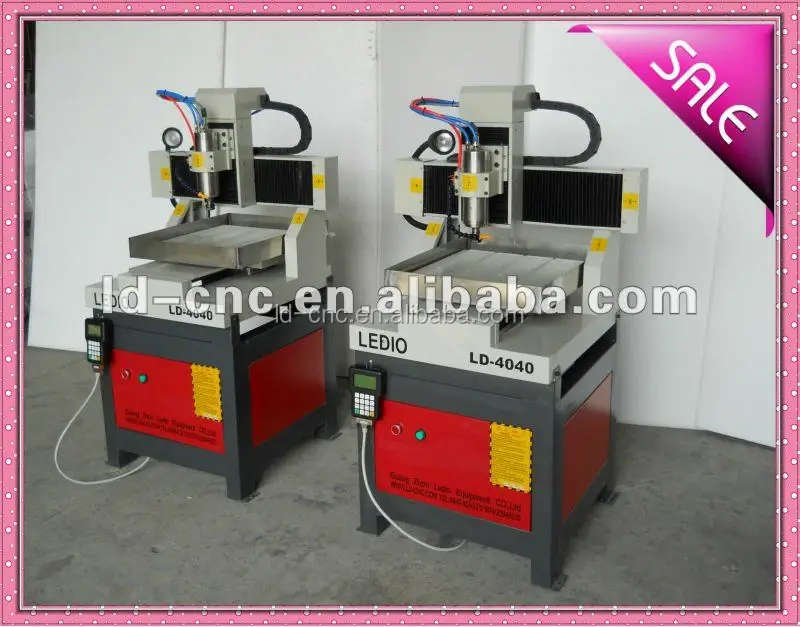

LD 4040 small engraving machine







Scope of application

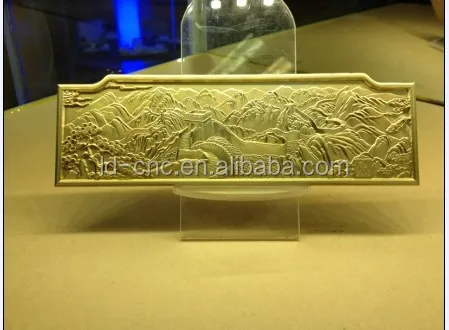

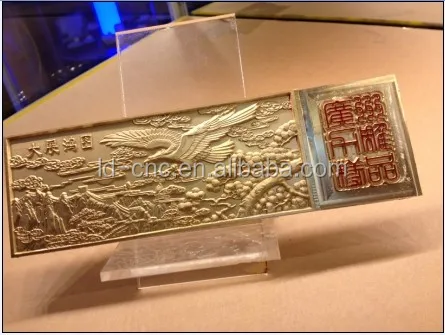

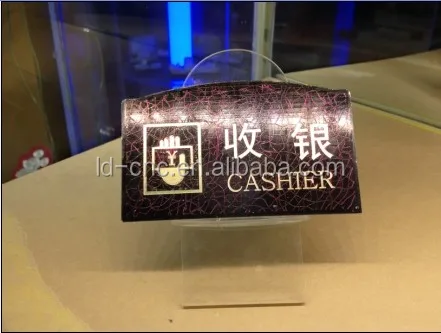

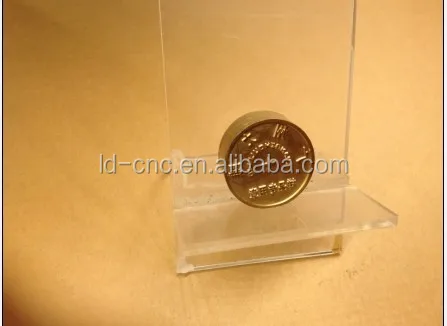

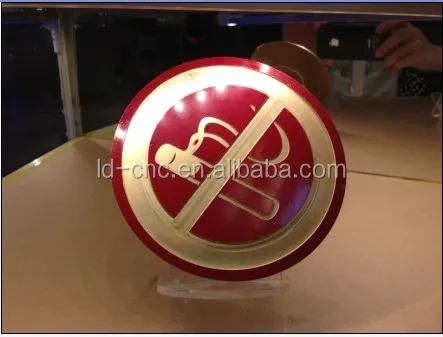

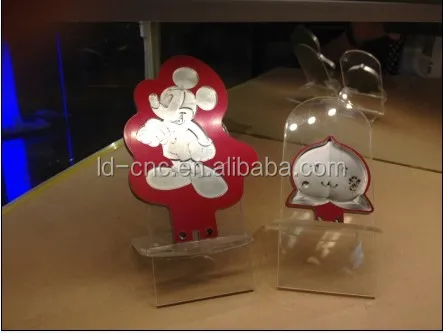

Widely used in advertising,woodwork processing line,arts and crafts line,metalwork line,can process double-colur board,pvc borad,mould forming,board,copper,aluminum,fireproofing board and so on.



Features of the machine

1.The gantry done with 20mm rectangle square steel through secondary quenching,

    large working load.the whole structure through profeesional standard emended,

    can use several decades.the three axis  asopted  imported straight-quadrate rail.

2.use high accurate pinion and rack transmission.the max sped is 18m/min.

   it can clearly engraving the 3mm small word.

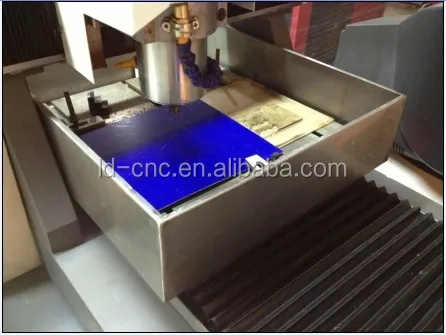

3.intelligent protection for working table that can prevent misuse or software errors from damaging

   the surface.its protection of step beyond the boundary avoids crashing while design area beyond

   processing area.

4.acvanced industrial controlling system is compatible to many dictate formats

   that can operate after accident or next day processing so it is very convenient.



Parameters

model	LD4040 small metal Engraving & cutting machine
Table Size	500mmx500mm
Working Area (X*Y)	400x400mm
Feeding Height	80mm
spindle power	1.5KW
voltage	AC220V/50Hz
Resolution	0.01mm
Max Moving Speed	6000mm/min
Spindle Speed	6000-24000rpm/min
Tool Diameter	¢3.175 , ¢4 , ¢6
Work mode	Stepping ( square linear guide with ball screw )
Working Dictate	HPGL, G Code*.u00*.mmg*.plt
Software operating environment	Windows98/2000/XP
Pack size	110*122*142cm
Gross Weight	230KG
