Высокоэффективный настенный Цифровой Постоянный газовый котел

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Technical Data:

		Unit	L1P16/18/20-B(H)	L1P24/24-B(H)	L1P35/40-B(H)
Rated Thermal Load		KW	16/18/20	24/28	35/40
Rated output power		KW	14.4/16.5/18	20.7/25.5	31.5/36
Efficiency at rated thermal load		%	>90
Rated input electric power		W	110		140
Power supply		/	a.c220/50Hz
Noise under normal working conditions		dB	<42
Boiler Net weight		kg	32/33	34/35	39/40
Boiler size(HWTH)		mm	700400305	700400305	752462322
Gas Type & Rated Pressure	(Y)LPG	Pa	2800
	(T) NG	Pa	2000
	(R) Town Gas	Pa	1000
Heating System	Range of heating out put power	KW	4.3-14.4/4.9-16.2/5.4~18	6.2-20.7/7.6-25.2	9.5-31.5/12-36
	Range of water temperature	℃	30~80
	Heating area	Sq.m	80/100/120	140/180	300/350
	Range of water pressure	bar	0.8~3
	Release pressure of safety valve	bar	3
	Lift of pump	m	5		6
	Expansion vessel capacity	L	6		10
Hot water system	Range of output power	KW	4.3-14.4/4.9-16.2/5.4~18	6.2-20.7/7.6-25.2	9.5-31.5/12-36
	Range of water temperature	℃	30~60
	Rated capacity of hot water (Δt=30K)	L/min	6.5/7.5/8.2	10/11.5	14.5/16.5
	Range of water pressure	bar	0.3~8
Fitting Dimension	Inlet/outlet pipe diameter of heating	Inch	G3/4
	Inlet/outlet pipe diameter of hot water	Inch	G1/2
	Input diameter of g	Inch	G3/4
Smoke vent Dimension	Coaxial pipe	mm	ø60-ø90	ø60-ø100	ø60-ø110

QQ20220531133301 QQ20220531133250 QQ20220531133545 $XAW_}M)~]F4{S%VH]~YG{6K$ _20220531171107

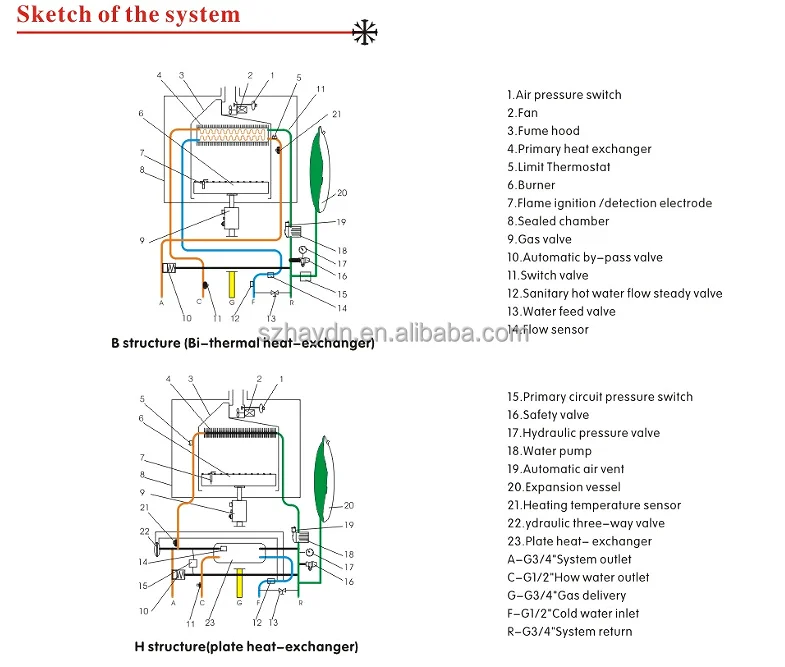

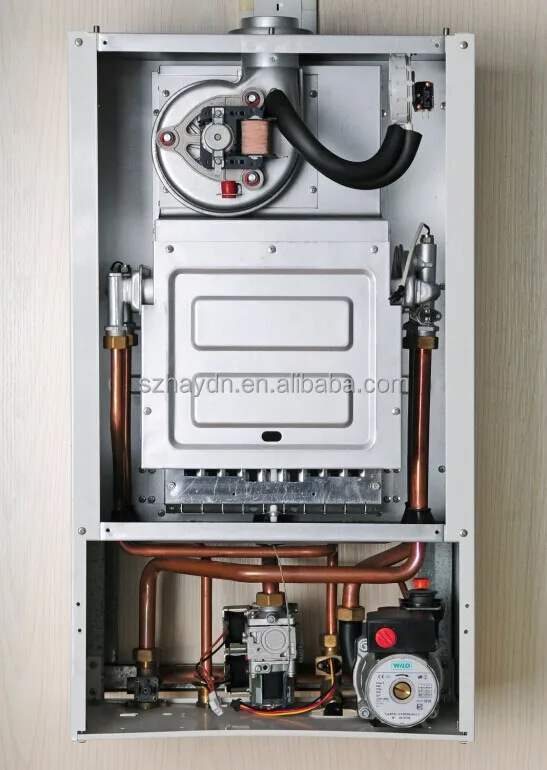

Inner frame of H model:

H model

Inner frame of B model:

B Model

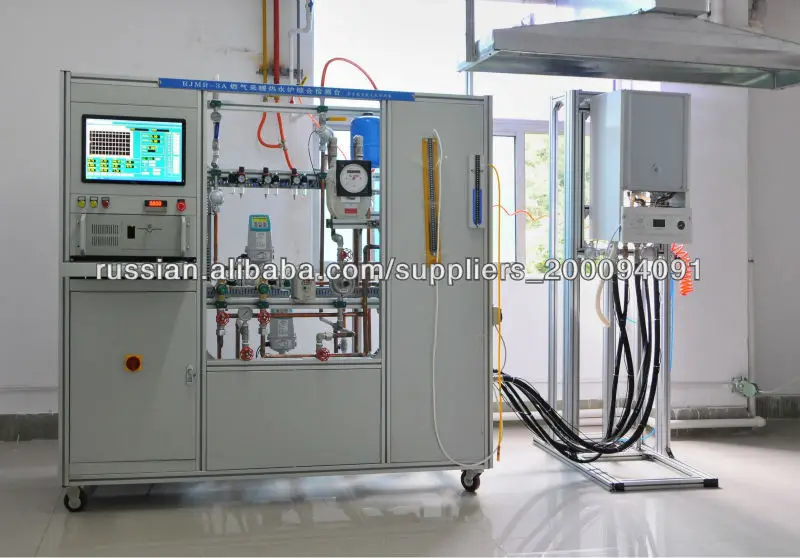

Test systems:

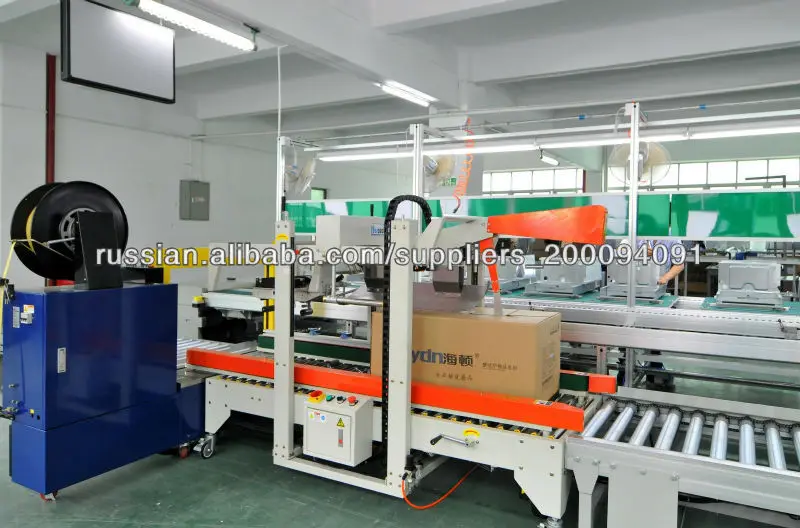

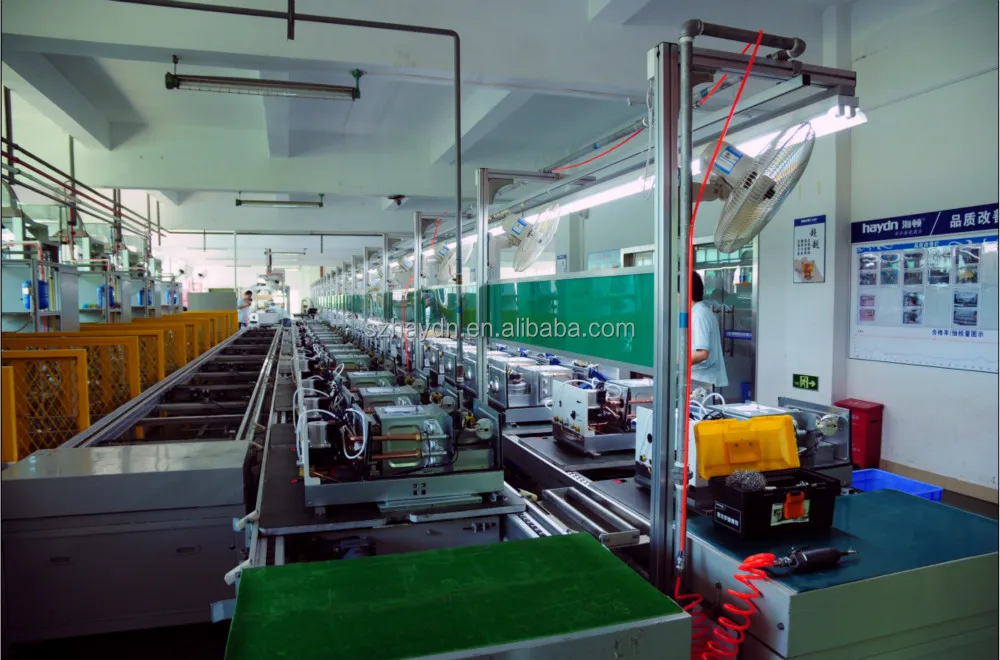

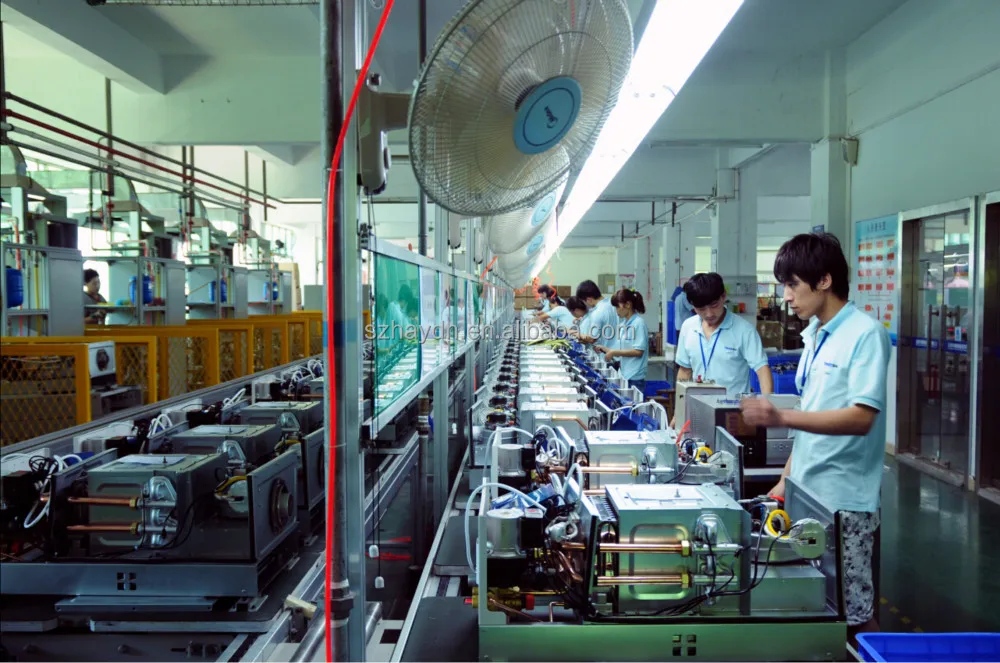

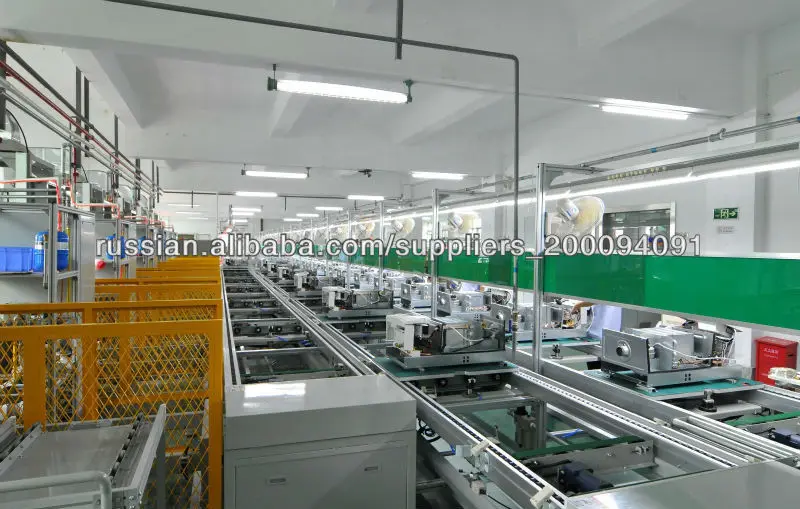

Production lines:

Contact details:

Ms grace lee

Whatsapp: +86 18566290413

wechat:648612091
